Waterproof Test Chamber

Waterproof Test Chamber

The Waterproof Test Equipment is designed to simulate natural rainfall and strong water flow environments, comprehensively evaluating the waterproof enclosure performance (IPX1-IPX9K) of electronic products, automotive lighting, and outdoor equipment. It realistically reproduces various complex rain conditions, providing a scientific basis for structural optimization, quality inspection, and reliability verification.


Key Specifications

  • Temperature Range: Configurable per model and test requirements.

  • Chamber Volume: Multiple sizes for different samples and capacities.

  • Controller: User-friendly system for stable and precise operation.

  • Power Supply: Standard or customized to local electrical standards.

WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Product Details
  • Technical Specifications
  • Key Advantages
  • Applications
  • FAQs

The waterproof test chamber from Haifuwei simulates natural rainfall and powerful water jets to verify the enclosure protection (IPX1–IPX9K) of electronic products, automotive lighting, and outdoor equipment. Three models (LX-400, LX-500, LX-600) with spray arm radii from R400 to R600 mm cover everything from dripping water to high-pressure, high-temperature jetting.


Inside the chamber, a Ø0.4 mm nozzle array, adjustable swing angles (±60°, ±90°, ±180°), and a stepless rotating test table reproduce complex real-world rain conditions with uniform water distribution.


A programmable touch-screen controller with RS232/485 communication manages every test parameter, while the stainless steel frame supports a service life beyond 8 years. Whether you validate consumer devices or vehicle components, a waterproof test chamber from Haifuwei delivers objective IP-grade evidence — with custom sizes, one-year warranty, and remote technical support.


Product Details

内部图

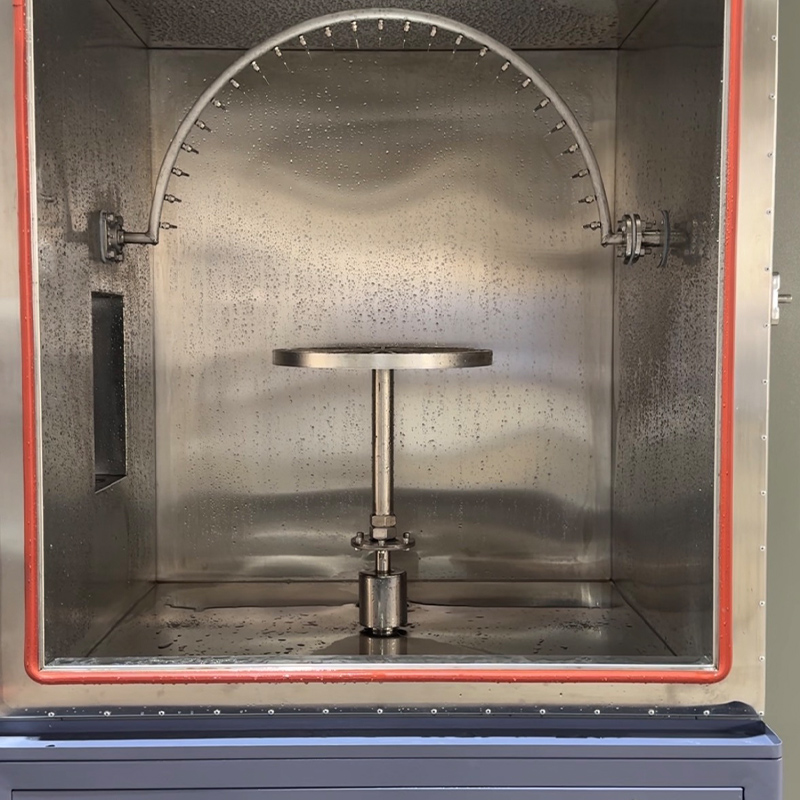

Interior View

仪表图

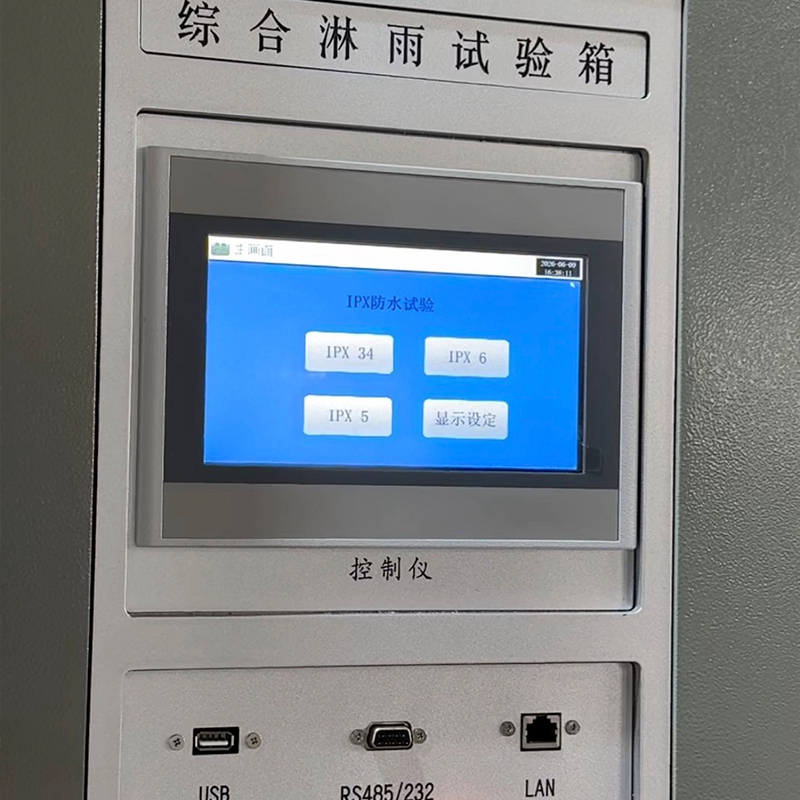

Instrument Panel View

综合淋雨正面

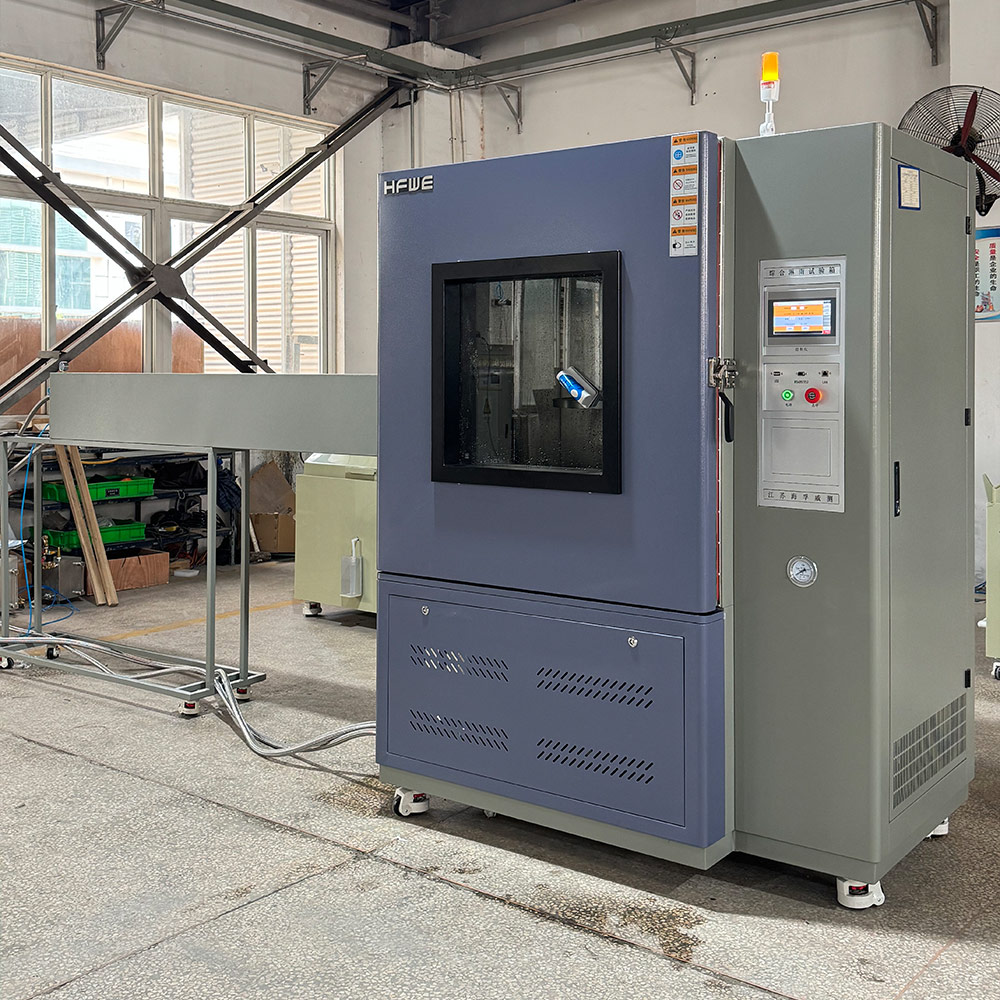

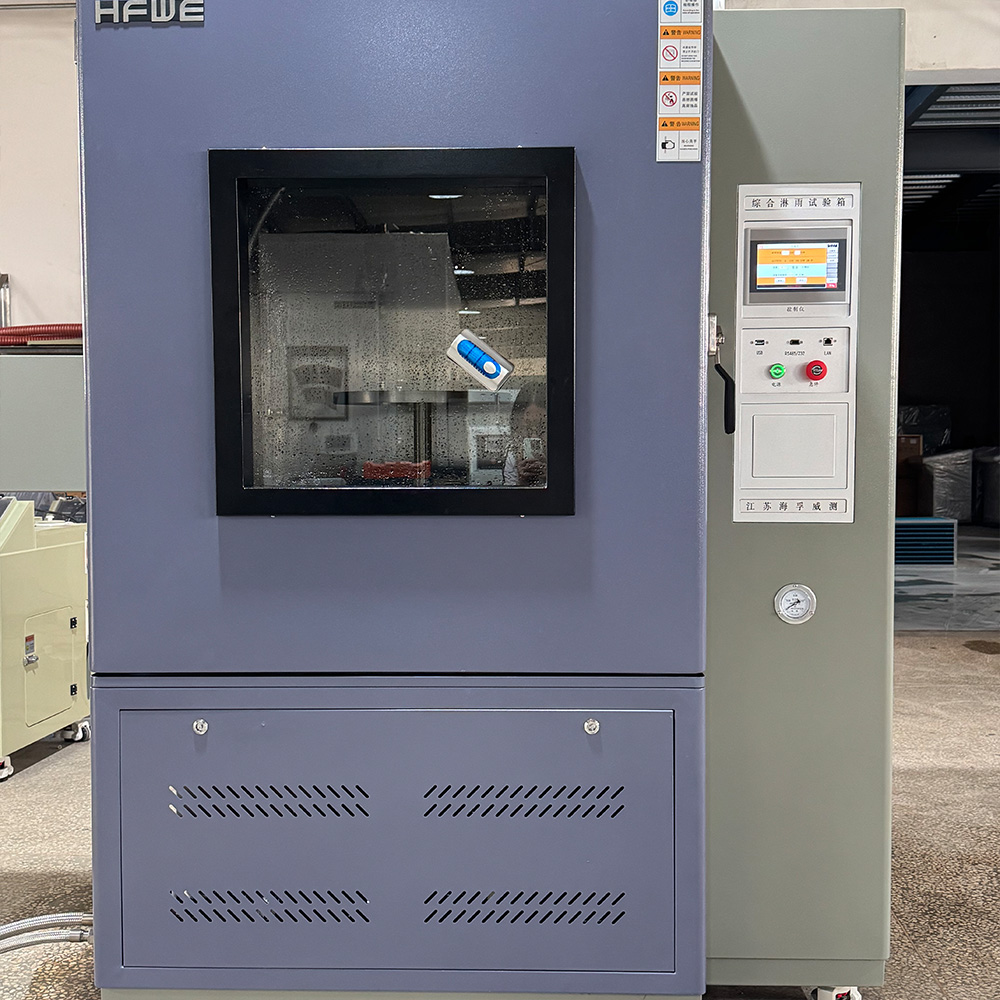

Front View (Combined Rain Test Setup)

Technical Specifications

ModelLX-400LX-500LX-600
Inner Chamber Size D×W×H900×1000×9001020×1200×10001300×1400×1300
Overall Dimension D×W×H1120×1550×17301240×1750×18301450×1900×2150
Performance IndexWater Spray Arm RadiusR400mmR500mmR600mm
Water Pipe DiameterØ15mm
Nozzle Hole DiameterØ0.4mm
Hole Spacing50mm
Swing Arm Swing Angle±60°, ±90°, ±180° (Theoretical Value)
Test Table Rotation Speed1r/min, stepless speed regulation (Optional)
Operation Control SystemControllerProgrammable touch screen with Chinese dialogue display, microcomputer integrated controller, equipped with RS232/485 remote communication
Water Pressure ControlFlow Meter
Swing Arm Angle & Speed ControlThe swing angle and swing speed can be arbitrarily adjusted on the instrument
Observation WindowLarge-area visible tempered glass door
Water Supply SystemWater storage tank, booster pump
Safety ProtectionLeakage, short circuit, motor overheat protection

Product Features

  • Safety1.png

    Full IPX Rating Coverage

    This waterproof test chamber reproduces rain intensities across the IPX1–IPX9K range defined by IEC 60529, so drip, spray, splashing, immersion-level, and high-pressure jet tests are all completed on one machine.
  • Temperature-Control.png

    Adjustable Swing Arm System

    The oscillating spray arm swings through ±60°, ±90°, or ±180° at freely adjustable speed, letting the waterproof test chamber simulate wind-driven rain, vehicle washing, and directional splashing instead of a single fixed water angle.
  • Durable-Structure.png

    Precision Nozzle Array Design

    Ø0.4 mm nozzle holes spaced at 50 mm intervals along the arm, monitored by a flow meter, produce evenly distributed water coverage — so every waterproof test chamber run applies the same reproducible rain intensity to the sample.
  • Easy-Operation.png

    Stepless Rotating Test Table

    The rotary test table turns at a steplessly adjustable speed around 1 r/min, exposing every face of the sample to the water spray and eliminating manual re-mounting between waterproof test chamber test sequences.
  • Support-Customization.png

    Programmable Touch-Screen Control

    A Chinese-dialogue programmable touch screen stores complete test profiles and supports RS232/485 remote communication, while leakage, short-circuit, and motor-overheat protections keep the waterproof test chamber safe through long unattended programs.

Configuration Options

Standard Configuration
  • Standard Controller:

    Standard configuration includes a practical controller for daily testing operation.

  • Standard Observation Window:

    Observation window is available on selected models for convenient monitoring.

  • Standard Test Port:

    Test port can be included for cable routing or sample monitoring when required.

Optional Configuration
  • Data Logger:

    Optional data logging is available for test data recording and management.

  • Communication Port:

    Communication interface can be added for data transfer or remote integration.

  • Special Material:

    Special chamber material can be selected based on test media or corrosion requirements.

  • Customized Size:

    Chamber dimensions can be customized for different sample sizes and capacities.

  • Non-standard Design:

    Non-standard structure design is available for special testing applications.

Applications


Automotive Lighting ManufacturersHeadlamps, taillights, and signal lamps must seal perfectly against rain and car wash jets; a waterproof test chamber provides the IP-grade verification that vehicle lighting suppliers need for design validation and batch release.


Outdoor Security & Smart DevicesIP cameras, video doorbells, and outdoor sensors work through storms and sprinkler spray. Testing in a waterproof test chamber confirms their gaskets, cable glands, and housing seams keep water out over years of exposure.


Telecom Base Station EquipmentAntennas, outdoor units, and 5G cabinet hardware installed on rooftops and towers face wind-driven rain from every direction; the rotating table and swing arm of this waterproof test chamber reproduce those conditions accurately.


Electrical Enclosures & Outdoor CabinetsDistribution boxes, junction enclosures, and control cabinets carrying IP55 or IP66 ratings are verified in a waterproof test chamber before certification, protecting downstream electrical safety and brand reputation.


Wearables & Consumer GadgetsSmart watches, Bluetooth speakers, electric toothbrushes, and e-bike displays are splash-proof by design; a waterproof test chamber validates that each production batch still meets its advertised IP rating.

FAQs- Waterproof Test Chamber

Q
How long is the service life of your waterproof test chamber?
A
The main frame of this waterproof test chamber adopts stainless steel structure. With regular cleaning and maintenance of pipelines and nozzles, its normal service life can reach more than 8 years under proper operation.
Q
What after-sales service do you provide for the waterproof test chamber?
A
We supply one-year warranty for the waterproof test chamber. Our technical team offers remote guidance for installation, operation and troubleshooting, and we also provide spare parts supply at reasonable prices.
Q
Can you customize the size of the waterproof test chamber?
A
Yes, we support customized waterproof test chamber sizes. Tell us your product dimensions, test standards and workshop layout, and our engineering team will provide a suitable custom solution for you.
