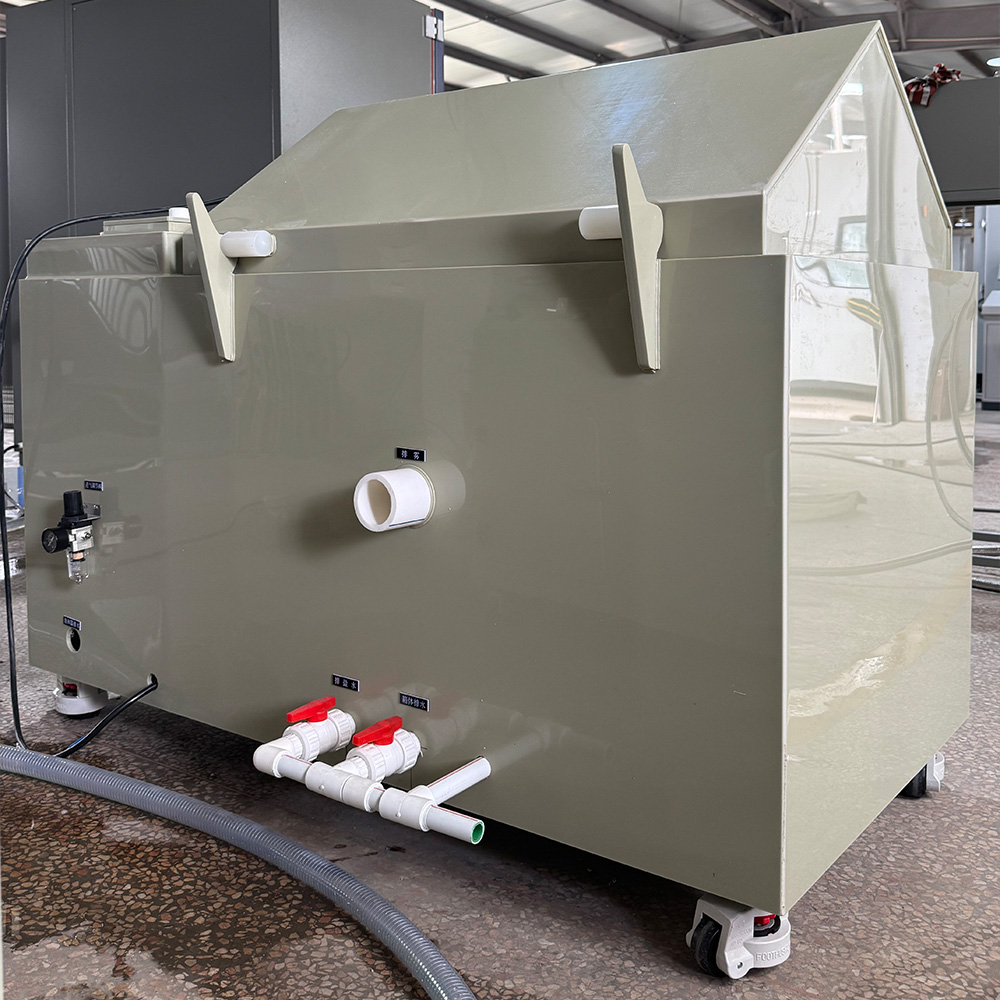

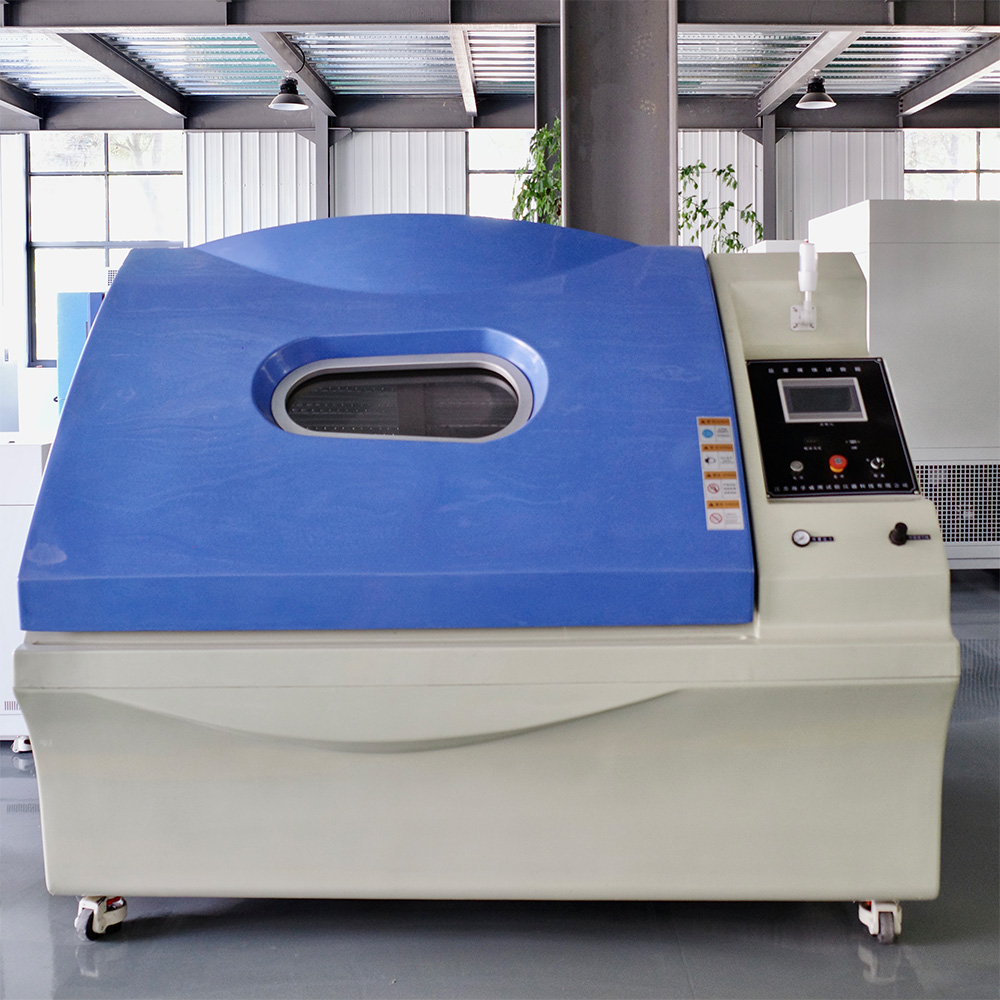

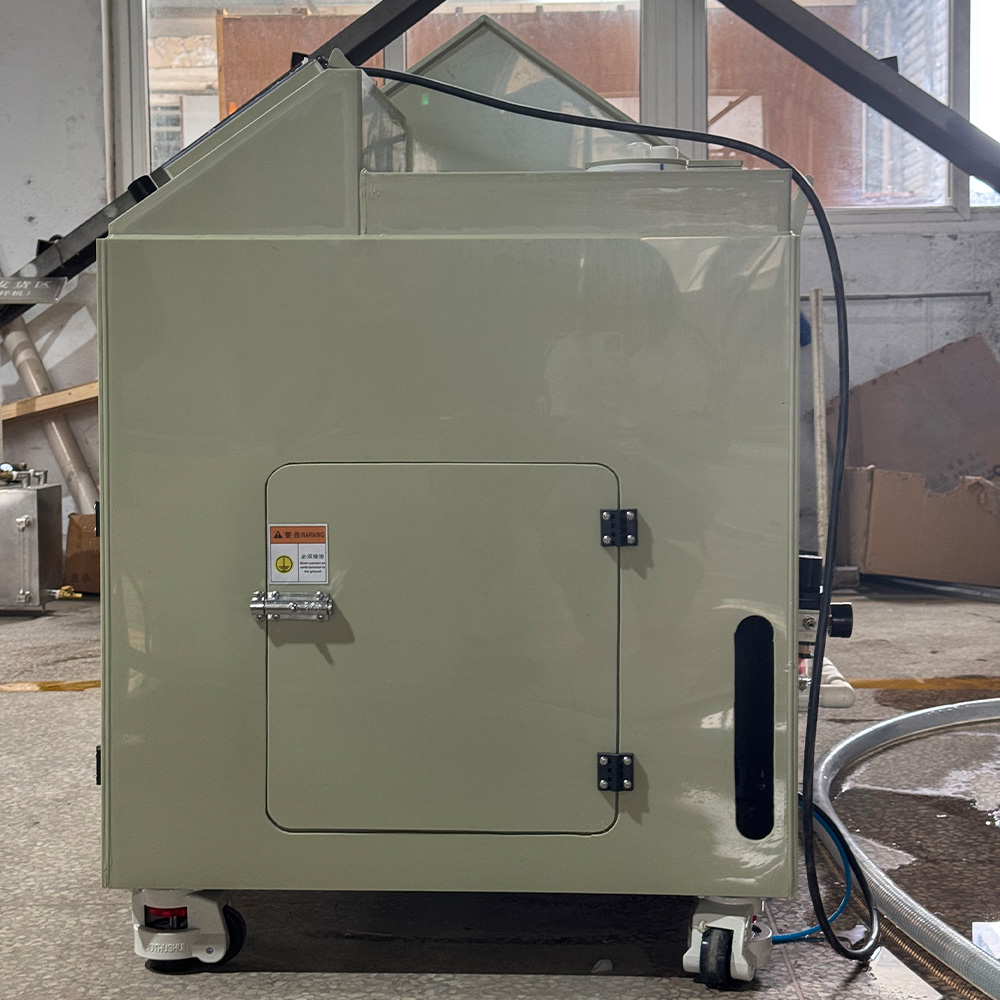

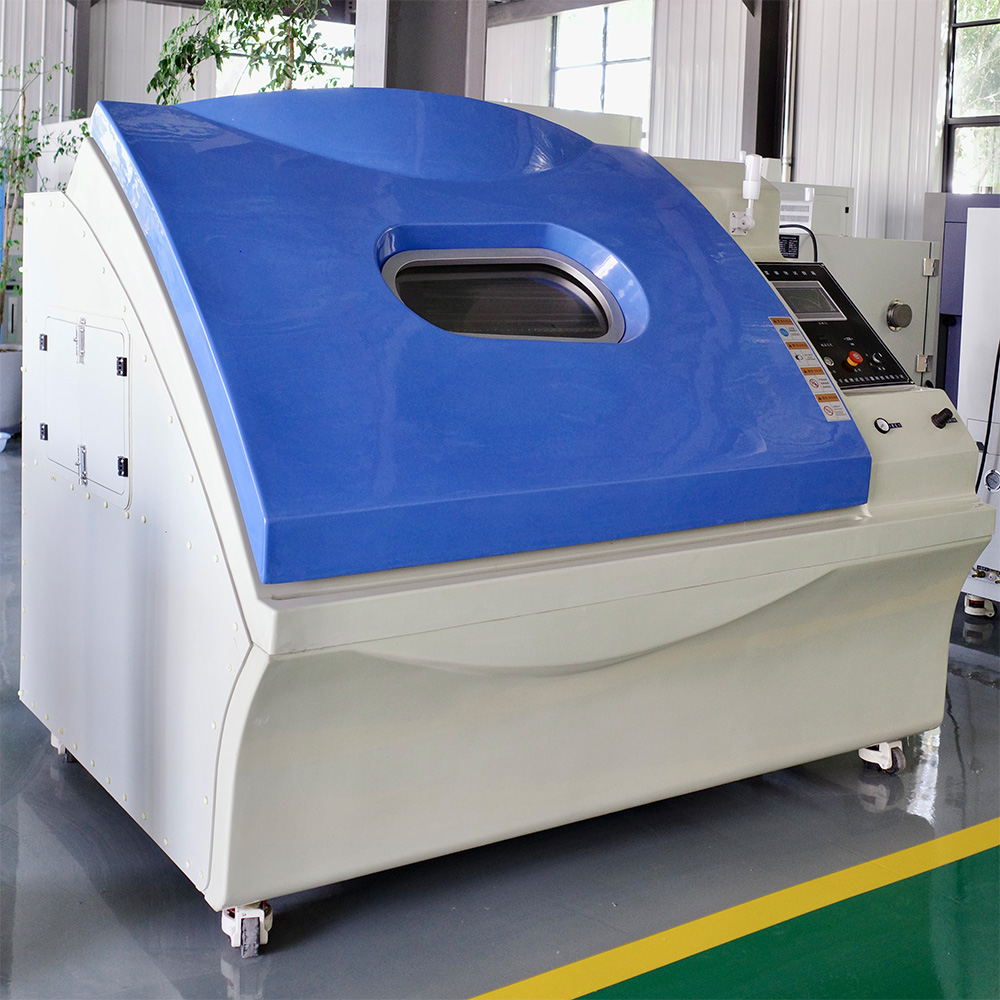

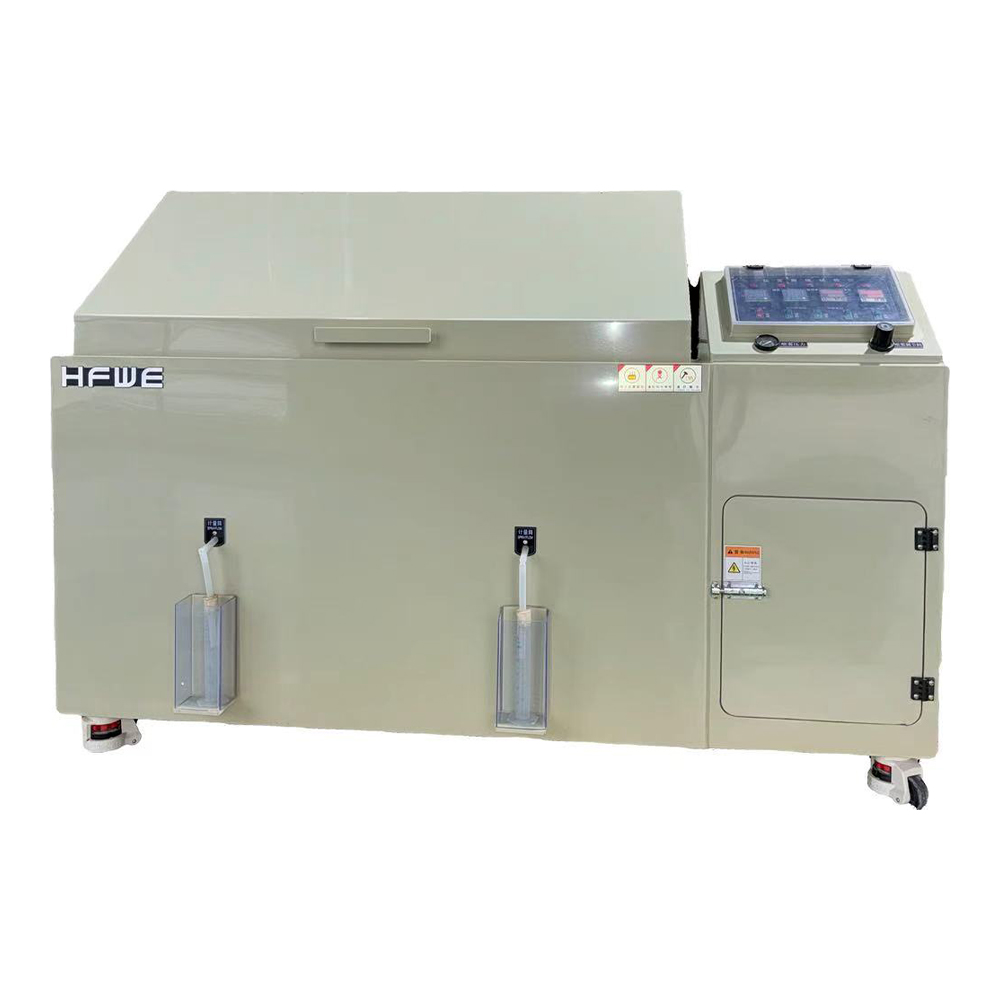

CASS Test Chamber

CASS Test Chamber

The CASS Test Chamber simulates marine or salt-laden atmospheric environments to evaluate the corrosion resistance of metal materials, electronic components, and surface coatings (such as electroplating and paint). It precisely controls constant salt spray concentration, temperature, and humidity within a sealed enclosure to accelerate sample aging, providing reliable evidence for R&D in protective processes, quality control, and lifespan prediction.


Key Specifications

  • Temperature Range: Configurable per model and test requirements.

  • Chamber Volume: Multiple sizes for different samples and capacities.

  • Controller: User-friendly system for stable and precise operation.

  • Power Supply: Standard or customized to local electrical standards.

WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Product Details
  • Technical Specifications
  • Key Advantages
  • Applications
  • FAQs

The CASS test chamber from Haifuwei performs copper-accelerated acetic acid salt spray testing in accordance with ASTM B368, offering a far more aggressive and faster corrosion evaluation than neutral salt spray methods. By adding copper chloride to the acidified salt solution, the test sharply accelerates corrosion of electroplated, anodized, and painted surfaces — producing meaningful results in hours instead of weeks.


Inside the sealed enclosure, this CASS test chamber precisely controls salt spray concentration, temperature (ambient +5℃ to 55℃), and deposition rate (1–2 ml/80cm²·h), with a tower spray device and non-crystallizing nozzles ensuring uniform mist distribution. The anti-acid PP inner chamber reliably withstands acetic acid and copper chloride solutions throughout long test cycles.


Six models from 150 L to 2000 L support continuous or cyclic spray with fully adjustable timing. Whether you are qualifying decorative plating, screening anodized parts, or running batch quality control, a CASS test chamber from Haifuwei gives your laboratory fast, repeatable, standards-based corrosion data — backed by customization options and responsive after-sales support.


Product Details

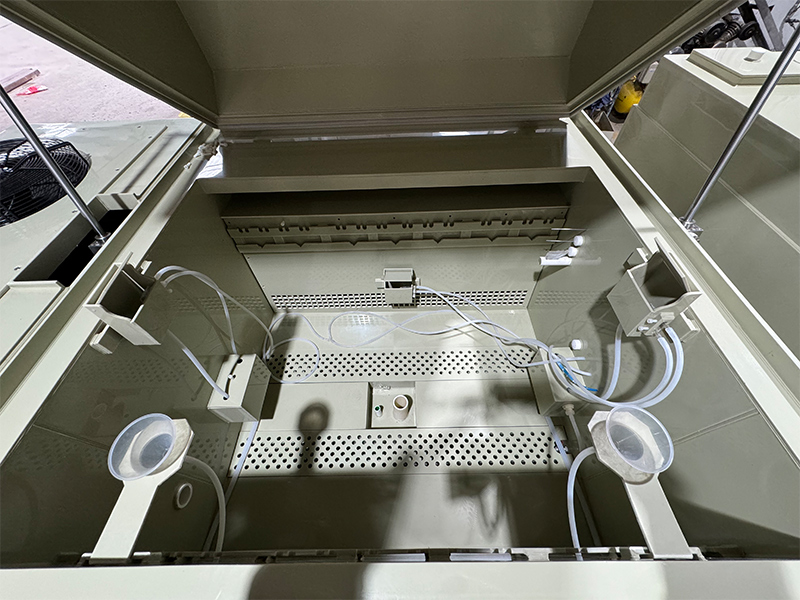

壁挂式喷雾箱体内部图

Interior View of Wall-Mounted Spray Chamber

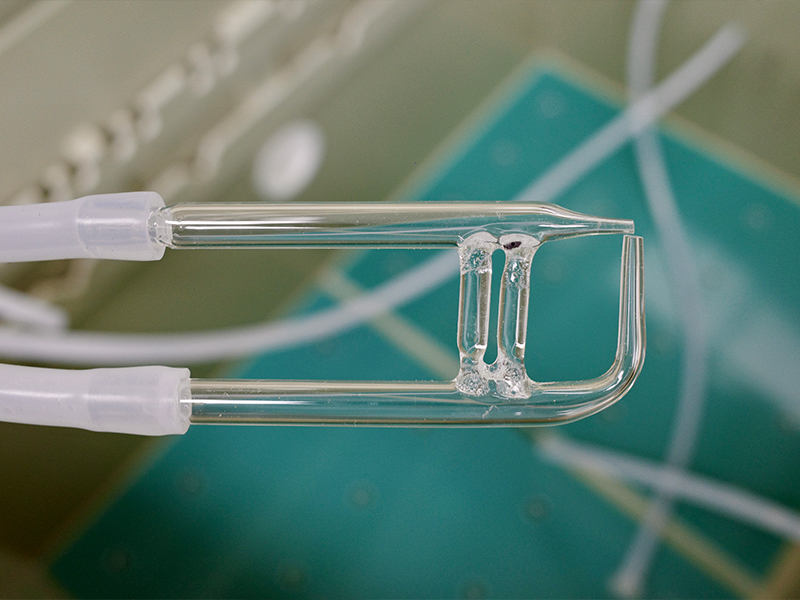

喷嘴

Nozzle

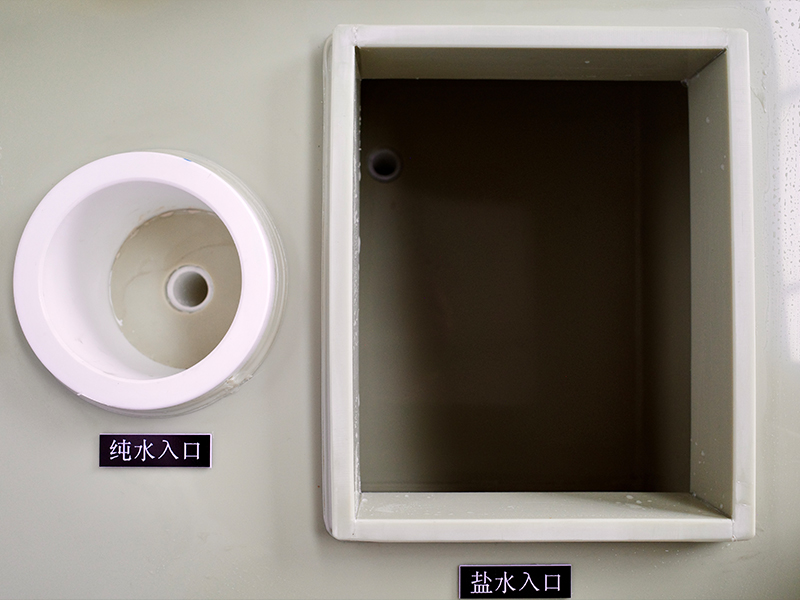

水入口

Water Inlet

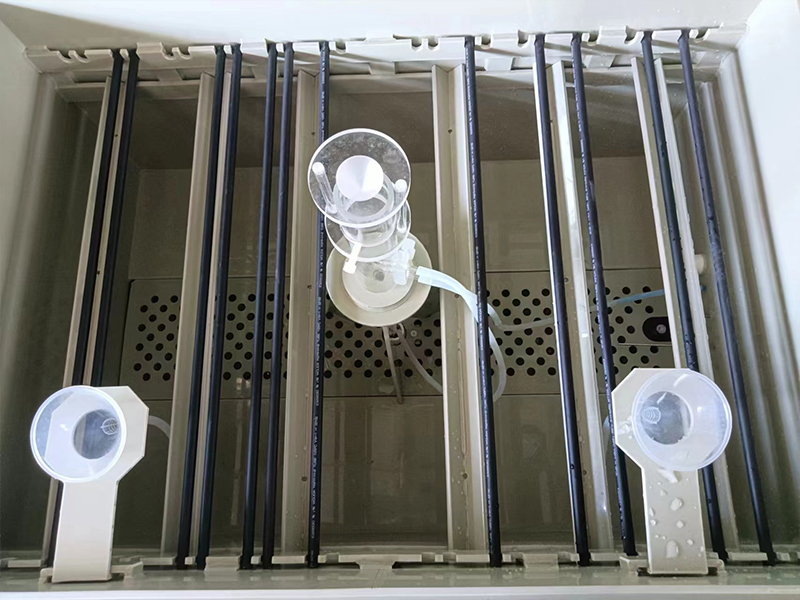

塔式喷雾箱体内部图

Interior View of Tower-Style Spray Chamber

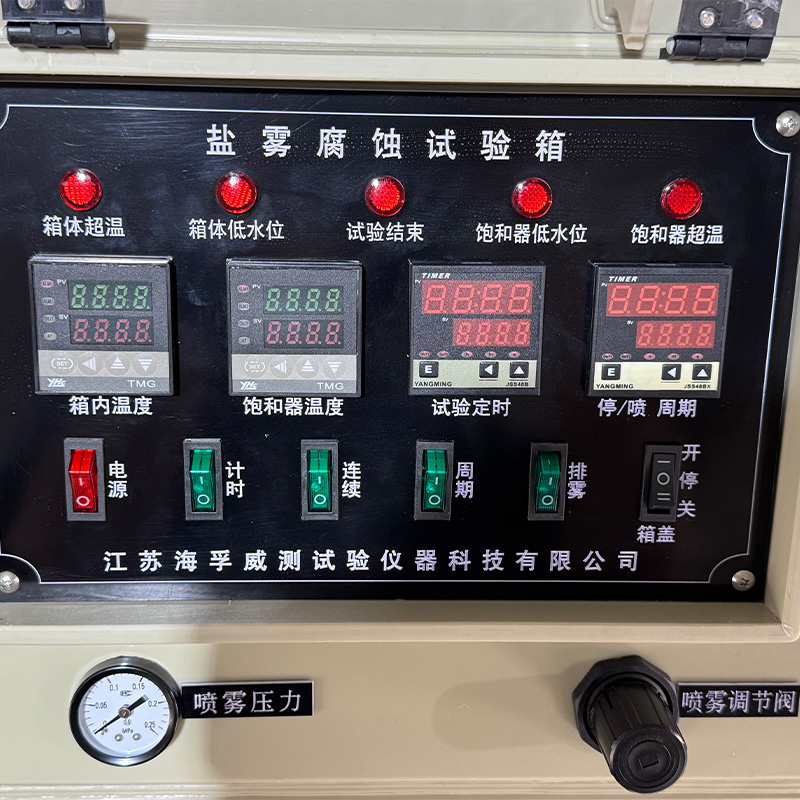

按键式仪表

Push-Button Control Panel

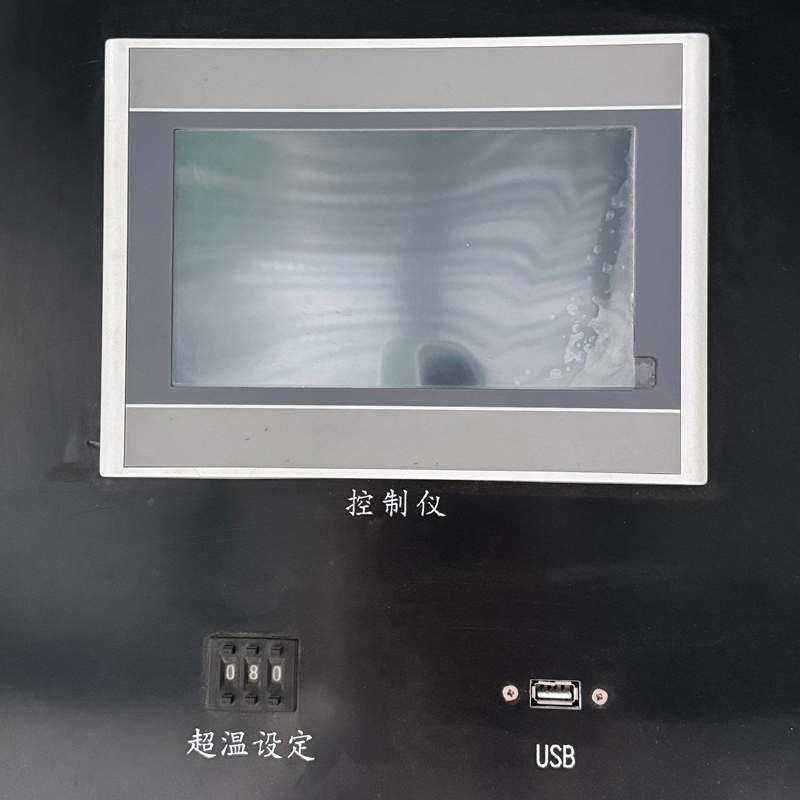

触摸屏仪表

Touch-Screen Control Panel

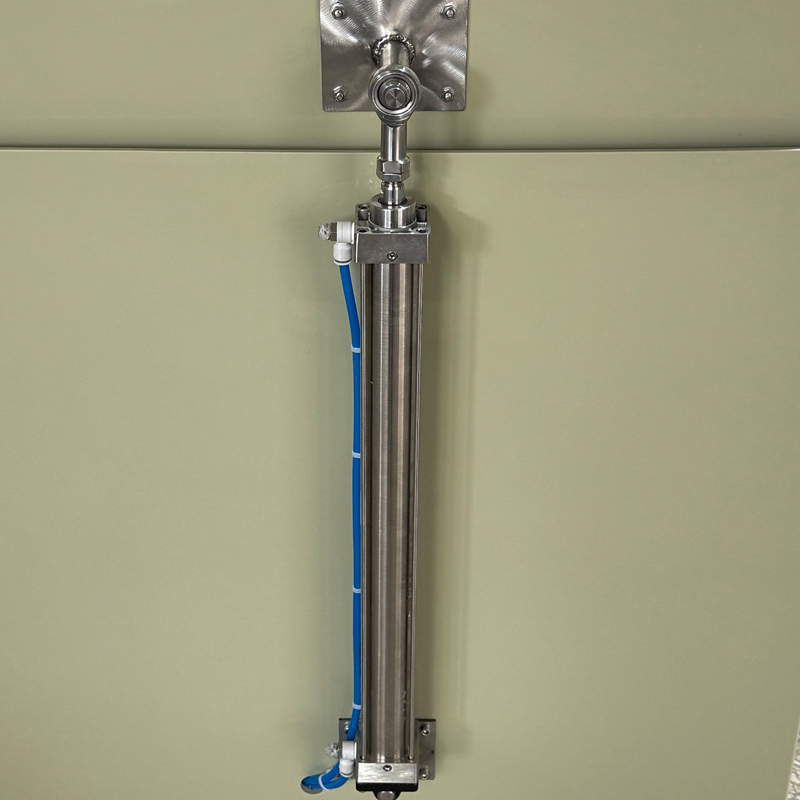

气缸(010以上型号配备)

Pneumatic Cylinder (Equipped On Models 010 and Above)

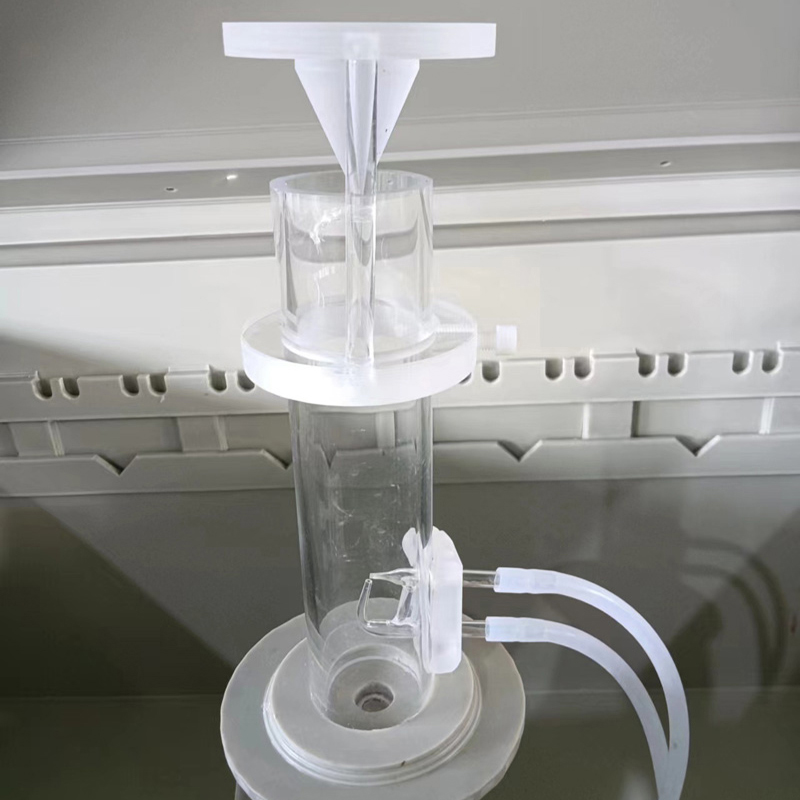

塔式喷雾

Tower-Style Spray

Technical Specifications

ModelYWX/Q-150(B)YWX/Q-250(B)YWX/Q-750(B)YWX/Q-010(B)YWX/Q-016(B)YWX/Q-020(B)
Inner Chamber Size D×W×H450×600×400600×900×500750×1100×500850×1300×600850×1600×600900×2000×600
Overall Dimension D×W×H700×1070×1050870×1400×11501030×1680×12601160×2000×13901210×2200×14401260×2600×1490
Performance IndexTemperature RangeAmbient Temp.+5℃ ~ 55℃
Temperature Deviation≤±2℃
Temperature Fluctuation≤±0.5℃
Salt Spray Sedimentation Rate1~2ml/80cm²·h
Spray ModeContinuous / Cycle Optional
Test Timer1~999 (S, M, H) Adjustable
Temperature & Humidity Control SystemTemperature ControllerLED Digital P.I.D+S.S.R Microcomputer Integrated Controller or Color Touch Screen Controller
Temperature & Humidity SensorPlatinum Resistance PT100Ω/MV
Heating SystemIndependent System, Nickel-Chromium Alloy Electric Heater
Spray SystemTower Spray Device with Non-Crystallizing Nozzle (Finer mist & uniform distribution)
Spray Duration1~99 (S, M, H) Cycle Adjustable
Salt Solution CollectionEquipped with Standard Funnel & Graduated Cylinder
Outer Chamber MaterialImported Anti-Corrosion, High-Strength, High-Temperature Resistant PP Plate
Inner Chamber MaterialImported Anti-Corrosion, High-Strength, High-Temperature Resistant PP Plate
Cover MaterialImported Anti-Corrosion High-Strength Transparent PVC Plate / Imported Anti-Corrosion High-Temp Resistant PP Plate
Other AccessoriesAll stainless steel, copper or anti-corrosion & high-temperature resistant materials
Standard Accessories1 set of round bar & V-type sample rack, 2 spray nozzles, funnel, 2 sets graduated cylinders
Safety ProtectionLeakage, Short Circuit, Overheat, Water Shortage, Test Completion, Overcurrent Protection / Power-off Memory for Controller
Power SupplyAC220V±10% 50HZAC380V±10% 50HZ
Ambient Operating Condition5℃ ~ +30℃, ≤85% RH
Optional Chamber Materials1. PP Plastic Plate; 2. FRP (Fiberglass Reinforced Plastic); 3. 2507 Anti-Corrosion Stainless Steel Plate

Product Features

  • Safety1.png

    ASTM B368 Standard Compliance

    This CASS test chamber runs the copper-accelerated acetic acid salt spray test defined by ASTM B368, using an acidified sodium chloride solution with added copper chloride to simulate and intensify the corrosion behavior of decorative and protective finishes.
  • Temperature-Control.png

    Rapid Corrosion Screening Capability

    Because CASS conditions are significantly more aggressive than neutral salt spray, the CASS test chamber exposes plating defects, porosity, and weak passivation layers within a single working day — ideal for fast incoming inspection and production-line quality decisions.
  • Durable-Structure.png

    Anti-Acid PP Inner Chamber

    The inner tank is made of thick anti-acid PP plate that resists corrosion from acetic acid and copper chloride solutions, preventing leakage and deformation through long continuous CASS test cycles and extending the chamber's service life.
  • Easy-Operation.png

    Precise Deposition Rate Control

    A tower spray system with non-crystallizing nozzles maintains a uniform 1–2 ml/80cm²·h sedimentation rate, while the standard funnel and graduated cylinders let operators verify collection volume and confirm that each CASS test chamber run stays within specification.
  • Support-Customization.png

    Simple Routine Maintenance Design

    Drain and rinse the solution tank after each test; nozzles and collectors are easily accessible for regular cleaning, and air pressure and solution pH are simple to check — keeping the CASS test chamber ready for the next cycle with minimal downtime.

Configuration Options

Standard Configuration
  • Standard Controller:

    Standard configuration includes a practical controller for daily testing operation.

  • Standard Observation Window:

    Observation window is available on selected models for convenient monitoring.

Optional Configuration
  • Data Logger:

    Optional data logging is available for test data recording and management.

  • Communication Port:

    Communication interface can be added for data transfer or remote integration.

  • Special Material:

    Special chamber material can be selected based on test media or corrosion requirements.

  • Customized Size:

    Chamber dimensions can be customized for different sample sizes and capacities.

  • Non-standard Design:

    Non-standard structure design is available for special testing applications.

Applications


Electroplating & Plating Plants

Decorative nickel-chrome, zinc, and copper plating lines use the CASS test chamber to grade plating quality, detect pinholes and bare spots, and verify that bath parameters deliver the required corrosion protection before shipment.


Hardware & Sanitary WareFaucets, door handles, locks, hinges, and bathroom fittings with bright plated finishes are judged by CASS testing, as the method closely predicts how decorative surfaces will tarnish or rust in real service.


Anodized Aluminum ProductsWindow and curtain-wall profiles, camera housings, and consumer electronics shells rely on this CASS test chamber to verify anodic film thickness and sealing quality against accelerated corrosive attack.


Automotive Trim & FastenersBright trim, badges, plated fasteners, and coated interior hardware for vehicles are screened in the CASS test chamber, where rapid cycle times suit high-frequency sampling in automotive supply chains.


Inspection Agencies & Coating SuppliersThird-party inspection companies, plating chemical suppliers, and contract laboratories apply ASTM B368 methods in this CASS test chamber to issue test reports, benchmark new passivation or sealing chemistries, and settle quality disputes with objective data.

FAQs- CASS Test Chamber

Q
What regular maintenance does a CASS test chamber require?
A
Drain and rinse the tank after each test. Clean spray nozzles and collectors regularly, check air pressure and solution pH. Routine maintenance helps avoid blockage and keeps test results consistent.
Q
What material is the inner tank of your CASS test chamber made of?
A
The inner chamber is constructed from thick anti-acid PP material. It resists corrosion from acetic acid and copper chloride solution, preventing leakage and extending service life under long continuous CASS test cycles.
Q
What is a CASS test chamber used for?
A
Our CASS test chamber performs copper-accelerated acetic acid salt spray tests per ASTM B368. It quickly checks corrosion resistance of electroplated, coated and anodized parts for hardware, auto and decorative surface finishes.
