The industrial oven for electronics is specially designed to meet the strict thermal processing requirements of electronic components. It provides stable, uniform temperature control, supporting common processes such as PCB curing, adhesive drying, component preheating and moisture removal. With well-insulated chamber and precise temperature sensors, this equipment minimizes temperature deviation to prevent damage to delicate electronic parts during heating.Built with durable stainless steel inner cavity, the industrial oven for electronics features adjustable ventilation systems and safety interlock functions, suitable for mass production in electronics manufacturing workshops. Operators can easily set heating time and temperature via the control panel. It complies with industrial production standards, helping manufacturers improve product consistency and reduce defect rates in electronic assembly and material aging tests. Widely applied in semiconductor, circuit board and electronic module production lines, it is essential thermal processing equipment for modern electronics factories.
Temperature Range: Configurable per model and test requirements.
Chamber Volume: Multiple sizes for different samples and capacities.

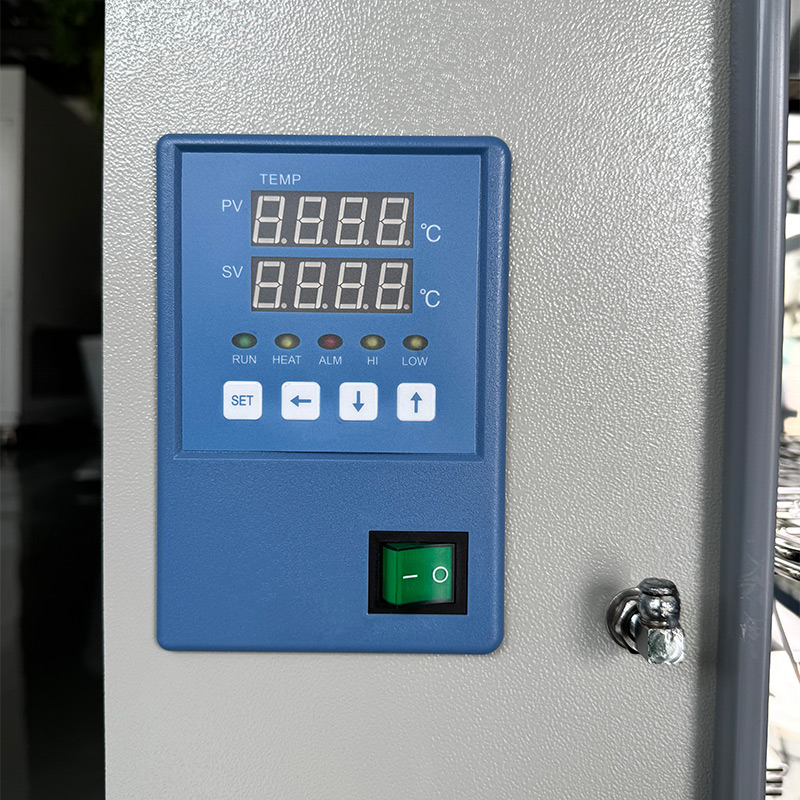

Controller: User-friendly system for stable and precise operation.
Power Supply: Standard or customized to local electrical standards.

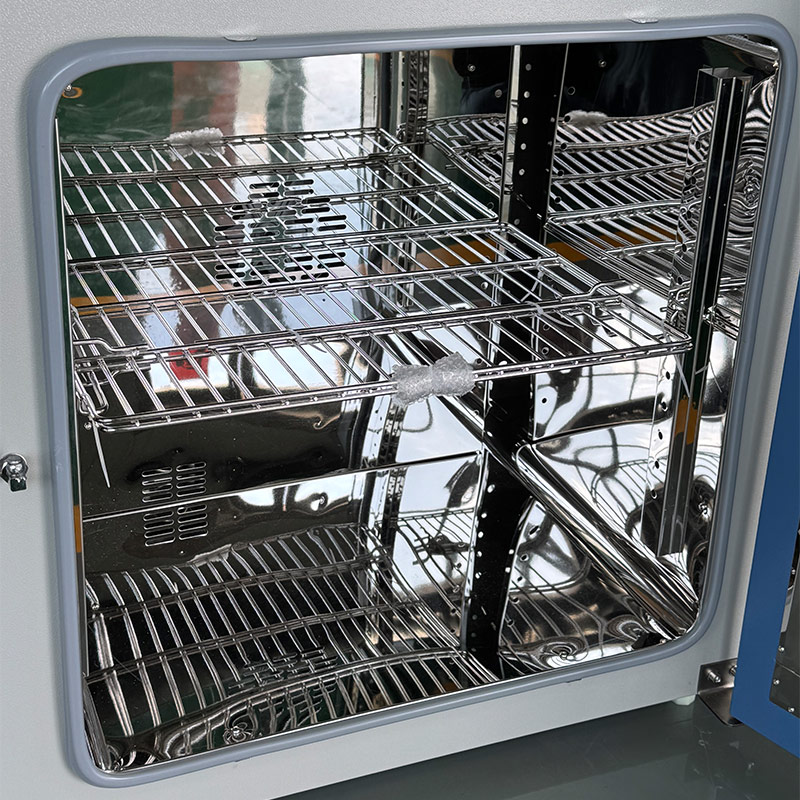

Internal view

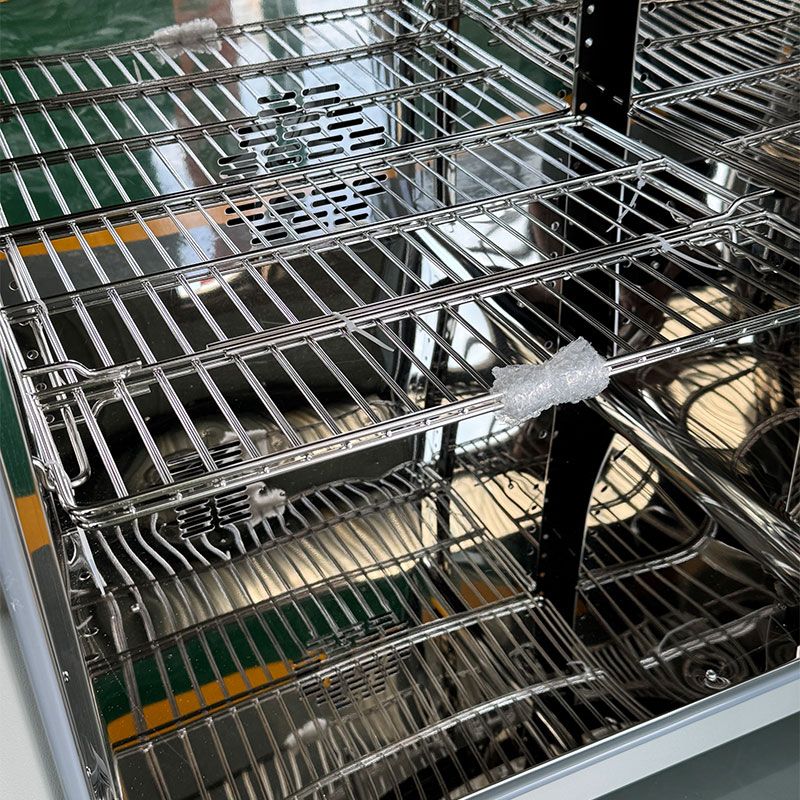

Sample holder
Instrument 1
Forced-air Drying
| Product Model | HF-HGZ055 | HF-HGZ075 | HF-HGZ100 | HF-HGZ145 | HF-HGZ225 | HF-HGZ500 |
|---|---|---|---|---|---|---|
| Interior Dimension W×D×H (mm) | 400*420*345 | 400*450*450 | 450*450*500 | 450*550*550 | 500*600*750 | 700*800*900 |
| Capacity (L) | 55L | 80L | 100L | 136L | 225L | 500L |
| Temp Range | RT+10℃ - 200℃ (MAX 300℃) | |||||
| Display Resolution | 0.1℃ | |||||
| Uniformity at 100℃ | ±2.0℃ | |||||
| Timing Range | 1 - 5999mins | |||||
| Electrical Requirement | AC220V, 50Hz | |||||
Natural Convection
| Product Model | HF-HZL055 | HF-HZL075 | HF-HZL100 | HF-HZL145 | HF-HZL225 | HF-HZL500 |
|---|---|---|---|---|---|---|
| Interior Dimension W×D×H (mm) | 400*420*345 | 400*450*450 | 450*450*500 | 450*550*550 | 500*600*750 | 700*800*900 |
| Capacity (L) | 55L | 80L | 100L | 136L | 225L | 500L |
| Temp Range | RT+10℃ - 200℃ (MAX 300℃) | |||||
| Display Resolution | 0.1℃ | |||||
| Uniformity at 100℃ | ±2.0℃ | |||||
| Timing Range | 1 - 5999mins | |||||
| Electrical Requirement | AC220V, 50Hz | |||||
Standard configuration includes a practical controller for daily testing operation.
Observation window is available on selected models for convenient monitoring.
Test port can be included for cable routing or sample monitoring when required.
Optional data logging is available for test data recording and management.
Communication interface can be added for data transfer or remote integration.
Chamber dimensions can be customized for different sample sizes and capacities.
Non-standard structure design is available for special testing applications.
Electronics & ElectricalSuitable for performance and reliability testing of electronic and electrical products.
Metal & Surface TreatmentApplicable to corrosion resistance, durability, or aging evaluation of metal parts and coatings.
AutomotiveUsed for environmental durability and quality verification of automotive components.
Plastics & RubberHelps evaluate the stability and environmental resistance of plastic and rubber materials.
Laboratory TestingWidely used in laboratories for research validation, quality control, and test development.
