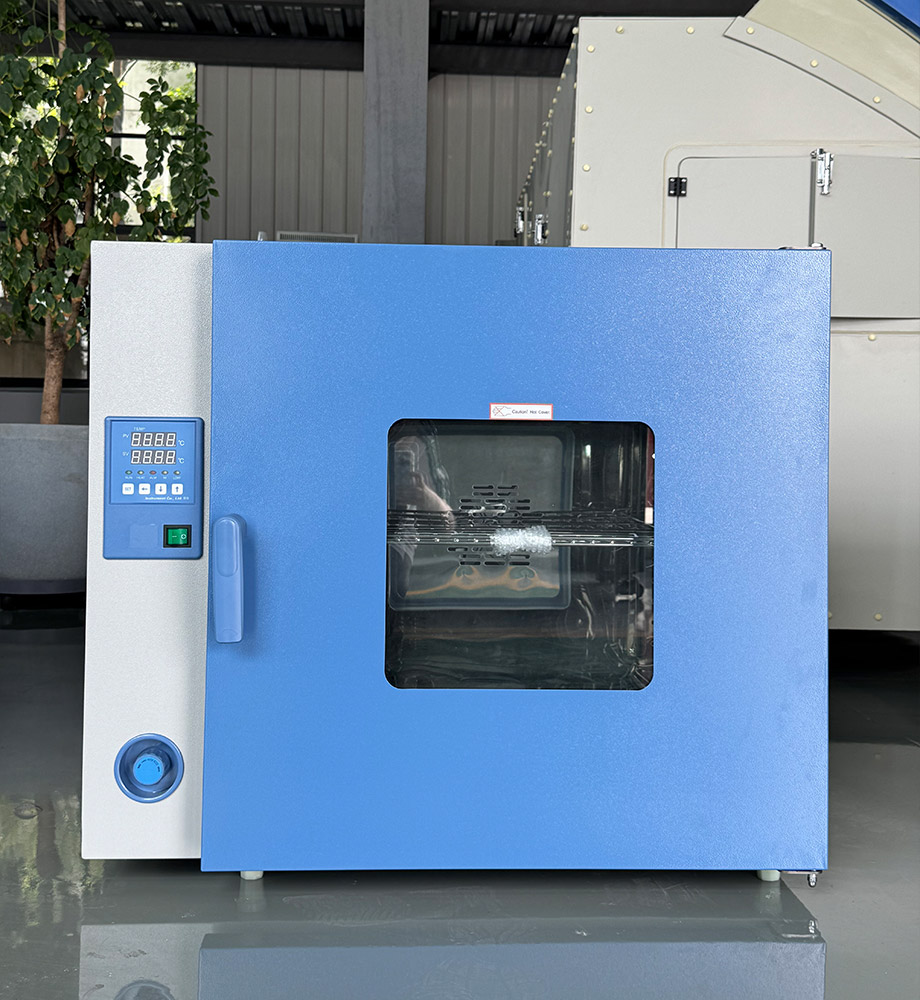

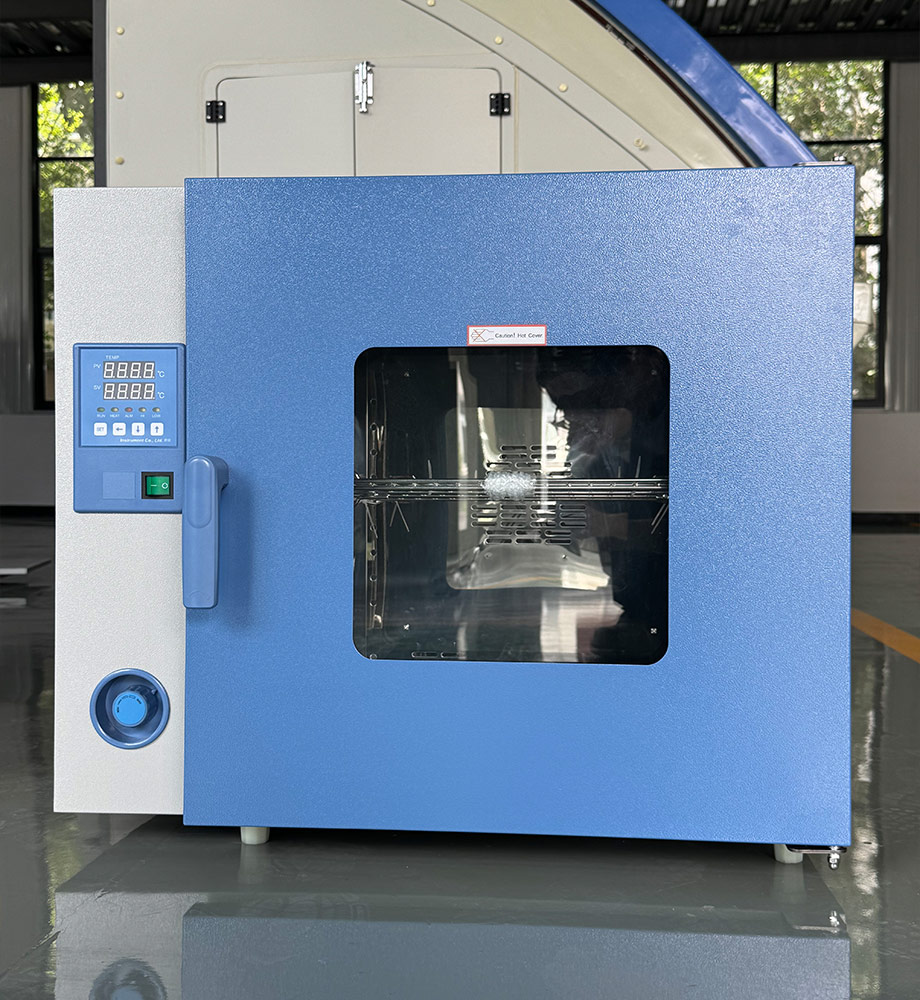

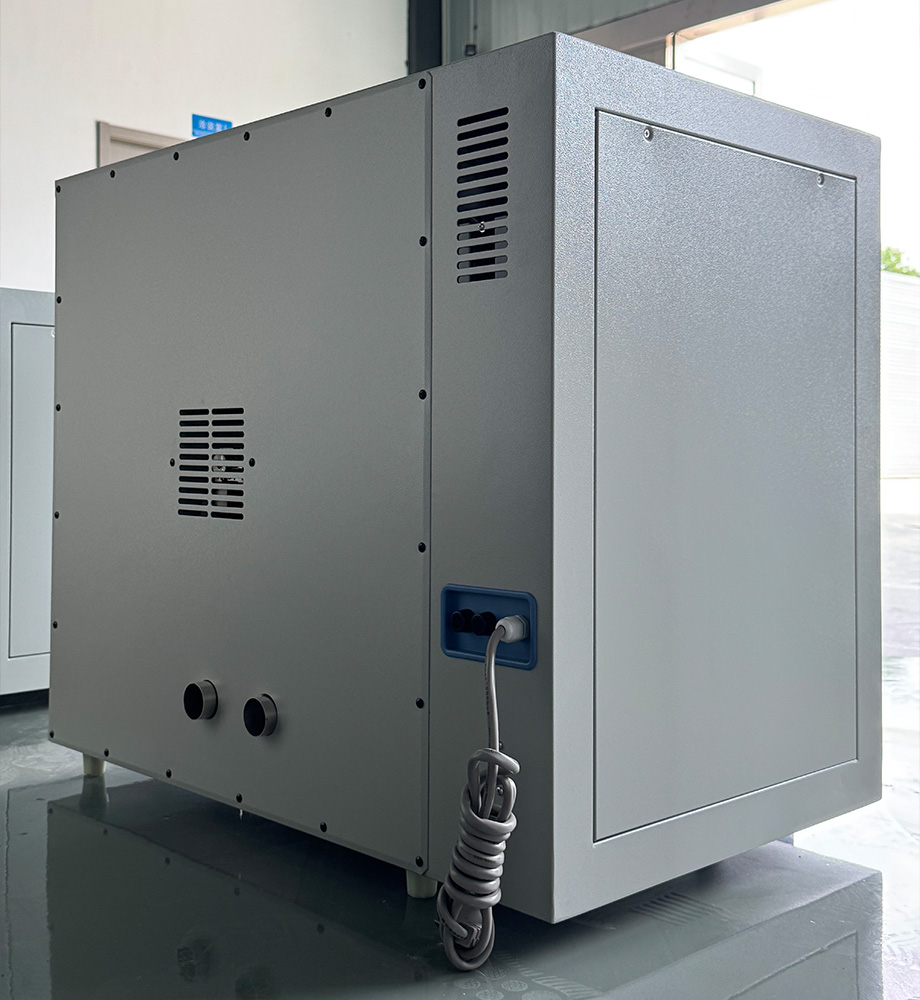

Industrial Drying Oven

An industrial drying oven is designed for controlled heating and drying processes in manufacturing, laboratories, and industrial production. It provides a stable temperature environment for removing moisture, solvents, and other volatile substances from materials, components, and finished products. The industrial drying oven features a durable chamber, reliable heating elements, temperature control, and adjustable drying settings to meet different process requirements. Depending on the application, it can be configured with forced air circulation, digital temperature controllers, multiple shelves, and customized chamber dimensions. It is widely used for drying metal parts, electronic components, coatings, powders, plastics, and other industrial materials. With flexible configurations and consistent heating performance, this equipment can support continuous production and improve process control across various industrial applications.

Key Specifications

Temperature Range: Configurable per model and test requirements.
Chamber Volume: Multiple sizes for different samples and capacities.
Controller: User-friendly system for stable and precise operation.
Power Supply: Standard or customized to local electrical standards.

WhatsApp Now

Product Details
Technical Specifications
Key Advantages
Applications
FAQs

Product Details

Internal view

Sample holder

Instrument 1

Technical Specifications

Forced-air Drying

Product Model	HF-HGZ055	HF-HGZ075	HF-HGZ100	HF-HGZ145	HF-HGZ225	HF-HGZ500
Interior Dimension W×D×H (mm)	400420345	400450450	450450500	450550550	500600750	700800900
Capacity (L)	55L	80L	100L	136L	225L	500L
Temp Range	RT+10℃ - 200℃ (MAX 300℃)
Display Resolution	0.1℃
Uniformity at 100℃	±2.0℃
Timing Range	1 - 5999mins
Electrical Requirement	AC220V, 50Hz

Natural Convection

Product Model	HF-HZL055	HF-HZL075	HF-HZL100	HF-HZL145	HF-HZL225	HF-HZL500
Interior Dimension W×D×H (mm)	400420345	400450450	450450500	450550550	500600750	700800900
Capacity (L)	55L	80L	100L	136L	225L	500L
Temp Range	RT+10℃ - 200℃ (MAX 300℃)
Display Resolution	0.1℃
Uniformity at 100℃	±2.0℃
Timing Range	1 - 5999mins
Electrical Requirement	AC220V, 50Hz

Product Features

Stable Performance
The equipment is designed for dependable operation and repeatable testing performance.
Accurate Temperature / Humidity Control
The control system helps maintain stable testing conditions for more accurate verification.
Durable Structure
The chamber structure is designed for long-term use in laboratory and industrial environments.
Easy Operation
User-friendly control and accessible design make daily operation and maintenance easier.
Support Customization
Standard models and customized solutions are both available for different project requirements.

Configuration Options

Standard Configuration

Standard Controller:
Standard configuration includes a practical controller for daily testing operation.
Standard Observation Window:
Observation window is available on selected models for convenient monitoring.
Standard Test Port:
Test port can be included for cable routing or sample monitoring when required.

Optional Configuration

Data Logger:
Optional data logging is available for test data recording and management.
Communication Port:
Communication interface can be added for data transfer or remote integration.
Customized Size:
Chamber dimensions can be customized for different sample sizes and capacities.
Non-standard Design:
Non-standard structure design is available for special testing applications.

Applications

Electronics & ElectricalSuitable for performance and reliability testing of electronic and electrical products.

Metal & Surface TreatmentApplicable to corrosion resistance, durability, or aging evaluation of metal parts and coatings.

AutomotiveUsed for environmental durability and quality verification of automotive components.

Plastics & RubberHelps evaluate the stability and environmental resistance of plastic and rubber materials.

Laboratory TestingWidely used in laboratories for research validation, quality control, and test development.

FAQs- Industrial Drying Oven

Is it normal for the exterior casing of a high-temperature test chamber to feel very hot to the touch during summer operation?

Yes, this is normal. Especially in summer, high ambient temperatures—combined with the fact that ventilation/heat dissipation vents are typically located at the top of the chamber—cause heat to radiate outward, resulting in elevated temperatures on the casing (particularly the top section).

How should samples be arranged during daily use to ensure optimal drying results?

Samples must be spaced apart—never crowded together—and positioned away from the air intake and exhaust vents. Additionally, it is recommended to preheat the empty chamber and wait for the temperature to stabilize before loading samples; this significantly minimizes temperature fluctuations.

What routine maintenance is required to ensure the oven operates stably over the long term?

Precision ovens require regular calibration and maintenance. Routine care involves cleaning the interior and keeping air ducts unobstructed. At the same time, the performance and condition of core components—such as heaters, controllers, and sensors—should be checked regularly. We recommend strictly following the equipment's operation manual and the manufacturer's maintenance guidelines, including the timely replacement of any faulty parts, to ensure long-term, stable operation.
