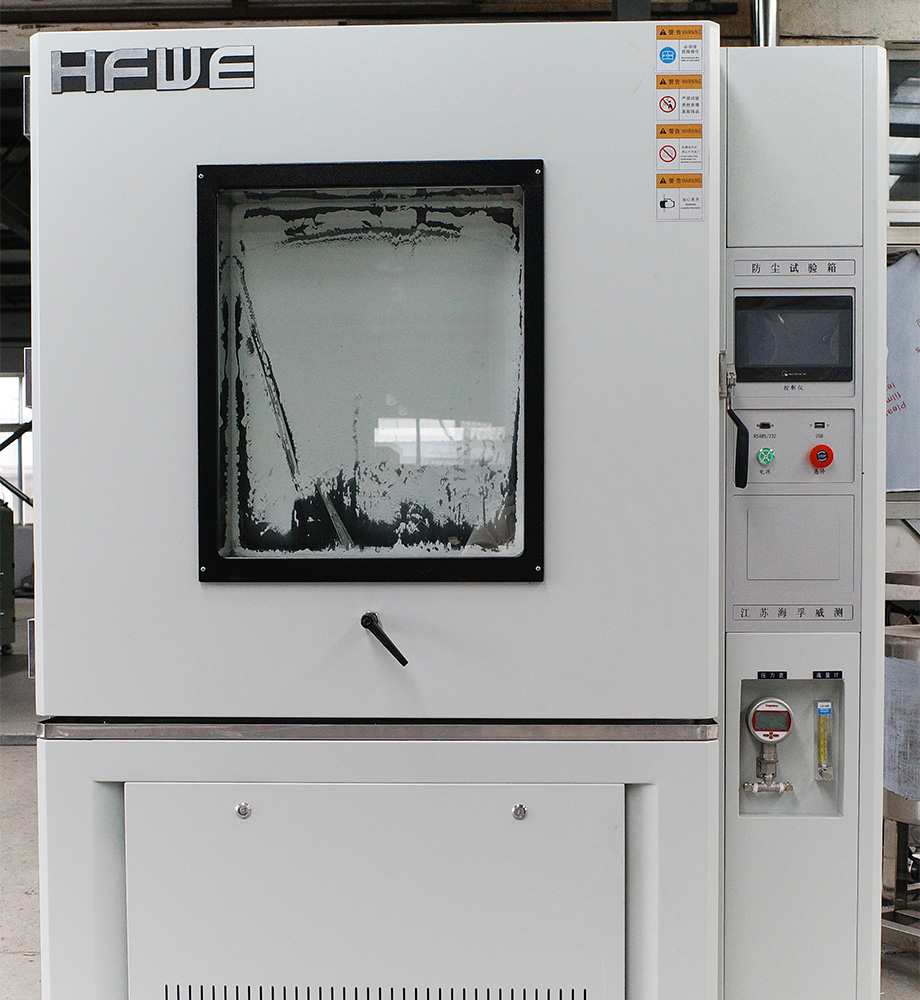

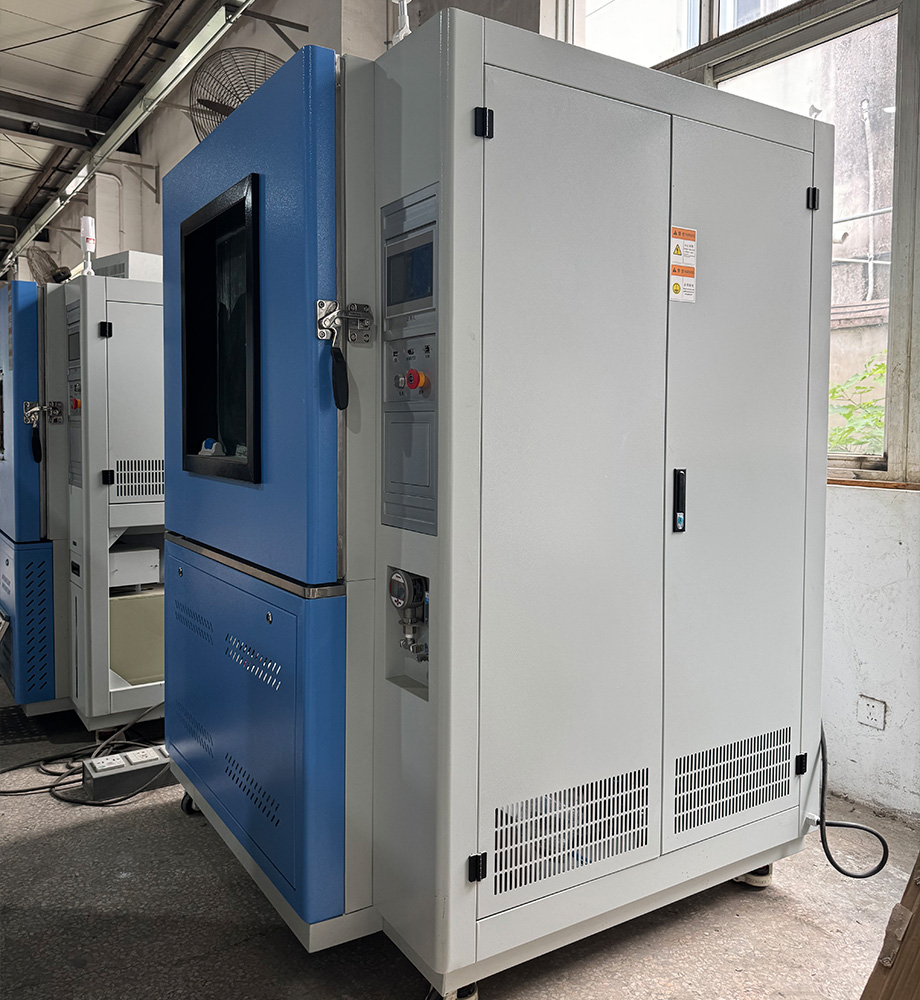

Dust Test Chamber

Dust Test Chamber

The dust test chamber is designed to simulate natural sand and dust environments, comprehensively evaluating the enclosure protection performance (IP5X/IP6X) of electronic products, automotive components, and seals. Dust test chamber accelerates the assessment of potential dust intrusion damage, providing a scientific basis for structural optimization, quality inspection, and reliability verification.


Key Specifications

  • Temperature Range: Configurable per model and test requirements.

  • Chamber Volume: Multiple sizes for different samples and capacities.

  • Controller: User-friendly system for stable and precise operation.

  • Power Supply: Standard or customized to local electrical standards.

WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Product Details
  • Technical Specifications
  • Key Advantages
  • Applications
  • FAQs

Product Details

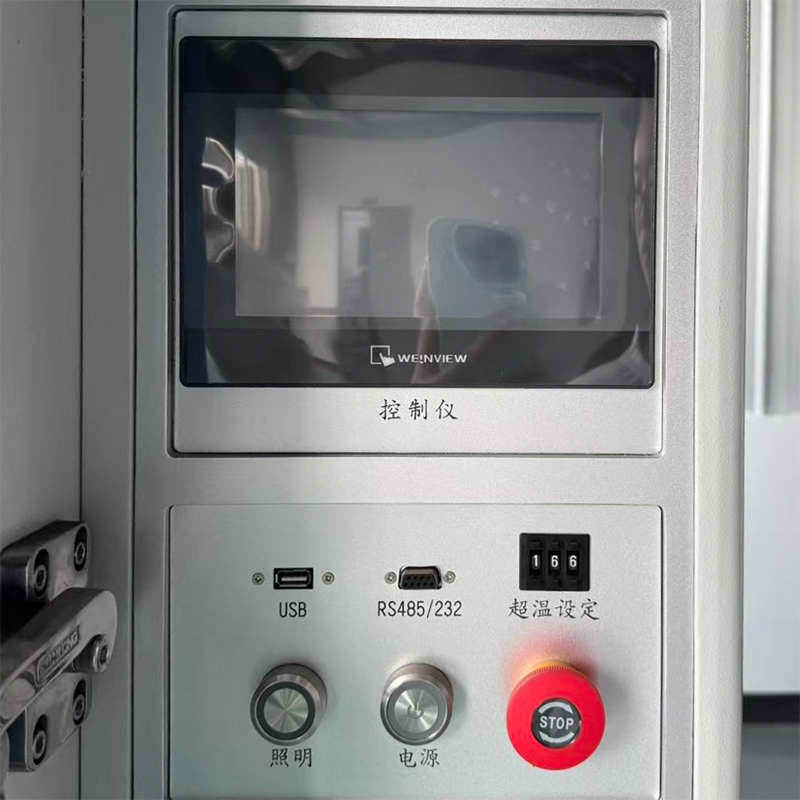

控制面板

Control Panel

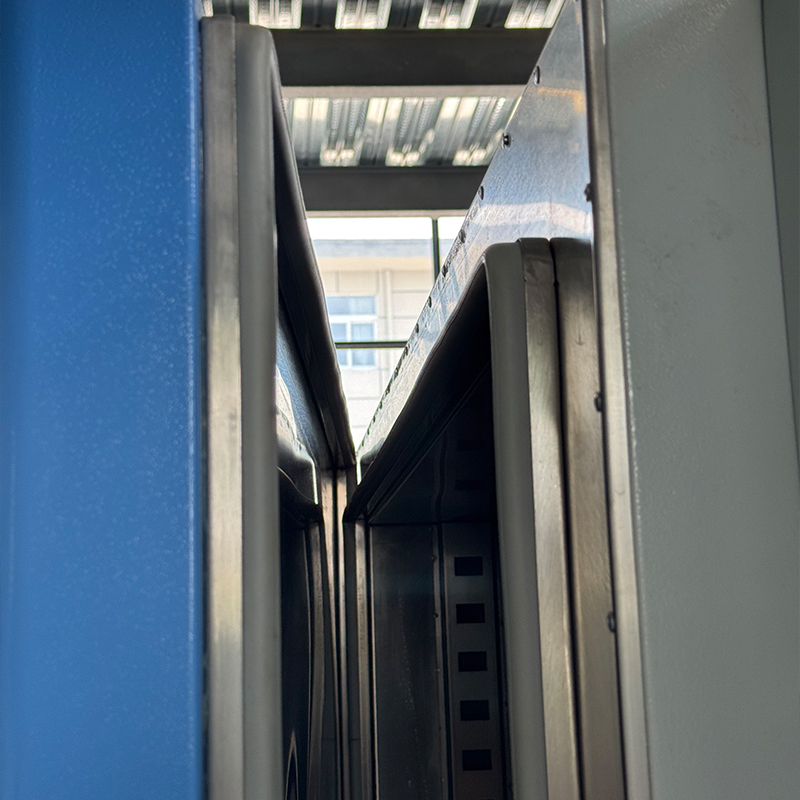

密封结构(双胶圈)

Sealing Structure (Dual O-Rings)

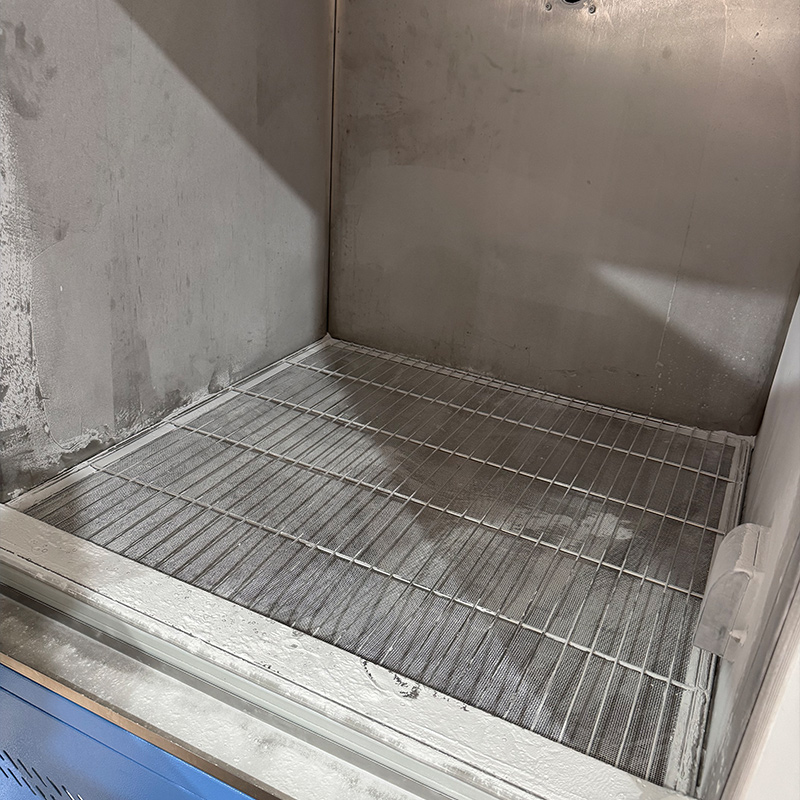

样品搁架

Sample Shelf

Technical Specifications

ModelSC-500SC-800SC-1000SC-1500SC-2000
Inner Chamber Size D×W×H800×800×800800×1000×10001000×1000×10001000×1500×10001200×1800×1200
Overall Dimension D×W×H1050×1220×15501050×1420×18201250×1420×18501250×1920×18201450×2220×2180
Basic Test ParametersMetal Wire Mesh Diameter50um
Nominal Wire Spacing75um
Talc Powder Dosage2kg~4kg/m³
Vibration Duration0~99H59M
Fan Cycle Time0~99H59M
Test Piece Power SocketDust-proof Socket AC220V 16A
Operation Control SystemControllerImport programmable touch screen with Chinese dialogue display, microcomputer integrated controller, equipped with RS232/485 remote communication
Vacuum SystemEquipped with pressure gauge, air filter, pressure regulating three-unit combination and connecting pipe (vacuum pump supplied separately, please specify when ordering)
Circulation FanClosed alloy low-noise motor, multi-blade centrifugal fan
Dust Heating SystemStainless steel mica sheet heating sleeve
Safety ProtectionLeakage, short circuit, over-temperature, over-current protection / controller power-off memory function


Notes:

1. This test chamber meets the shell protection grade test requirements for household appliances, low-voltage electrical appliances, automobile and motorcycle parts specified in GB2423, GB4706, GB4208 and DIN standards.

2. If military standard sand and dust test conforming to GJB150.12 is required, technical parameters shall be formulated separately.

Product Features

  • Safety1.png

    Standard compliant

    This dust test chamber follows IEC 60529 to run IP5X and IP6X dust ingress tests, delivering repeatable test data for electronic, automotive and outdoor devices.
  • Temperature-Control.png

    Stable dust circulation

    It adopts a variable-speed blower to keep dust evenly suspended inside, avoiding dust settlement and guaranteeing consistent test conditions during operation.
  • Durable-Structure.png

    Durable inner structure

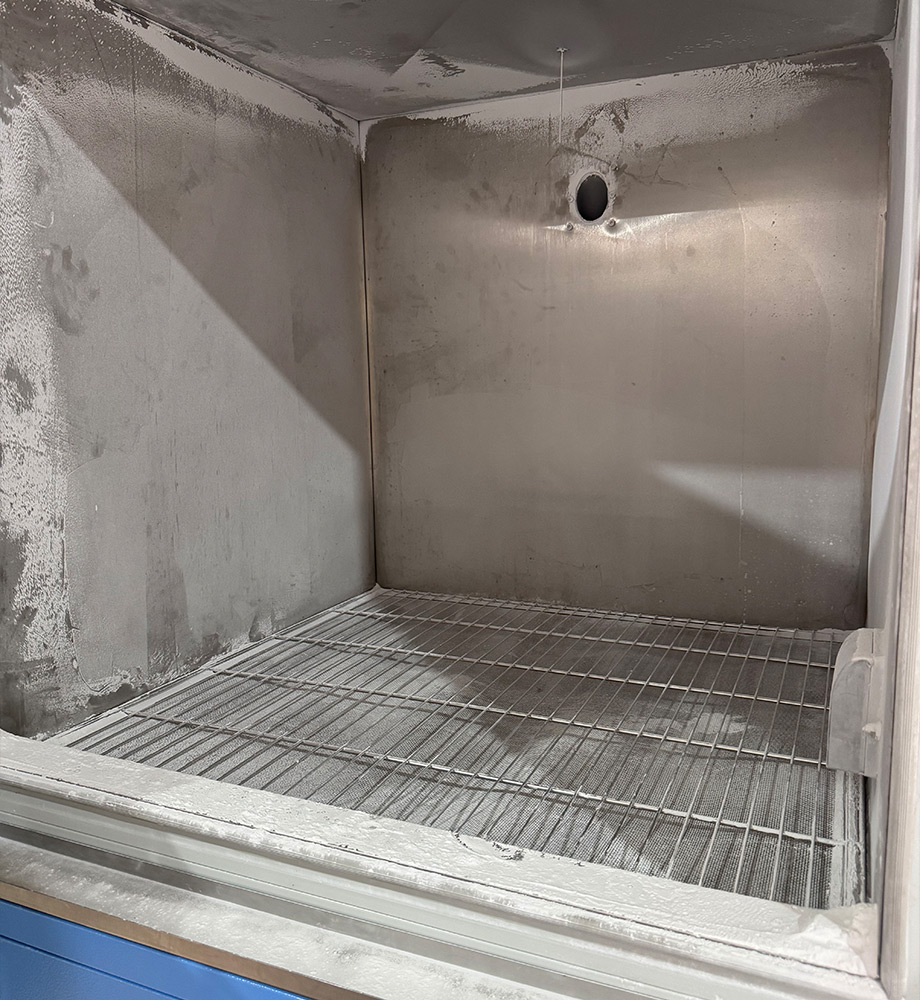

    The inner cavity of the dust test chamber is made of 304 stainless steel, which resists corrosion and is easy to clean after each test cycle.
  • Easy-Operation.png

    Intelligent control system

    Equipped with a touchscreen controller, users can set test duration, wind speed and vacuum value, and the system will record test data automatically.
  • Support-Customization.png

    Safe and convenient observation

    The dust test chamber has a sealed viewing window for real-time sample monitoring. It also comes with protective alarms for abnormal pressure or operation.

Configuration Options

Standard Configuration
  • Standard Controller:

    Standard configuration includes a practical controller for daily testing operation.

  • Standard Observation Window:

    Observation window is available on selected models for convenient monitoring.

  • Standard Test Port:

    Test port can be included for cable routing or sample monitoring when required.

Optional Configuration
  • Data Logger:

    Optional data logging is available for test data recording and management.

  • Communication Port:

    Communication interface can be added for data transfer or remote integration.

  • Special Material:

    Special chamber material can be selected based on test media or corrosion requirements.

  • Customized Size:

    Chamber dimensions can be customized for different sample sizes and capacities.

  • Non-standard Design:

    Non-standard structure design is available for special testing applications.

Applications


Electronics & ElectricalSuitable for performance and reliability testing of electronic and electrical products.


Metal & Surface TreatmentApplicable to corrosion resistance, durability, or aging evaluation of metal parts and coatings.


AutomotiveUsed for environmental durability and quality verification of automotive components.


Plastics & RubberHelps evaluate the stability and environmental resistance of plastic and rubber materials.


Laboratory TestingWidely used in laboratories for research validation, quality control, and test development.

FAQs- Dust Test Chamber

Q
What is a sand and dust test chamber used for?
A
A sand and dust test chamber evaluates how products withstand airborne dust and sand exposure. This sand and dust chamber helps manufacturers assess enclosure protection, material durability, and product reliability under simulated dusty environmental conditions.
Q
Which products can be tested using a sand and dust test chamber?
A
A sand and dust test chamber can be used to test automotive components, electrical enclosures, electronic devices, lighting equipment, and industrial parts. The specific test setup depends on product dimensions, intended applications, and applicable testing standards.
Q
Which testing standards should a sand and dust test chamber meet?
A
Commonly referenced standards include IEC 60529 for IP5X and IP6X dust protection tests, as well as relevant ISO or industry-specific methods. Buyers should confirm the required standard and test procedure before selecting a chamber configuration.
