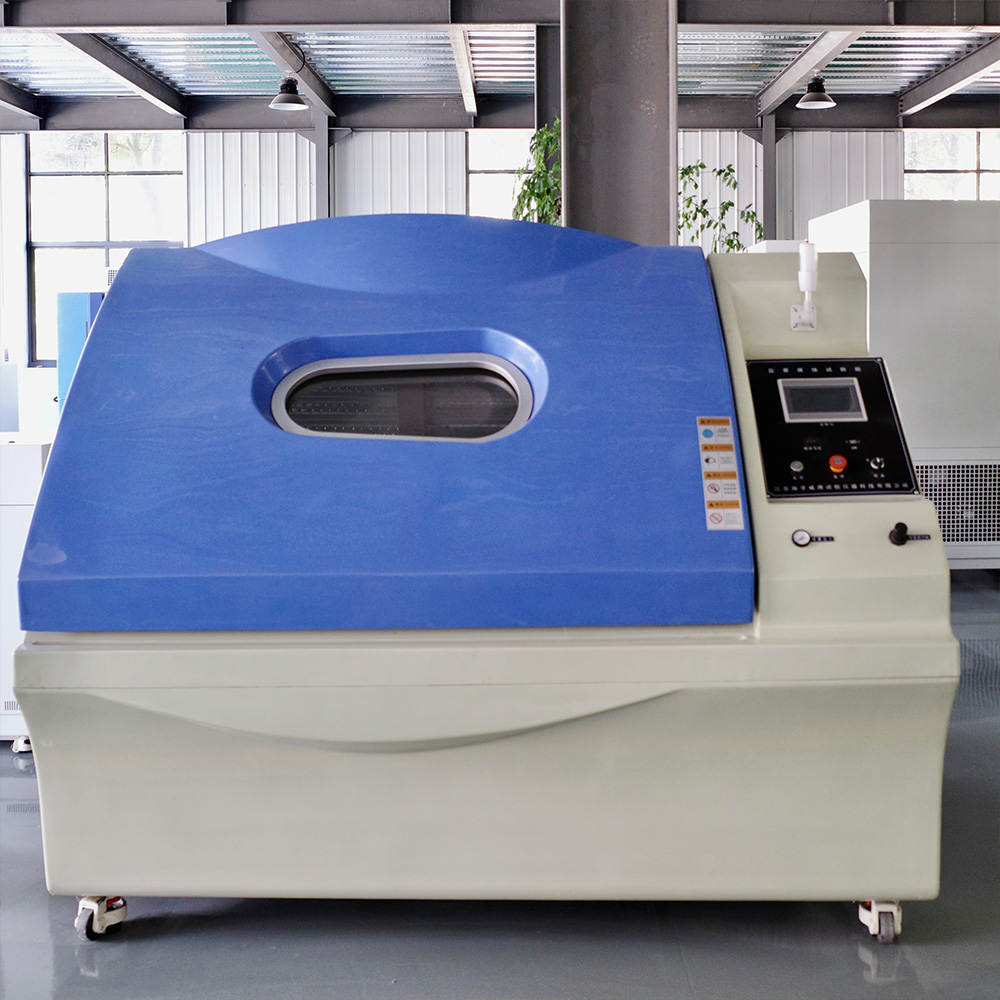

Acetic Acid Salt Spray Machine

Acetic Acid Salt Spray Machine

The Acetic Acid Salt Spray Machine simulates marine or salt-laden atmospheric environments to evaluate the corrosion resistance of metal materials, electronic components, and surface coatings (such as electroplating and paint). It precisely controls constant salt spray concentration, temperature, and humidity within a sealed enclosure to accelerate sample aging, providing reliable evidence for R&D in protective processes, quality control, and lifespan prediction.


Key Specifications

  • Temperature Range: Configurable per model and test requirements.

  • Chamber Volume: Multiple sizes for different samples and capacities.

  • Controller: User-friendly system for stable and precise operation.

  • Power Supply: Standard or customized to local electrical standards.

WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Product Details
  • Technical Specifications
  • Key Advantages
  • Applications
  • FAQs

The acetic acid salt spray machine from Haifuwei performs the acidified salt spray (ASS) test, in which glacial acetic acid is added to the sodium chloride solution to lower the pH to 3.1–3.3. Under this acidic mist, galvanized, plated, and painted surfaces corrode several times faster than in a neutral salt spray test — so an acetic acid salt spray machine reveals coating weaknesses and material defects in a fraction of the standard testing time.


Inside the sealed enclosure, temperature is held between ambient +5℃ and 55℃ with ±2℃ deviation, while the tower spray device with non-crystallizing nozzles maintains a uniform 1–2 ml/80cm²·h deposition rate. The anti-acid PP inner chamber, transparent PVC/PP cover, and corrosion-resistant fittings withstand long-term exposure to acidic mist.


Six models from 150 L to 2000 L with continuous or cyclic spray modes cover both routine QC and demanding accelerated programs. For laboratories that need faster results than NSS without the copper acceleration of CASS, an acetic acid salt spray machine from Haifuwei is the proven, cost-effective middle ground — with customization and full after-sales support.


Product Details

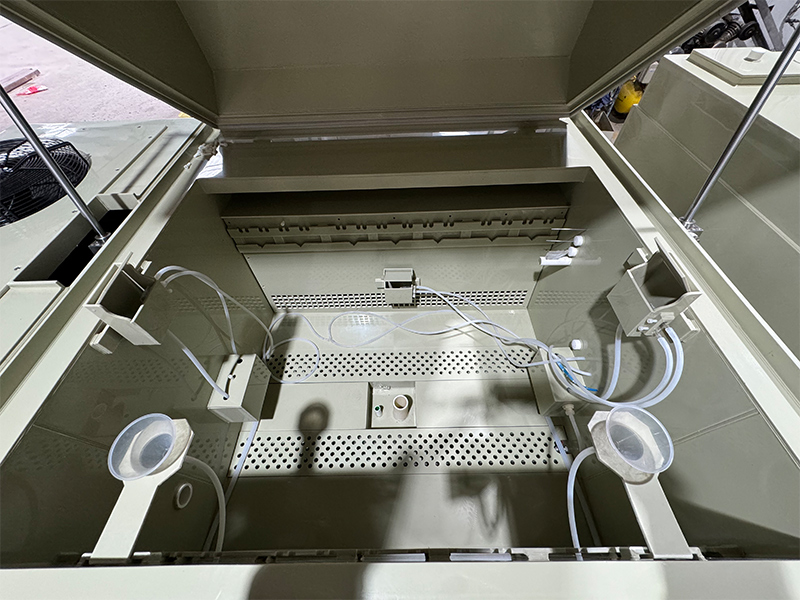

壁挂式喷雾箱体内部图

Interior view of wall-mounted spray chamber

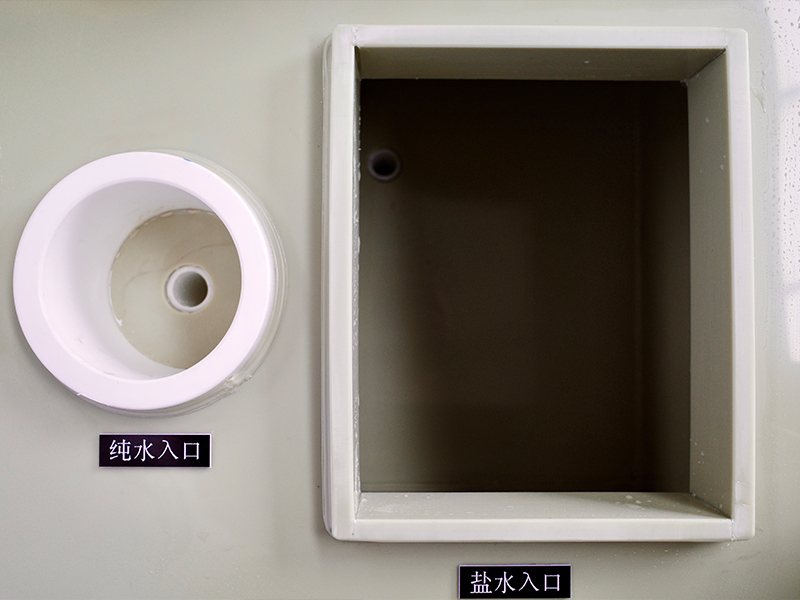

水入口

Water inlet

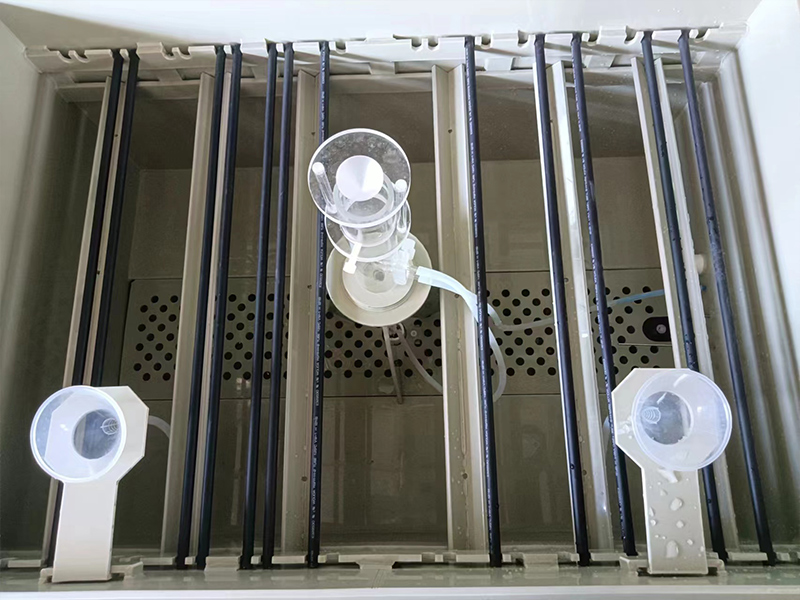

塔式喷雾箱体内部图

Interior view of tower-style spray chamber

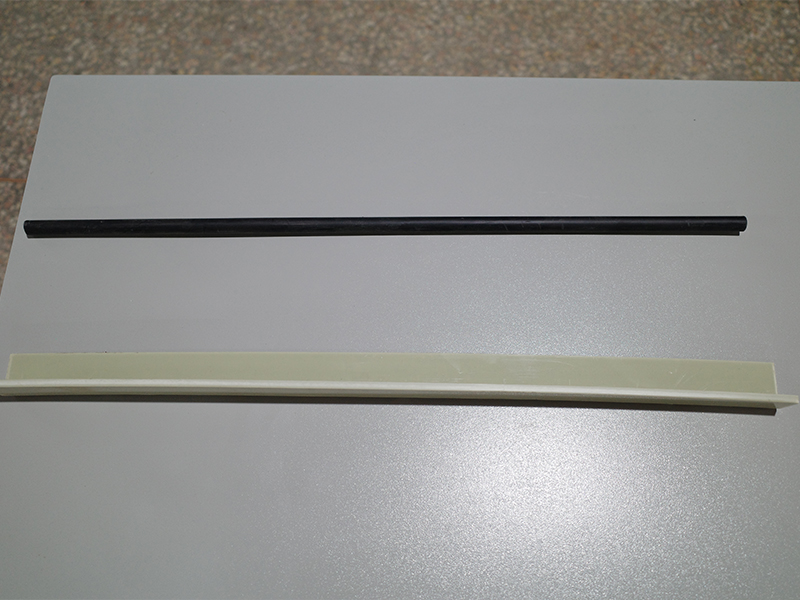

样品架

Sample rack

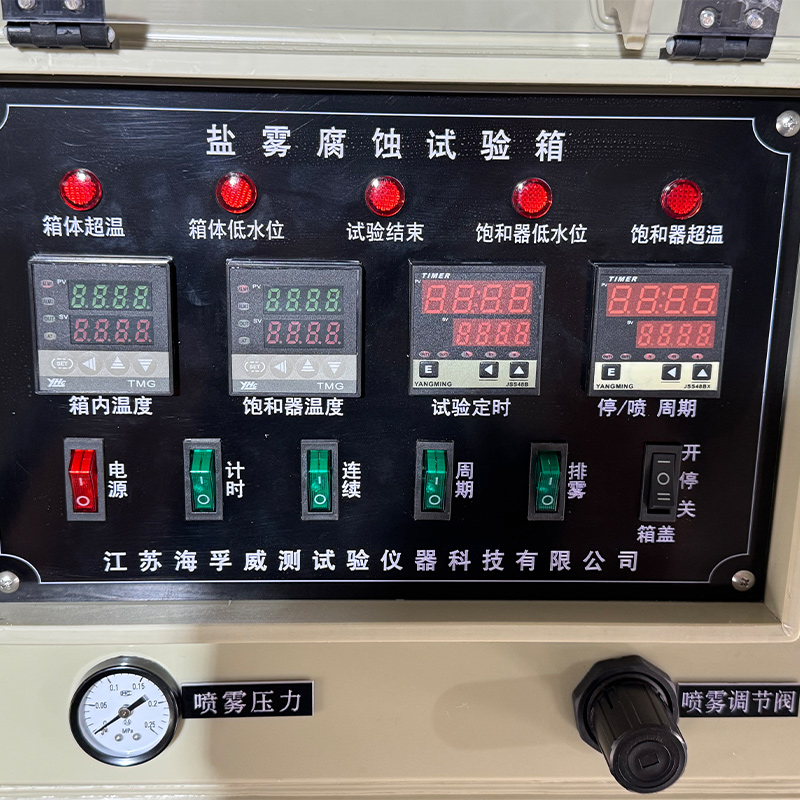

按键式仪表

Push-button controller

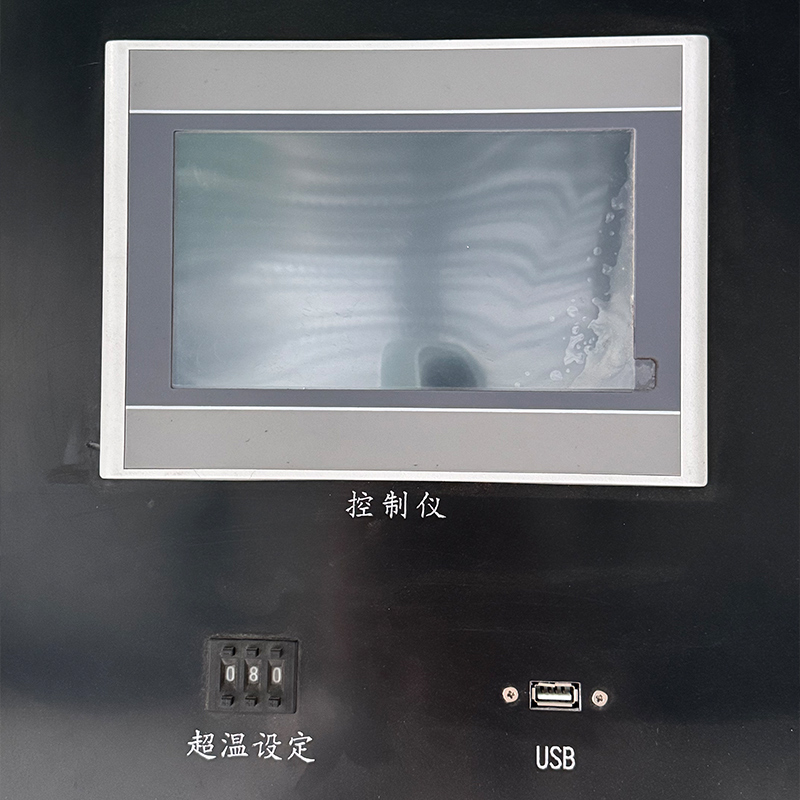

触摸屏仪表

Touchscreen controller

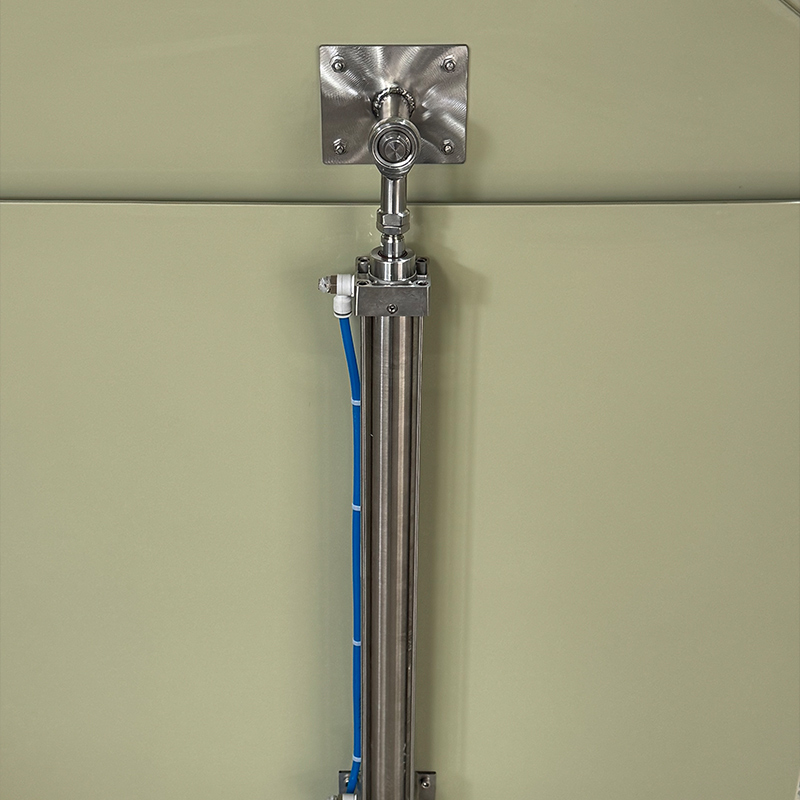

气缸(010以上型号配备)

Pneumatic cylinder (equipped on models 010 and above)

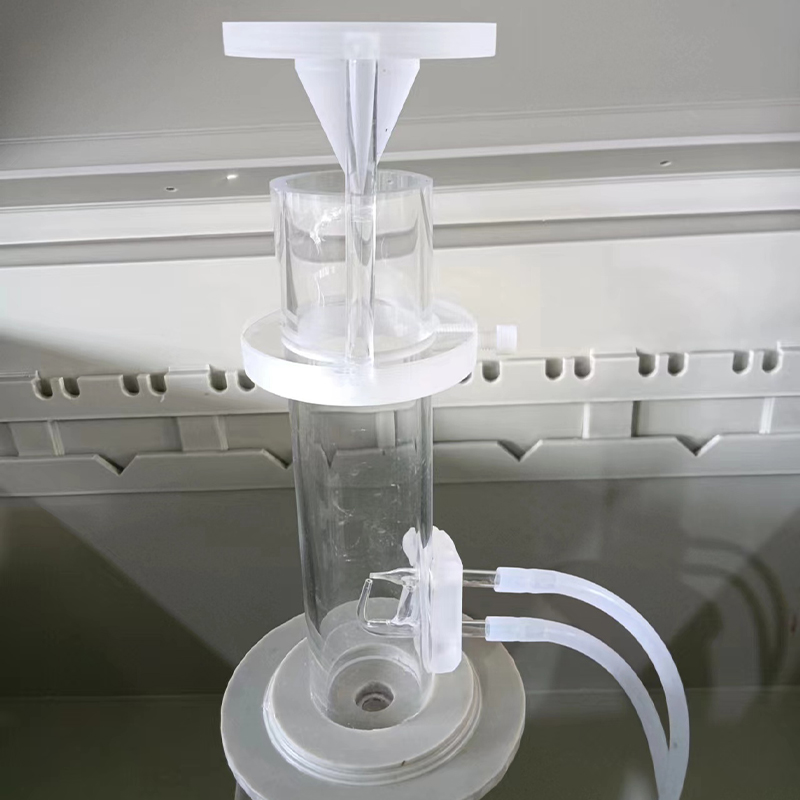

塔式喷雾

Tower-style spray

Technical Specifications

ModelYWX/Q-150(B)YWX/Q-250(B)YWX/Q-750(B)YWX/Q-010(B)YWX/Q-016(B)YWX/Q-020(B)
Inner Chamber Size D×W×H450×600×400600×900×500750×1100×500850×1300×600850×1600×600900×2000×600
Overall Dimension D×W×H700×1070×1050870×1400×11501030×1680×12601160×2000×13901210×2200×14401260×2600×1490
Performance IndexTemperature RangeAmbient Temp.+5℃ ~ 55℃
Temperature Deviation≤±2℃
Temperature Fluctuation≤±0.5℃
Salt Spray Sedimentation Rate1~2ml/80cm²·h
Spray ModeContinuous / Cycle Optional
Test Timer1~999 (S, M, H) Adjustable
Temperature & Humidity Operation Control SystemTemperature ControllerLED Digital P.I.D+S.S.R Microcomputer Integrated Controller or Color Touch Screen Controller
Temperature & Humidity SensorPlatinum Resistance PT100Ω/MV
Heating SystemIndependent System, Nickel-Chromium Alloy Electric Heater
Spray SystemTower Spray Device with Non-Crystallizing Nozzle (Finer mist & uniform distribution)
Spray Duration1~99 (S, M, H) Cycle Adjustable
Salt Solution CollectionEquipped with Standard Funnel & Graduated Cylinder
Outer Cabinet MaterialImported Anti-Corrosion, High-Strength, High-Temperature Resistant PP Plate
Inner Chamber MaterialImported Anti-Corrosion, High-Strength, High-Temperature Resistant PP Plate
Cover MaterialImported Anti-Corrosion High-Strength Transparent PVC Plate / Imported Anti-Corrosion High-Temp Resistant PP Plate
Other AccessoriesAll stainless steel, copper or anti-corrosion & high-temperature resistant materials
Standard Accessories1 set of round bar & V-type sample rack, 2 spray nozzles, funnel, 2 sets graduated cylinders
Safety ProtectionLeakage, Short Circuit, Overheat, Water Shortage, Test Completion, Overcurrent Protection / Power-off Memory for Controller
Power Supply VoltageAC220V±10% 50HZAC380V±10% 50HZ
Ambient Operating Temperature5℃ ~ +30℃, ≤85% RH
Optional Chamber Materials1. PP Plastic Plate; 2. FRP (Fiberglass Reinforced Plastic); 3. 2507 Anti-Corrosion Stainless Steel Plate

Product Features

  • Safety1.png

    Stable Acidified pH Control

    Glacial acetic acid is metered into the salt solution to hold the acidic mist within the pH 3.1–3.3 window required by the ASS method, so every acetic acid salt spray machine run delivers the corrosion aggressiveness the standard expects — without drift between cycles.
  • Temperature-Control.png

    Faster-Than-NSS Corrosion Acceleration

    Because acidic mist attacks zinc, cadmium, and decorative coatings far more aggressively than neutral fog, this acetic acid salt spray machine compresses weeks of neutral salt spray exposure into just a few days, shortening development loops and batch release decisions.
  • Durable-Structure.png

    Full Acid-Resistant Material System

    Beyond the anti-acid PP chamber and transparent PVC or PP cover, racks, nozzles, and fasteners on this acetic acid salt spray machine are all made of stainless steel or corrosion-proof materials — and optional FRP or 2507 stainless steel liners extend capability to harsher media.
  • Easy-Operation.png

    Installation and Ventilation Guidance

    An acetic acid salt spray machine should be placed in a separate, well-ventilated room to protect both operators and nearby equipment; Haifuwei provides clear installation guidance covering room layout, exhaust, drainage, and power connections before the unit arrives.
  • Support-Customization.png

    Anti-Crystallization Maintenance Routine

    After each test, accumulated solution is drained and interior walls wiped with fresh water to prevent salt crystallization from attacking the structure — a straightforward routine that keeps this acetic acid salt spray machine accurate and extends its working life.

Configuration Options

Standard Configuration
  • Standard Controller:

    Standard configuration includes a practical controller for daily testing operation.

  • Standard Observation Window:

    Observation window is available on selected models for convenient monitoring.

Optional Configuration
  • Data Logger:

    Optional data logging is available for test data recording and management.

  • Communication Port:

    Communication interface can be added for data transfer or remote integration.

  • Special Material:

    Special chamber material can be selected based on test media or corrosion requirements.

  • Customized Size:

    Chamber dimensions can be customized for different sample sizes and capacities.

  • Non-standard Design:

    Non-standard structure design is available for special testing applications.

Applications


Paint & Powder Coating ProducersCoating formulators run primer and topcoat systems in an acetic acid salt spray machine to rank adhesion, blistering, and under-film corrosion resistance, selecting recipes that survive acidic industrial and coastal atmospheres.


Fastener & Electro-Galvanized PartsZinc-plated screws, bolts, and stamped brackets are the classic ASS test subjects; acidic fog quickly exposes thin plating, poor passivation, and hydrogen-embrittlement-related failures before parts reach assembly lines.


PCB, Connector & Terminal AssembliesElectronic assemblies with plated contacts and solder-mask-coated boards are exposed in the acetic acid salt spray machine to verify how connectors, terminals, and housings withstand acidic, salt-laden air in tropical markets.


Construction & Building ComponentsCurtain-wall fixings, railing systems, coated steel panels, and outdoor structural hardware are screened for long-term corrosion resistance, giving architects and contractors objective data for coastal and industrial projects.


Universities & Industrial Training LabsTeaching laboratories and corporate training centers value the acetic acid salt spray machine for demonstrating how pH and fog chemistry change corrosion mechanisms — a clear, affordable platform for corrosion science courses and method comparison studies.

FAQs- Acetic Acid Salt Spray Machine

Q
How does acetic acid salt spray machine differ from a standard salt spray chamber?
A
Glacial acetic acid is added to the salt solution to create an acidic pH (3.1–3.3); consequently, the corrosion rate is significantly faster than that of the standard Neutral Salt Spray (NSS) test.
Q
How should it be maintained after testing?
A
Accumulated water must be drained, and the interior walls wiped clean with fresh water to prevent salt crystallization from corroding the equipment.
Q
What are the requirements for the installation environment?
A
Acetic acid salt spray machine must be placed in a separate, well-ventilated room.
