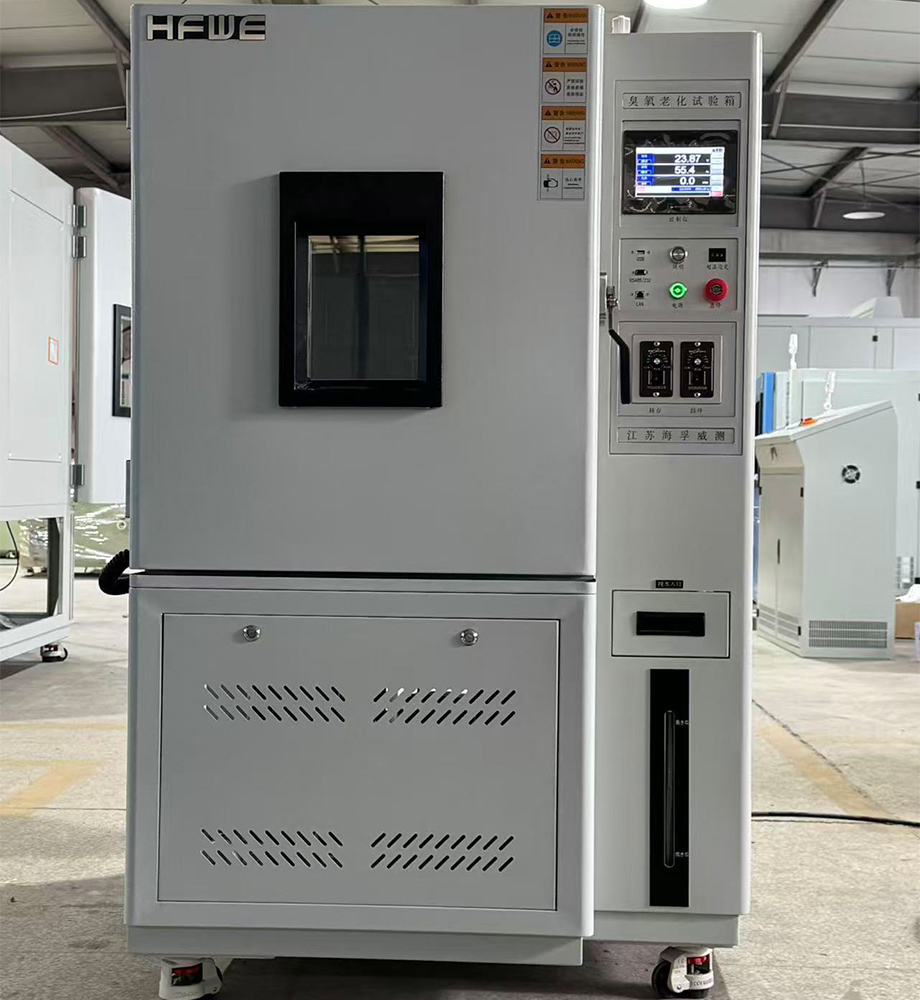

Ozone Aging Test Chamber

Ozone Aging Test Chamber

The ozone aging test chamber simulates atmospheric ozone environments to evaluate the crack resistance and aging performance of materials like rubber and plastics. Ozone aging test chamber precisely controls constant ozone concentration, temperature, and humidity within a sealed enclosure, providing reliable testing data for material R&D, quality control, and lifespan prediction.


Key Specifications

  • Temperature Range: Configurable per model and test requirements.

  • Chamber Volume: Multiple sizes for different samples and capacities.

  • Controller: User-friendly system for stable and precise operation.

  • Power Supply: Standard or customized to local electrical standards.

WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Product Details
  • Technical Specifications
  • Key Advantages
  • Applications
  • FAQs

Product Details

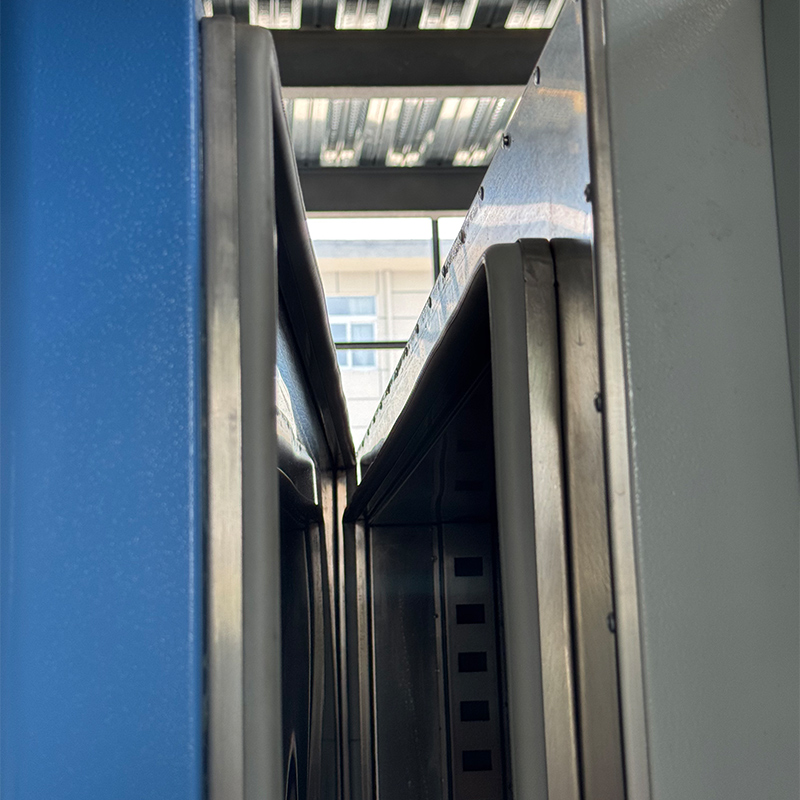

密封结构(双胶圈)

Sealing structure (dual O-rings)

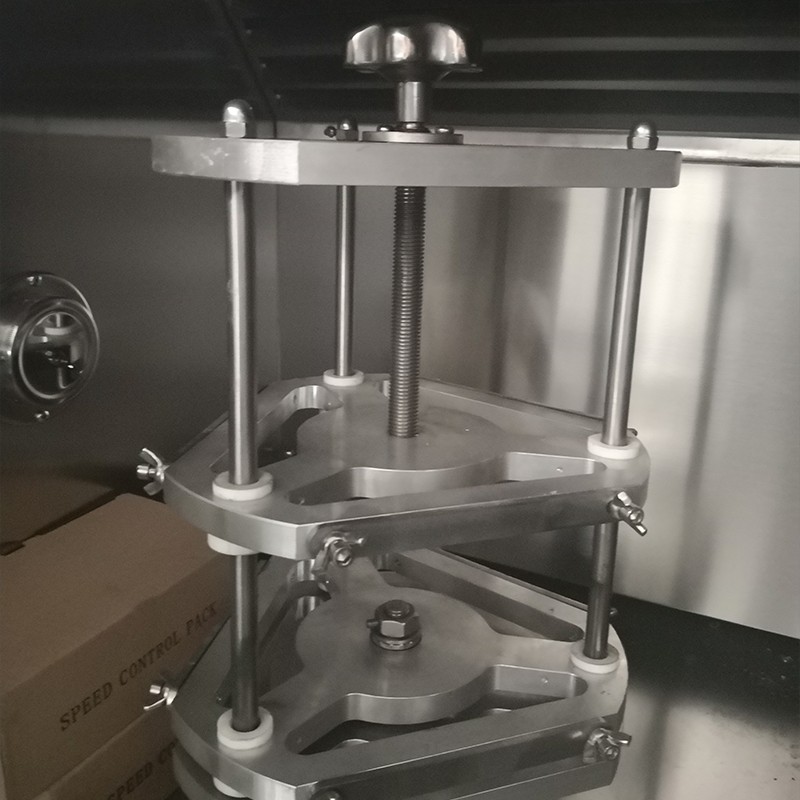

样品架

Sample holder

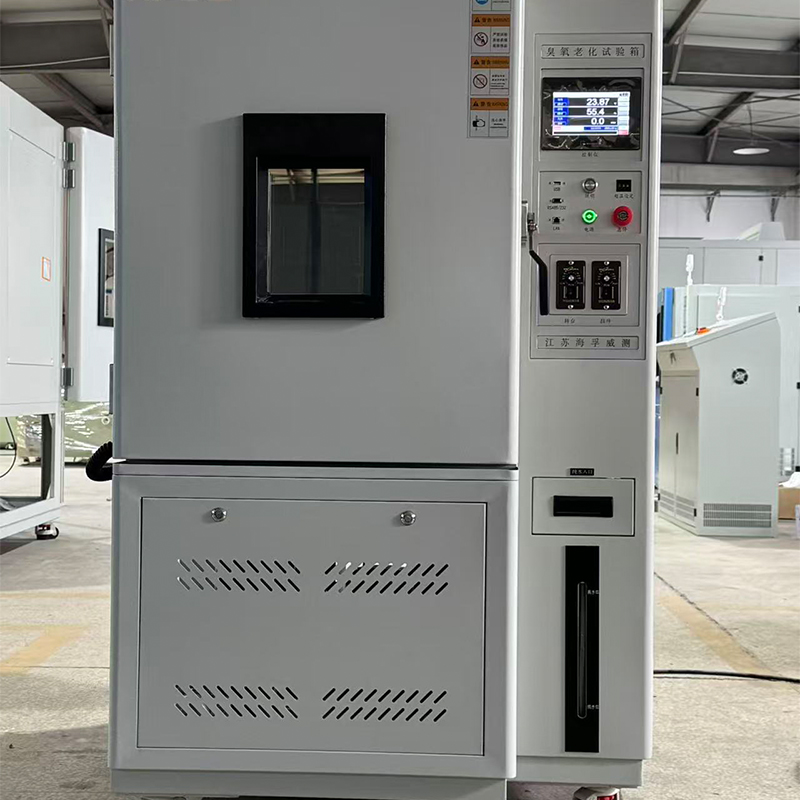

设备主图

Main equipment image

Technical Specifications

ModelAQL-100AQL-250AQL-500AQL-010
Inner Chamber Size D×W×H450×450×500500×600×750700×800×9001000×1000×1000
Overall Dimension D×W×H1050×870×15601120×1020×18101320×1250×19501600×1450×2080
Performance IndexTemperature Range0℃~70℃
Humidity Range50%RH~70%RH
Ozone Concentration10~500ppm / 20~1000pphm
Temperature Fluctuation±0.5℃
Test ModeDynamic / Static (Optional)
Sample Rack Rotation Speed360° rotating sample rack (1 rotation per minute)
Gas Flow Velocity12~16mm/s
Sample Rack Elongation Rate5%~80%
Operation Control SystemSample Rack Stretch Frequency0.5~2Hz
Touch Screen ControllerProgrammable touch screen with Chinese dialogue display, microcomputer integrated controller, directly displays internal temperature, humidity, ozone concentration and time
Ozone Concentration AnalyzerImported concentration regulating analyzer, 4~20mA output, RS232 communication port
Ozone GeneratorImported silent discharge tube type
Safety ProtectionLeakage, short circuit, over temperature, motor overheat and overcurrent protection

Product Features

  • Safety1.png

    Precise Ozone Concentration Control

    The ozone aging test chamber provides controlled ozone exposure conditions, allowing manufacturers to evaluate how rubber and polymer materials respond to different ozone concentrations.
  • Temperature-Control.png

    Stable Temperature Regulation

    Equipped with a temperature control system, the equipment maintains consistent testing conditions to support reliable ozone aging evaluations and repeatable test results.
  • Durable-Structure.png

    Adjustable Testing Parameters

    Users can adjust relevant testing parameters, such as ozone concentration, temperature, and exposure duration, according to specific material testing requirements.
  • Easy-Operation.png

    Material Aging Evaluation

    The ozone resistance test chamber helps assess surface cracking, discoloration, and other visible changes in rubber products exposed to ozone, supporting material quality evaluation.

Configuration Options

Standard Configuration
  • Standard Controller:

    Standard configuration includes a practical controller for daily testing operation.

  • Standard Observation Window:

    Observation window is available on selected models for convenient monitoring.

Optional Configuration
  • Data Logger:

    Optional data logging is available for test data recording and management.

  • Communication Port:

    Communication interface can be added for data transfer or remote integration.

  • Special Material:

    Special chamber material can be selected based on test media or corrosion requirements.

Applications


Electronics & ElectricalSuitable for performance and reliability testing of electronic and electrical products.


Metal & Surface TreatmentApplicable to corrosion resistance, durability, or aging evaluation of metal parts and coatings.


AutomotiveUsed for environmental durability and quality verification of automotive components.


Plastics & RubberHelps evaluate the stability and environmental resistance of plastic and rubber materials.


Laboratory TestingWidely used in laboratories for research validation, quality control, and test development.

FAQs- Ozone Aging Test Chamber

Q
What is an ozone resistance test chamber?
A
Our ozone resistance test chamber evaluates rubber and polymer materials’ anti-cracking performance under controlled ozone, temperature and humidity conditions for quality verification.
Q
Does your ozone aging test chamber have a safety protection system?
A
Yes. It is equipped with ozone decomposition device, over-temperature alarm and door interlock to protect operators during long-time running.
Q
Can you provide customized size for the ozone aging test chamber?
A
We support custom internal chamber dimensions. Please tell us your sample size, test quantity and space layout for a suitable quotation.
