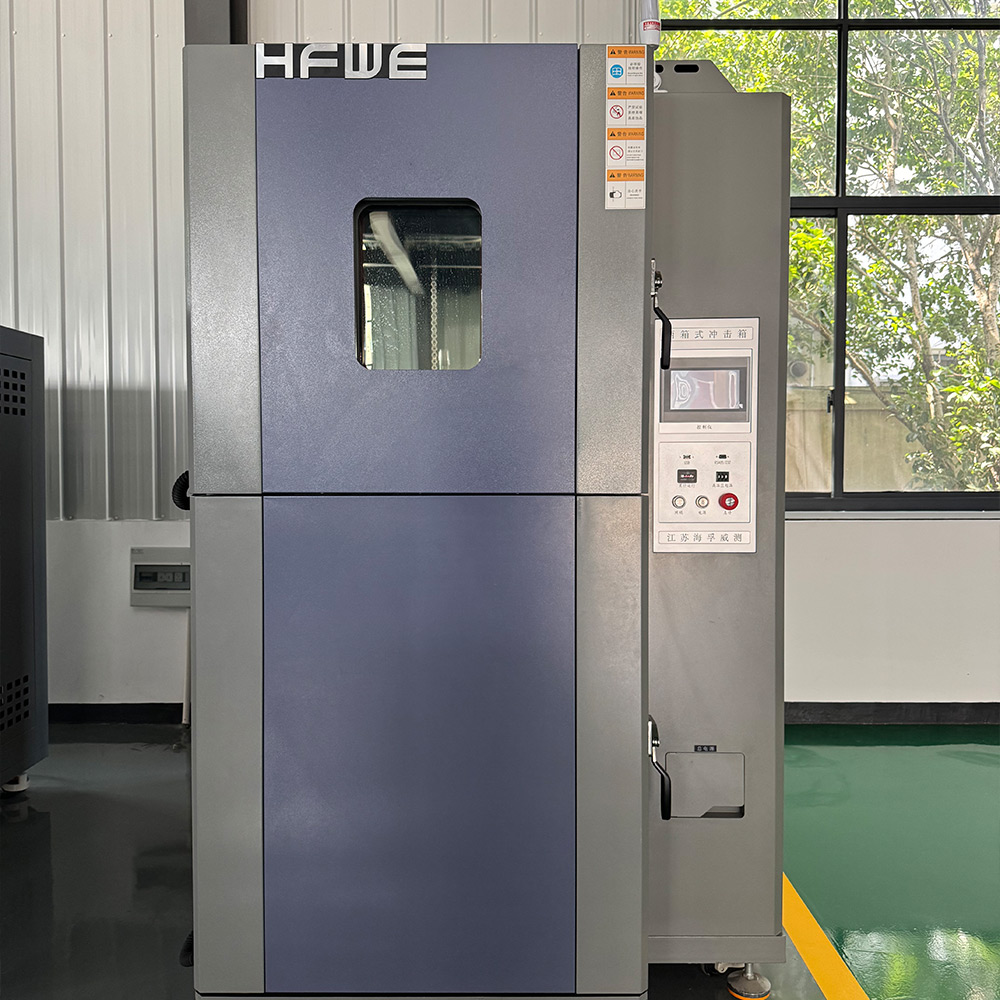

Temperature Shock Test Chamber

thumb img 3 of Temperature Shock Test Chamber

Temperature Shock Test Chamber

The Thermal Shock Test Chamber simulates extreme alternating hot and cold environments to comprehensively evaluate the tolerance and physical stability of products under instantaneous temperature changes. By executing rapid transitions between high and low temperatures, it accelerates the exposure of potential defects caused by thermal expansion and contraction, providing reliable data support for product reliability verification and lifespan prediction.

Key Specifications

Temperature Range: Configurable per model and test requirements.
Chamber Volume: Multiple sizes for different samples and capacities.
Controller: User-friendly system for stable and precise operation.
Power Supply: Standard or customized to local electrical standards.

WhatsApp Now

Product Details
Technical Specifications
Key Advantages
Applications
FAQs

Product Details

Control panel

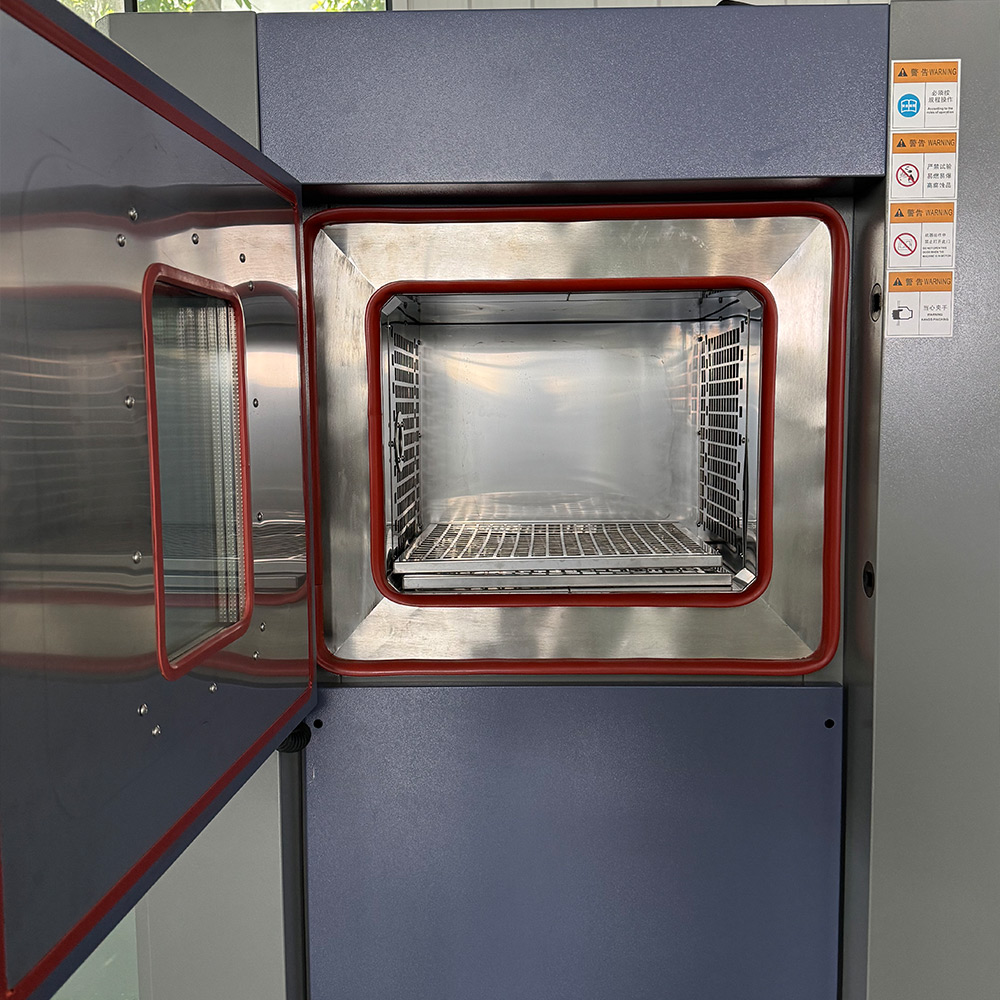

Sealing structure (double rubber rings)

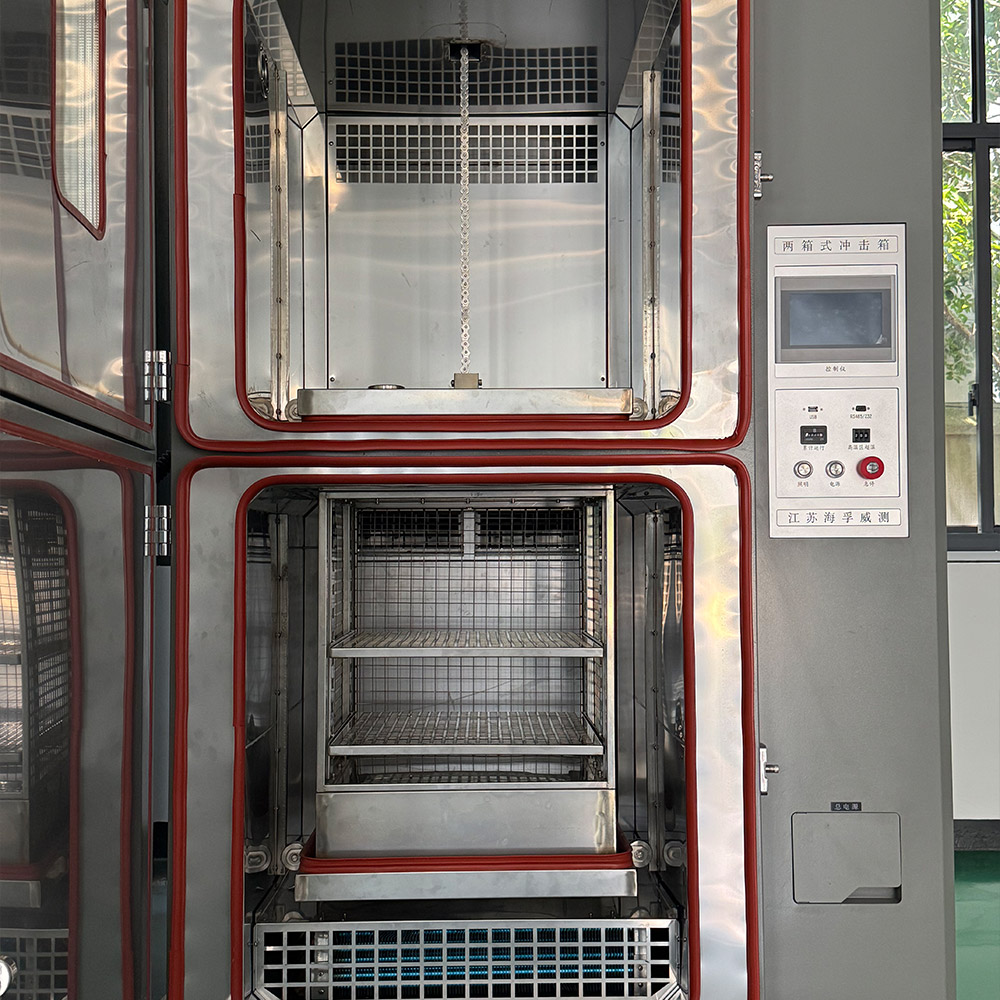

Two-compartment interior

Three-compartment interior

Technical Specifications

Model			3CJ-100S	3CJ-210S	3CJ-300S	3CJ-500S
Performance Index	Preheating Chamber	Max Preheat Temp	200℃
	Preheating Chamber	Temperature Rise Time	Approx.40min from RT to 200℃ (No-load)
	Pre-cooling Chamber	Min Pre-cool Temp	-75℃
	Pre-cooling Chamber	Temperature Drop Time	Approx.90min from RT to -70℃ (No-load)
	Test Chamber	Temperature Shock Range	-20℃, -40℃, -55℃ ~ +180℃
		Temperature Fluctuation	≤±0.5℃
		Temperature Deviation	≤±3℃
	Transfer Time Deviation		≤10S
	Temperature Recovery Time		≤5min
	Temperature Recovery Test & Load Capacity	3JB-100S	High temp +150℃ exposure 30min, normal temp exposure 5min, low temp -55℃ exposure 30min, max sample weight 10Kg
		3JB-210S	High temp +150℃ exposure 30min, normal temp exposure 5min, low temp -55℃ exposure 30min, max sample weight 15Kg
		3JB-300S	High temp +150℃ exposure 30min, normal temp exposure 5min, low temp -55℃ exposure 30min, max sample weight 25Kg
		3JB-500S	High temp +150℃ exposure 30min, normal temp exposure 5min, low temp -55℃ exposure 30min, max sample weight 35Kg
LCD Touch Screen Programmable Controller			Imported oversized 7-inch color touch screen & loop high-precision microcomputer controller, large program memory capacity. Support storing 100 groups of programs, max cycle setting 9999 Cycles, max single segment time 999Hrs 59Mins. Equipped with RS-232C communication port, support computer linkage control / edit / record & 2 groups of dynamic signal relays for easy operation.
Refrigeration System		Cooling Method	Water-cooled semi-closed two-stage cascade refrigeration, air-cooled full-closed binary cascade refrigeration
		Refrigeration Compressor	Semi-closed refrigeration compressor, fully hermetic refrigeration compressor
		Refrigerant	Imported R404A, R23
Driving Device		DC Micro Motor	Drive air damper of high temp chamber, test chamber & low temp chamber during temperature shock
Volume			100 L	210 L	300 L	500 L
Inner Chamber Dimension (mm)		D	500	700	700	900
		W	500	600	780	800
		H	400	500	550	700
Overall Dimension (mm)		D	1150	1350	1350	2500
		W	1950	2100	2250	2250
		H	1950	2200	2300	2150
Power Supply			AC380V 50Hz, Three-phase four-wire + ground wire
Standard Configuration			Built-in double-layer stainless steel plate, independent over-temperature protection, cumulative timer, lighting lamp, 4 casters, 4 liftable support feet, 1 cable hole on left side of cabinet

Product Features

Stable Performance
The equipment is designed for dependable operation and repeatable testing performance.
Accurate Temperature / Humidity Control
The control system helps maintain stable testing conditions for more accurate verification.
Durable Structure
The chamber structure is designed for long-term use in laboratory and industrial environments.
Easy Operation
User-friendly control and accessible design make daily operation and maintenance easier.

Configuration Options

Standard Configuration

Standard Controller:
Standard configuration includes a practical controller for daily testing operation.
Standard Observation Window:
Observation window is available on selected models for convenient monitoring.
Standard Test Port:
Test port can be included for cable routing or sample monitoring when required.

Optional Configuration

Data Logger:
Optional data logging is available for test data recording and management.
Communication Port:
Communication interface can be added for data transfer or remote integration.
Customized Size:
Chamber dimensions can be customized for different sample sizes and capacities.

Applications

Electronics & ElectricalSuitable for performance and reliability testing of electronic and electrical products.

Metal & Surface TreatmentApplicable to corrosion resistance, durability, or aging evaluation of metal parts and coatings.

AutomotiveUsed for environmental durability and quality verification of automotive components.

Plastics & RubberHelps evaluate the stability and environmental resistance of plastic and rubber materials.

Laboratory TestingWidely used in laboratories for research validation, quality control, and test development.

FAQs- Temperature Shock Test Chamber

What is the difference between the two-chamber (basket-transfer) type and the three-chamber (damper-switching) type?

In the two-chamber type, a basket physically moves between chambers, resulting in rapid thermal shock; in the three-chamber type, the sample remains stationary while dampers switch the airflow, making it suitable for precision products or testing under powered conditions.

Can the temperatures in the high- and low-temperature zones be set without limits?

No. Typically, the low-temperature limit ranges from -40°C to -60°C, and the high-temperature limit ranges from 150°C to 200°C; the exact limits depend on the specific equipment model selected.

Can the sample be powered on during thermal shock testing?

It depends on the testing requirements. The equipment supports powered testing, but load capacity and cable access port configurations must be confirmed in advance to evaluate the reliability of electronic products operating under extreme temperature differentials.
