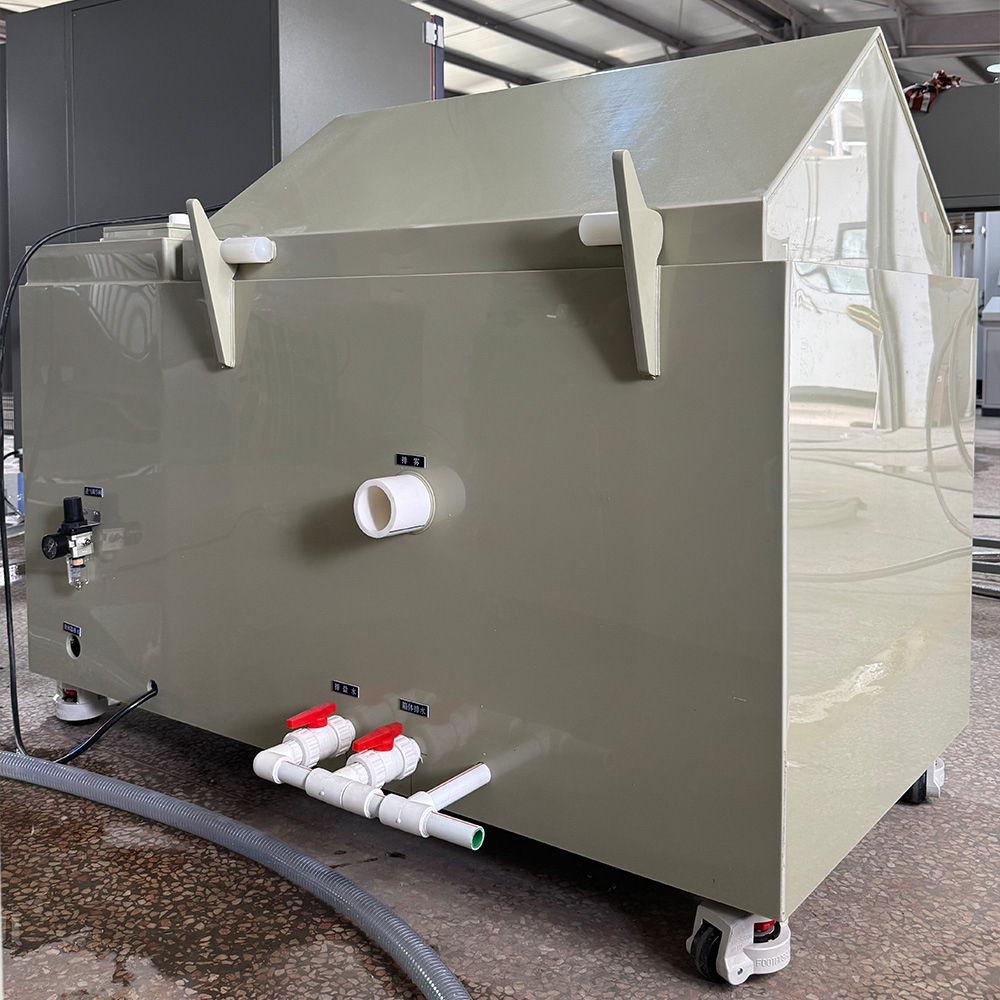

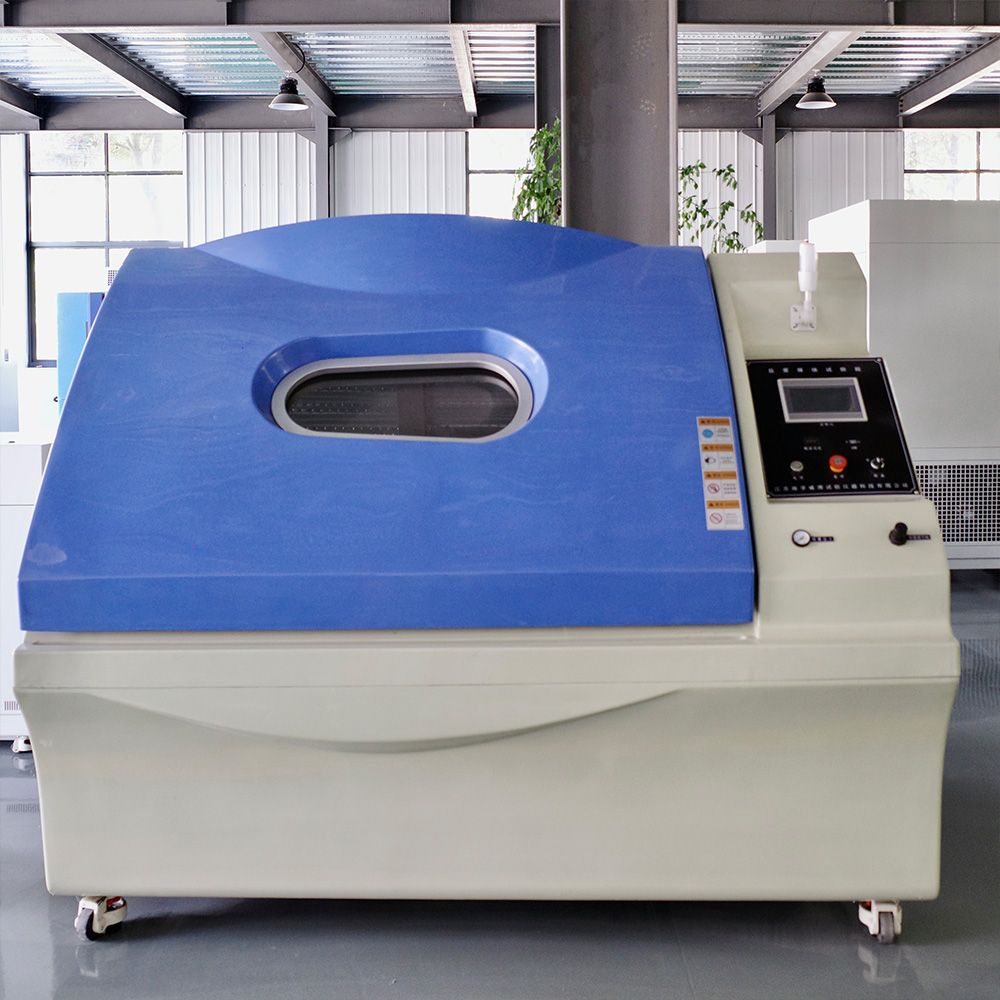

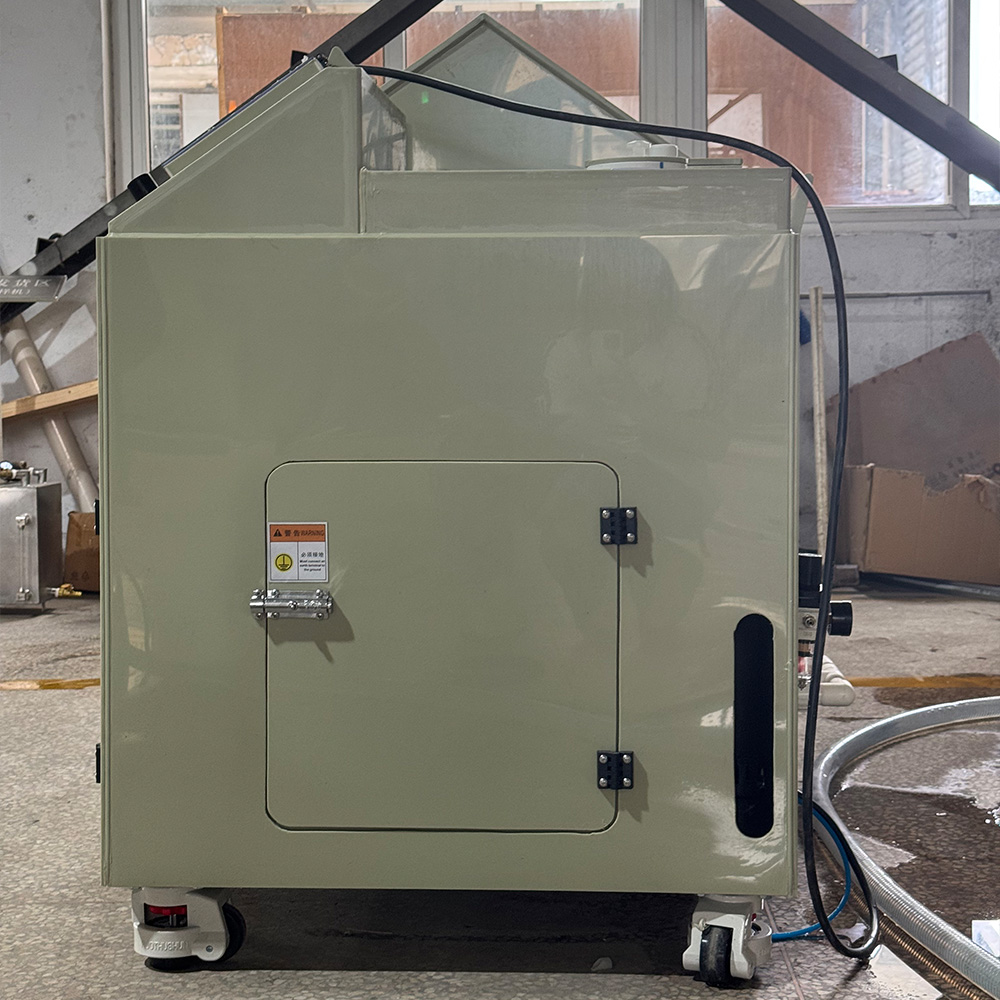

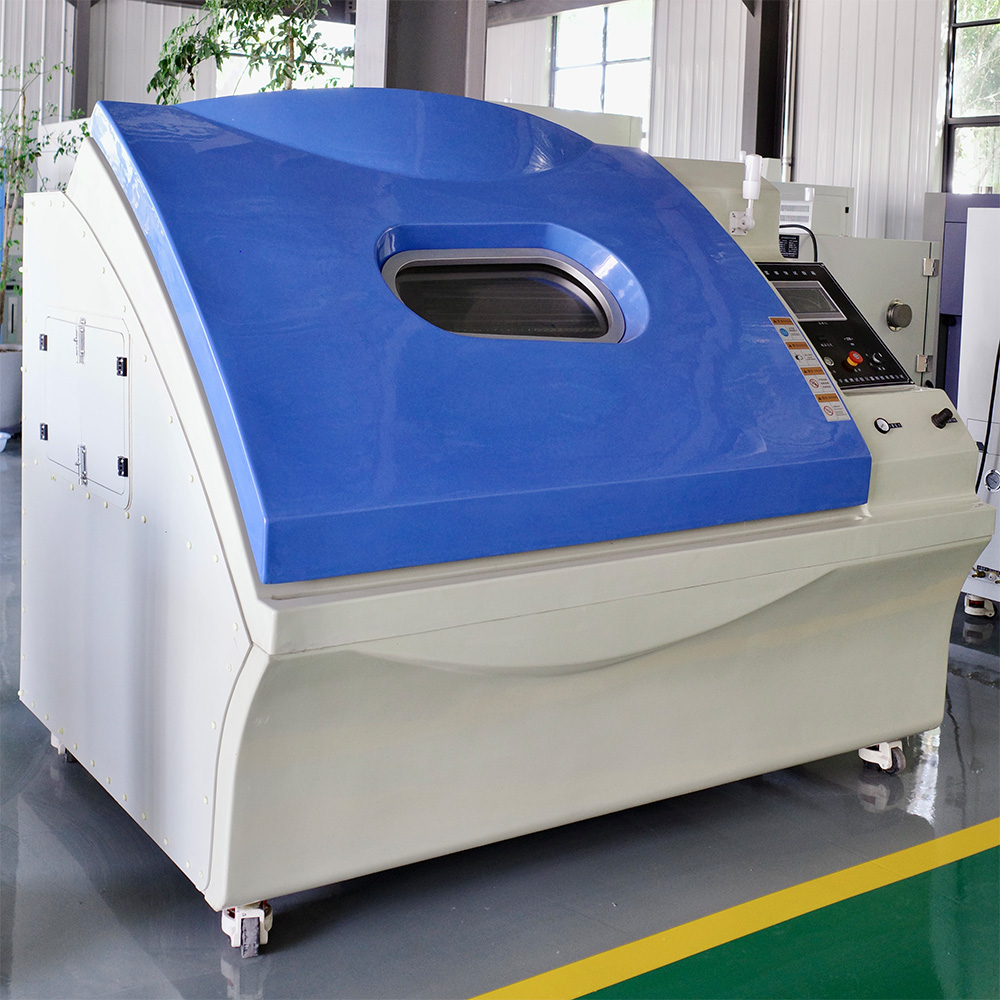

Singleton Salt Fog Chamber

Singleton Salt Fog Chamber

The singleton salt fog chamber simulates marine or salt-laden atmospheric environments to evaluate the corrosion resistance of metal materials, electronic components, and surface coatings (such as electroplating and paint). It precisely controls constant salt spray concentration, temperature, and humidity within a sealed enclosure to accelerate sample aging, providing reliable evidence for R&D in protective processes, quality control, and lifespan prediction.


Key Specifications

  • Temperature Range: Configurable per model and test requirements.

  • Chamber Volume: Multiple sizes for different samples and capacities.

  • Controller: User-friendly system for stable and precise operation.

  • Power Supply: Standard or customized to local electrical standards.

WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Product Details
  • Technical Specifications
  • Key Advantages
  • Applications
  • FAQs

The singleton salt fog chamber from Haifuwei evaluates corrosion-sensitive materials — metal components, plated parts, painted surfaces, and protective coatings — inside a sealed enclosure where salt fog concentration, temperature (ambient +5℃ to 55℃), and deposition rate (1–2 ml/80cm²·h) are held constant. Six capacities from 150 L to 2000 L support continuous and cyclic spray modes with adjustable timing.


Built on an anti-corrosion PP chamber with tower spray and non-crystallizing nozzles, every singleton salt fog chamber delivers repeatable accelerated aging data for R&D, quality control, and lifespan prediction.


From standard models to customized sizes, materials, and automation options, Haifuwei helps you match a singleton salt fog chamber to your test standards and laboratory workflow — with technical guidance available at every step.


Product Details

壁挂式喷雾箱体内部图

Interior view of wall-mounted spray chamber

水入口

Water inlet

塔式喷雾箱体内部图

Interior view of tower-style spray chamber

样品架

Sample rack

按键式仪表

Push-button controller

触摸屏仪表

Touchscreen controller

气缸(010以上型号配备)

Pneumatic cylinder (equipped on models 010 and above)

塔式喷雾

Tower-style spray

Technical Specifications

ModelYWX/Q-150(B)YWX/Q-250(B)YWX/Q-750(B)YWX/Q-010(B)YWX/Q-016(B)YWX/Q-020(B)
Inner Chamber Size D×W×H450×600×400600×900×500750×1100×500850×1300×600850×1600×600900×2000×600
Overall Dimension D×W×H700×1070×1050870×1400×11501030×1680×12601160×2000×13901210×2200×14401260×2600×1490
Performance IndexTemperature RangeAmbient Temp.+5℃ ~ 55℃
Temperature Deviation≤±2℃
Temperature Fluctuation≤±0.5℃
Salt Spray Sedimentation Rate1~2ml/80cm²·h
Spray ModeContinuous / Cycle Optional
Test Timer1~999 (S, M, H) Adjustable
Temperature & Humidity Operation Control SystemTemperature ControllerLED Digital P.I.D+S.S.R Microcomputer Integrated Controller or Color Touch Screen Controller
Temperature & Humidity SensorPlatinum Resistance PT100Ω/MV
Heating SystemIndependent System, Nickel-Chromium Alloy Electric Heater
Spray SystemTower Spray Device with Non-Crystallizing Nozzle (Finer mist & uniform distribution)
Spray Duration1~99 (S, M, H) Cycle Adjustable
Salt Solution CollectionEquipped with Standard Funnel & Graduated Cylinder
Outer Cabinet MaterialImported Anti-Corrosion, High-Strength, High-Temperature Resistant PP Plate
Inner Chamber MaterialImported Anti-Corrosion, High-Strength, High-Temperature Resistant PP Plate
Cover MaterialImported Anti-Corrosion High-Strength Transparent PVC Plate / Imported Anti-Corrosion High-Temp Resistant PP Plate
Other AccessoriesAll stainless steel, copper or anti-corrosion & high-temperature resistant materials
Standard Accessories1 set of round bar & V-type sample rack, 2 spray nozzles, funnel, 2 sets graduated cylinders
Safety ProtectionLeakage, Short Circuit, Overheat, Water Shortage, Test Completion, Overcurrent Protection / Power-off Memory for Controller
Power Supply VoltageAC220V±10% 50HZAC380V±10% 50HZ
Ambient Operating Temperature5℃ ~ +30℃, ≤85% RH
Optional Chamber Materials1. PP Plastic Plate; 2. FRP (Fiberglass Reinforced Plastic); 3. 2507 Anti-Corrosion Stainless Steel Plate

Product Features

  • Safety1.png

    Multi-Standard Method Compatibility

    By matching salt solution preparation, temperature, and spray mode to the applicable standard, this singleton salt fog chamber runs neutral, acetic acid, and copper-accelerated programs on a single platform — so one unit serves several test requirements in the same laboratory.
  • Temperature-Control.png

    Six Capacities to Choose From

    From 150 L benchtop work to the 2000 L production-scale model, the singleton salt fog chamber range covers small specimen batches through large finished parts, letting you match chamber volume to sample size and daily testing volume.
  • Durable-Structure.png

    Automation-Ready Data Options

    An optional data logger records every test parameter for documentation and traceability, while the communication port allows integration with laboratory systems — turning the singleton salt fog chamber into part of an automated quality process rather than a standalone device.
  • Easy-Operation.png

    Full-View Transparent Cover

    The transparent PVC or PP cover gives a clear view of samples and mist distribution throughout the run, so operators can check progress on the singleton salt fog chamber without opening the enclosure and interrupting conditions.
  • Support-Customization.png

    Quick-Drain Low-Downtime Design

    Proper drainage and accessible inspection points simplify chamber cleaning, nozzle checks, and solution changes, so the singleton salt fog chamber spends less time on maintenance and more time producing consistent test results.

Configuration Options

Standard Configuration
  • Standard Controller:

    Standard configuration includes a practical controller for daily testing operation.

  • Standard Observation Window:

    Observation window is available on selected models for convenient monitoring.

Optional Configuration
  • Data Logger:

    Optional data logging is available for test data recording and management.

  • Communication Port:

    Communication interface can be added for data transfer or remote integration.

  • Special Material:

    Special chamber material can be selected based on test media or corrosion requirements.

  • Customized Size:

    Chamber dimensions can be customized for different sample sizes and capacities.

  • Non-standard Design:

    Non-standard structure design is available for special testing applications.

Applications


Renewable Energy ComponentsSolar panel frames, battery enclosures, and wind turbine hardware installed in coastal or humid regions are validated in a singleton salt fog chamber, confirming that protective coatings and anodized surfaces hold up over long service periods.


Rail Transit & InfrastructureRolling stock interiors, platform hardware, and trackside electrical cabinets face salt-laden air in coastal metro and rail networks; a singleton salt fog chamber screens their coatings and plated fittings for long-term corrosion resistance.


Outdoor Lighting & LED FixturesStreet lamps, floodlights, and architectural luminaires are exposed year-round to marine atmospheres. Testing housings, reflectors, and fasteners in a singleton salt fog chamber verifies that finishes will not stain, pit, or seize.


Medical Devices & EquipmentStainless-steel instruments, housings, and chassis components for hospitals in humid climates are evaluated in a singleton salt fog chamber to demonstrate coating integrity and corrosion-free surfaces demanded by healthcare quality systems.


Multi-Material Test ProgramsBecause metals, plated parts, painted surfaces, and organic coatings can all be tested in the same singleton salt fog chamber, contract laboratories and research teams run mixed-material comparison studies under one controlled salt fog environment.

FAQs- Singleton Salt Fog Chamber

Q
What materials can be tested in a singleton salt fog chamber?
A
A singleton salt fog chamber can test metal components, plated parts, painted surfaces, protective coatings, and other corrosion-sensitive materials. The appropriate test method depends on the material, coating type, applicable standards, and specific testing requirements.
Q
How do you choose a suitable singleton salt fog chamber?
A
When selecting a singleton salt fog chamber, consider the required test standards, chamber capacity, temperature control, salt solution preparation, spray uniformity, and automation features. Matching these factors to your testing needs helps ensure reliable results and efficient laboratory operation.
Q
How should a singleton salt fog chamber be maintained?
A
Regular maintenance includes cleaning the chamber, inspecting spray nozzles, checking temperature control, and verifying salt solution concentration. Proper drainage and routine inspection help prevent blockages, reduce downtime, and maintain consistent testing conditions over the equipment's service life.
