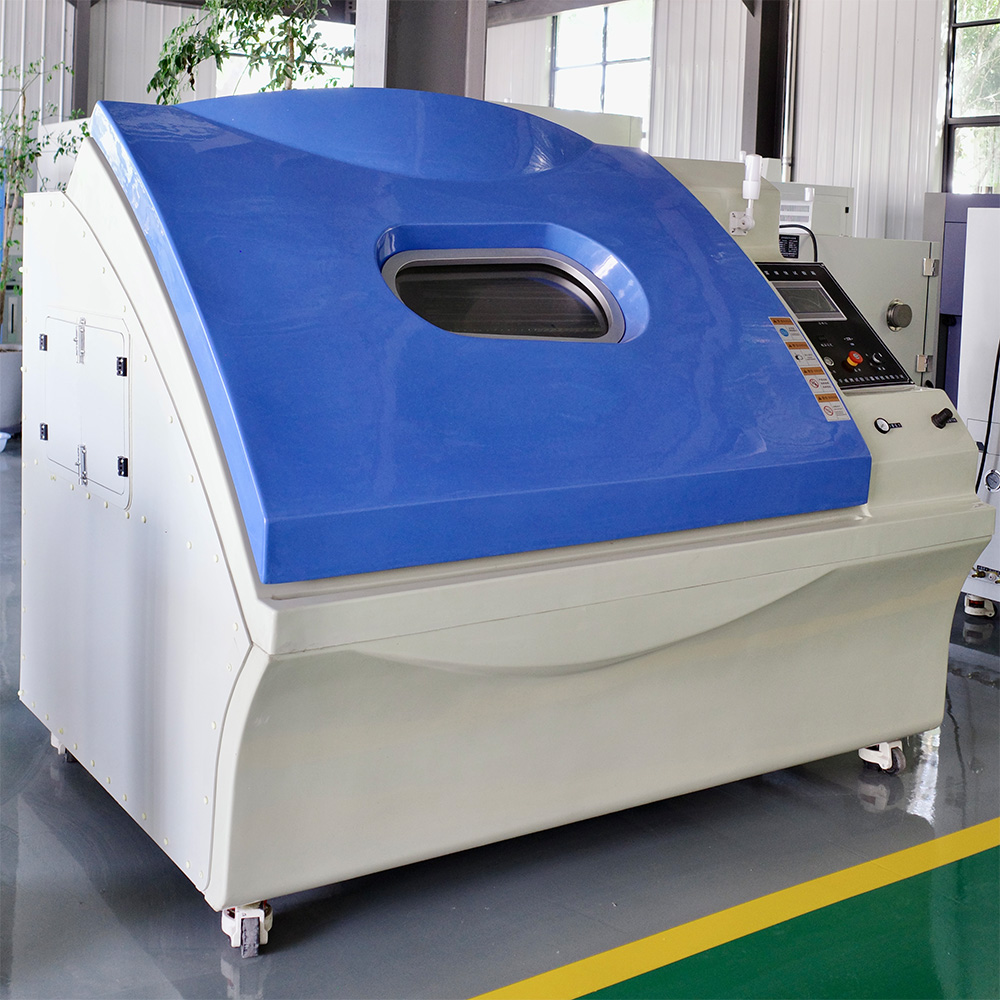

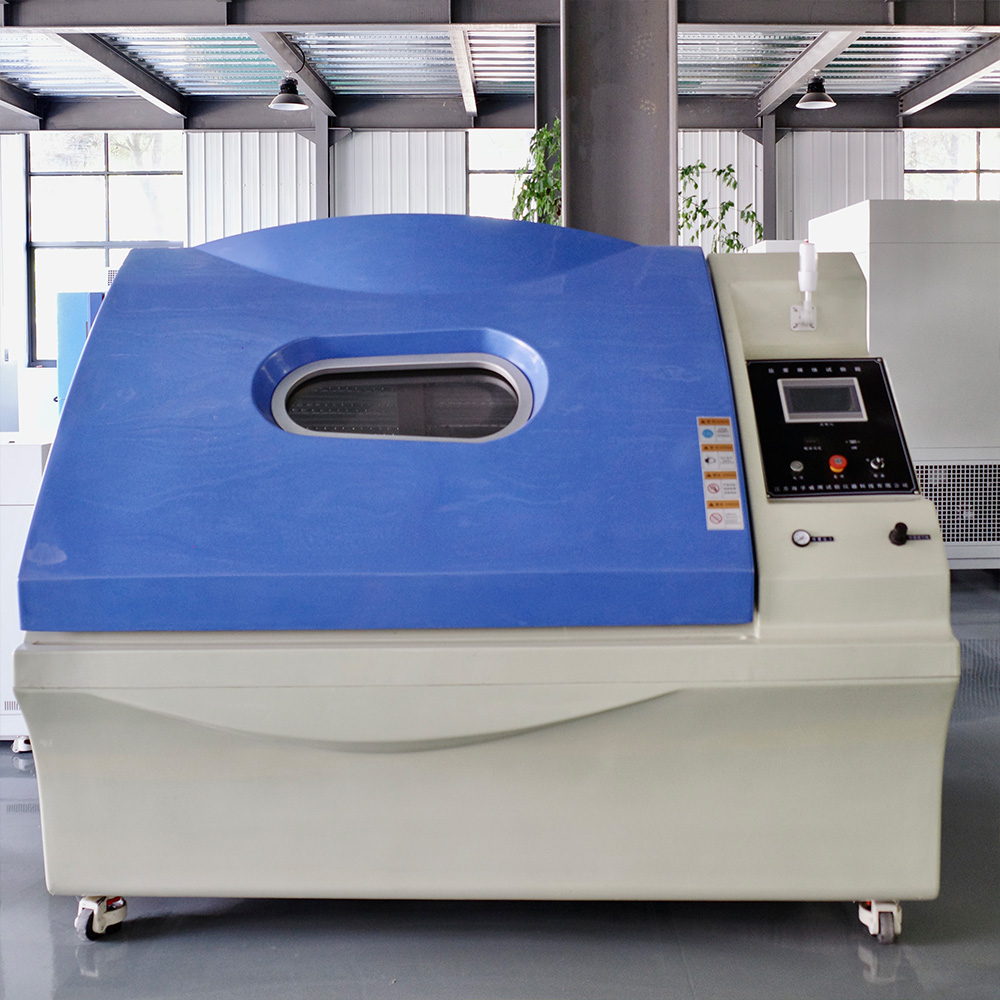

The singleton corrosion test chamber simulates marine or salt-laden atmospheric environments to evaluate the corrosion resistance of metal materials, electronic components, and surface coatings (such as electroplating and paint). It precisely controls constant salt spray concentration, temperature, and humidity within a sealed enclosure to accelerate sample aging, providing reliable evidence for R&D in protective processes, quality control, and lifespan prediction.


Key Specifications

  • Temperature Range: Configurable per model and test requirements.

  • Chamber Volume: Multiple sizes for different samples and capacities.

  • Controller: User-friendly system for stable and precise operation.

  • Power Supply: Standard or customized to local electrical standards.

WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Product Details
  • Technical Specifications
  • Key Advantages
  • Applications
  • FAQs

The singleton corrosion test chamber from Haifuwei simulates salt-laden atmospheric environments inside a sealed enclosure, precisely controlling spray concentration, temperature (ambient +5℃ to 55℃), and deposition rate (1–2 ml/80cm²·h) to accelerate corrosion of metals, coatings, and plated parts. Six models from 150 L to 2000 L cover continuous and cyclic spray modes with fully adjustable timing.


Every singleton corrosion test chamber is factory pre-calibrated before shipment, and its anti-corrosion PP chamber with tower spray and non-crystallizing nozzles delivers repeatable, standards-based results cycle after cycle.


Whether you verify finished parts in automotive, aerospace, fastener, electronics, or coating production, a singleton corrosion test chamber from Haifuwei provides reliable evidence for quality control, process development, and lifespan prediction — supported by spare parts supply and online after-sales service.


Product Details

壁挂式喷雾箱体内部图

Interior view of wall-mounted spray chamber

水入口

Water inlet

塔式喷雾箱体内部图

Interior view of tower-style spray chamber

样品架

Sample rack

按键式仪表

Push-button controller

触摸屏仪表

Touchscreen controller

气缸(010以上型号配备)

Pneumatic cylinder (equipped on models 010 and above)

塔式喷雾

Tower-style spray

Technical Specifications

ModelYWX/Q-150(B)YWX/Q-250(B)YWX/Q-750(B)YWX/Q-010(B)YWX/Q-016(B)YWX/Q-020(B)
Inner Chamber Size D×W×H450×600×400600×900×500750×1100×500850×1300×600850×1600×600900×2000×600
Overall Dimension D×W×H700×1070×1050870×1400×11501030×1680×12601160×2000×13901210×2200×14401260×2600×1490
Performance IndexTemperature RangeAmbient Temp.+5℃ ~ 55℃
Temperature Deviation≤±2℃
Temperature Fluctuation≤±0.5℃
Salt Spray Sedimentation Rate1~2ml/80cm²·h
Spray ModeContinuous / Cycle Optional
Test Timer1~999 (S, M, H) Adjustable
Temperature & Humidity Operation Control SystemTemperature ControllerLED Digital P.I.D+S.S.R Microcomputer Integrated Controller or Color Touch Screen Controller
Temperature & Humidity SensorPlatinum Resistance PT100Ω/MV
Heating SystemIndependent System, Nickel-Chromium Alloy Electric Heater
Spray SystemTower Spray Device with Non-Crystallizing Nozzle (Finer mist & uniform distribution)
Spray Duration1~99 (S, M, H) Cycle Adjustable
Salt Solution CollectionEquipped with Standard Funnel & Graduated Cylinder
Outer Cabinet MaterialImported Anti-Corrosion, High-Strength, High-Temperature Resistant PP Plate
Inner Chamber MaterialImported Anti-Corrosion, High-Strength, High-Temperature Resistant PP Plate
Cover MaterialImported Anti-Corrosion High-Strength Transparent PVC Plate / Imported Anti-Corrosion High-Temp Resistant PP Plate
Other AccessoriesAll stainless steel, copper or anti-corrosion & high-temperature resistant materials
Standard Accessories1 set of round bar & V-type sample rack, 2 spray nozzles, funnel, 2 sets graduated cylinders
Safety ProtectionLeakage, Short Circuit, Overheat, Water Shortage, Test Completion, Overcurrent Protection / Power-off Memory for Controller
Power Supply VoltageAC220V±10% 50HZAC380V±10% 50HZ
Ambient Operating Temperature5℃ ~ +30℃, ≤85% RH
Optional Chamber Materials1. PP Plastic Plate; 2. FRP (Fiberglass Reinforced Plastic); 3. 2507 Anti-Corrosion Stainless Steel Plate

Product Features

  • Safety1.png

    Factory Pre-Calibration Delivery

    Every singleton corrosion test chamber is fully calibrated and verified at the factory before shipment, so installation only requires positioning and connection — and your first test cycle already produces trustworthy, comparable data.
  • Temperature-Control.png

    Annual Calibration for Repeatability

    Regular verification of saline concentration, temperature sensor, and door seals, combined with annual calibration, ensures this singleton corrosion test chamber maintains the same spray conditions and test repeatability year after year.
  • Durable-Structure.png

    Nozzle and Cavity Care

    The nozzle and inner cavity are easily accessible for regular cleaning that prevents salt crystallization and blockage, keeping the mist distribution and sedimentation rate of this singleton corrosion test chamber within specification.
  • Easy-Operation.png

    Sealed Enclosure Test Environment

    Samples age inside a fully sealed, corrosion-resistant enclosure where temperature and spray concentration stay constant — this singleton corrosion test chamber protects both your samples and the surrounding laboratory from salt mist.
  • Support-Customization.png

    Responsive After-Sales Support

    Technical guidance, spare parts supply, and online troubleshooting are available throughout the service life of your singleton corrosion test chamber, so a stalled test never waits on missing expertise.

Configuration Options

Standard Configuration
  • Standard Controller:

    Standard configuration includes a practical controller for daily testing operation.

  • Standard Observation Window:

    Observation window is available on selected models for convenient monitoring.

Optional Configuration
  • Data Logger:

    Optional data logging is available for test data recording and management.

  • Communication Port:

    Communication interface can be added for data transfer or remote integration.

  • Special Material:

    Special chamber material can be selected based on test media or corrosion requirements.

  • Customized Size:

    Chamber dimensions can be customized for different sample sizes and capacities.

  • Non-standard Design:

    Non-standard structure design is available for special testing applications.

Applications


Aerospace & Aviation ComponentsAirframe fittings, avionics housings, and hydraulic hardware must survive humid, salt-laden service environments; a singleton corrosion test chamber verifies their protective treatments with accelerated, evidence-based testing.


Vehicle & Machinery Supply ChainsTier-one suppliers to automotive and construction machinery brands use a singleton corrosion test chamber to release finished parts and surface treatments batch by batch before shipment.


Hardware Fasteners & FittingsScrews, rivets, anchors, and structural fittings are screened in routine batch checks, where the singleton corrosion test chamber quickly flags plating or passivation failures before products reach customers.


Consumer Electronics & DevicesHousings, hinges, and plated decorative parts of phones, wearables, and outdoor devices are evaluated in a singleton corrosion test chamber to confirm they withstand coastal and humid daily-use environments.


Surface Treatment R&D LabsProcess engineers developing new plating, passivation, and sealing chemistries rely on the singleton corrosion test chamber to compare performance and validate improvements with repeatable accelerated corrosion data.

FAQs- Singleton Corrosion Test Chamber

Q
Which industries commonly use the singleton corrosion test chamber?
A
It is widely applied in automotive, aerospace, hardware fastener, electronics and coating industries to verify anti-corrosion performance of finished parts and surface treatments.
Q
What regular maintenance does a singleton corrosion test chamber require?
A
Clean the nozzle and inner cavity regularly to avoid salt crystallization. Check saline concentration, temperature sensor and seals, and conduct annual calibration to guarantee test repeatability.
Q
What is the delivery and after-sales service for your singleton corrosion test chamber?
A
We provide factory pre-calibration before shipment. Technical guidance, spare parts supply and online troubleshooting are available to help customers operate and maintain the chamber smoothly.
