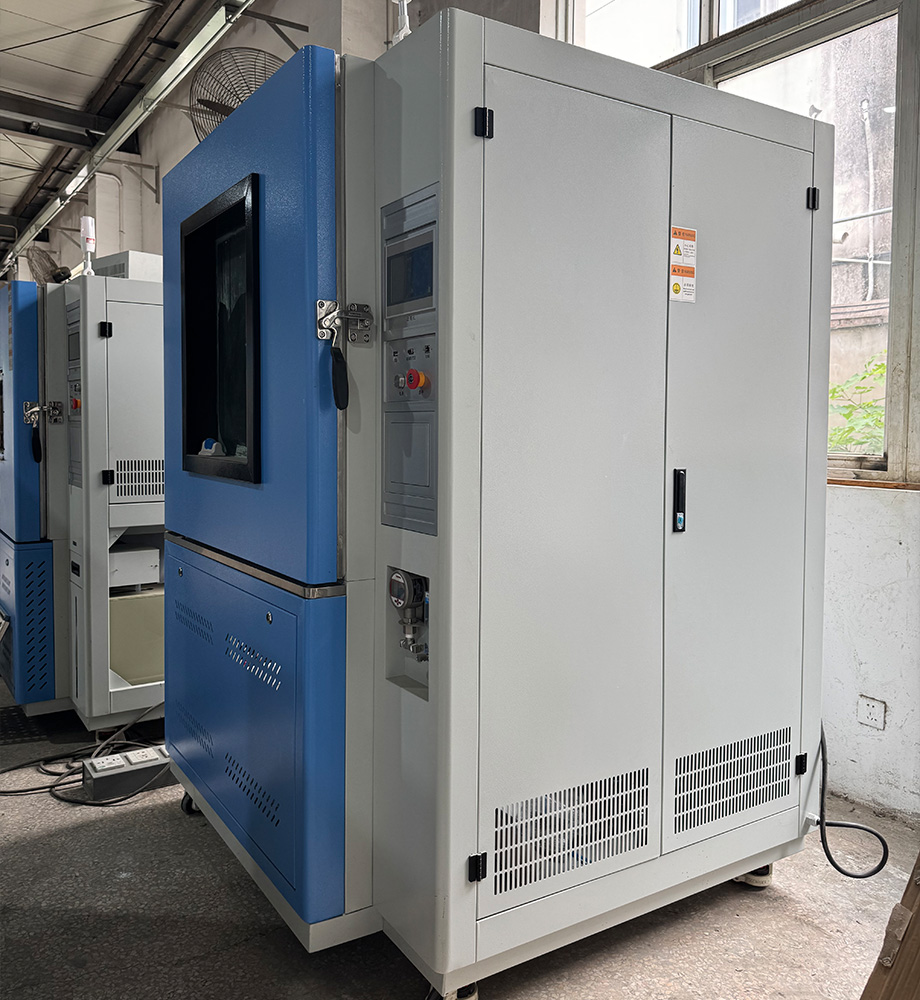

Dustproof Test Chamber

The dustproof test chamber is specialized equipment used to verify the dust resistance performance of products. It simulates dusty working environments to check if solid particles can penetrate into test samples, helping manufacturers assess product sealing quality.This dustproof test chamber complies with common IP dust test standards. It can stably control dust concentration and test duration. Widely applied in electronics, automotive parts and electrical industries, it provides reliable test data for product R&D and quality inspection, ensuring products can work normally under dusty field conditions.

Key Specifications

Temperature Range: Configurable per model and test requirements.
Chamber Volume: Multiple sizes for different samples and capacities.
Controller: User-friendly system for stable and precise operation.
Power Supply: Standard or customized to local electrical standards.

WhatsApp Now

Product Details
Technical Specifications
Key Advantages
Applications
FAQs

Product Details

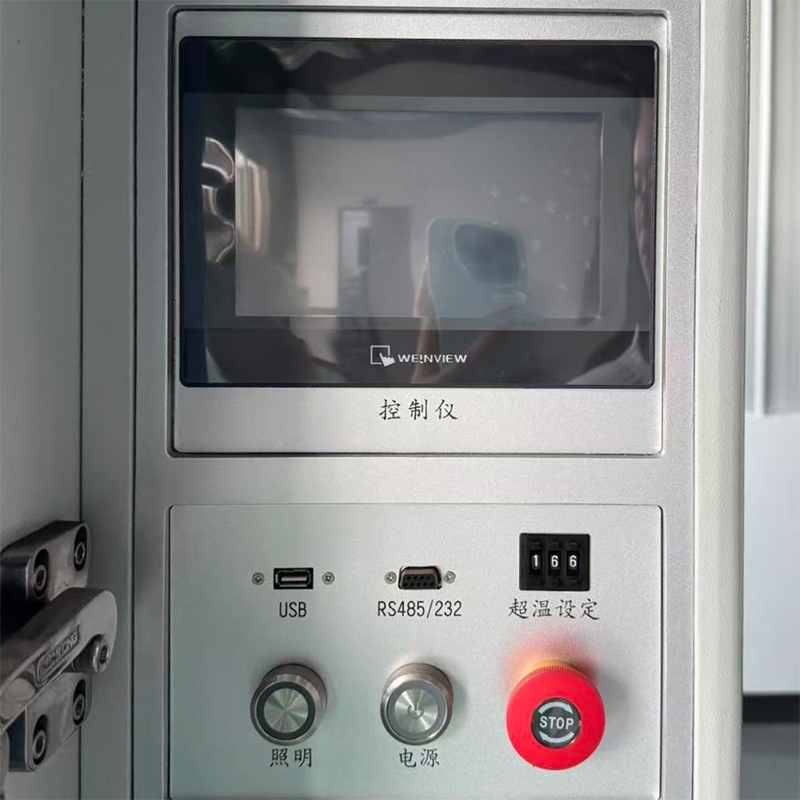

Control panel

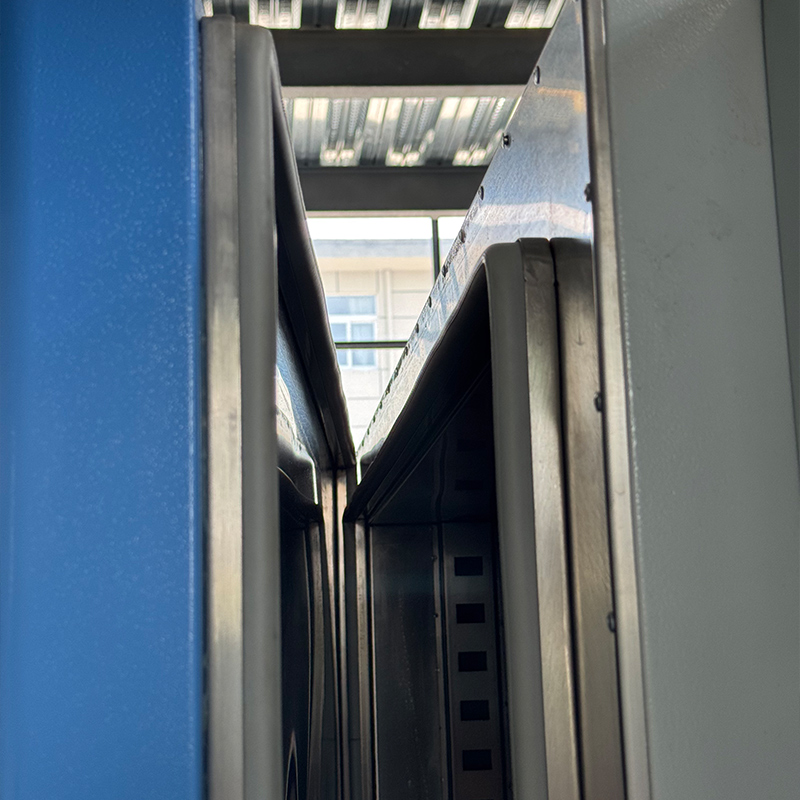

Diagram of sealing structure (dual O-rings)

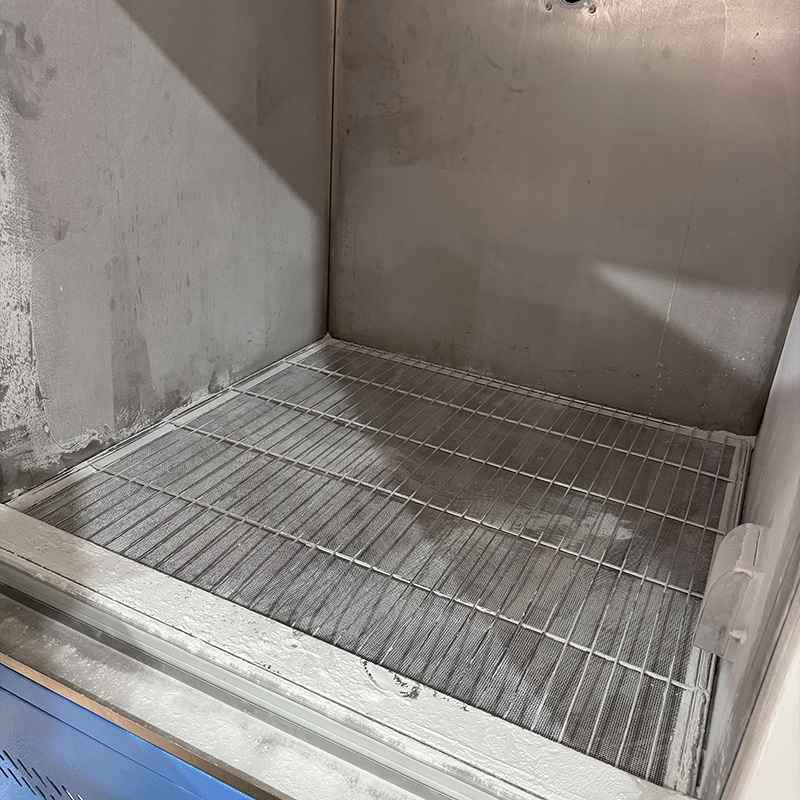

Diagram of sample shelf

Technical Specifications

Model		SC-500	SC-800	SC-1000	SC-1500	SC-2000
Inner Chamber Size D×W×H		800×800×800	800×1000×1000	1000×1000×1000	1000×1500×1000	1200×1800×1200
Overall Dimension D×W×H		1050×1220×1550	1050×1420×1820	1250×1420×1850	1250×1920×1820	1450×2220×2180
Basic Test Parameters	Metal Wire Mesh Diameter	50um
	Nominal Wire Spacing	75um
	Talc Powder Dosage	2kg～4kg/m³
	Vibration Duration	0～99H59M
	Fan Cycle Time	0～99H59M
	Test Piece Power Socket	Dust-proof Socket AC220V 16A
Operation Control System	Controller	Import programmable touch screen with Chinese dialogue display, microcomputer integrated controller, equipped with RS232/485 remote communication
	Vacuum System	Equipped with pressure gauge, air filter, pressure regulating three-unit combination and connecting pipe (vacuum pump supplied separately, please specify when ordering)
	Circulation Fan	Closed alloy low-noise motor, multi-blade centrifugal fan
	Dust Heating System	Stainless steel mica sheet heating sleeve
Safety Protection		Leakage, short circuit, over-temperature, over-current protection / controller power-off memory function

Notes:

1. This test chamber meets the shell protection grade test requirements for household appliances, low-voltage electrical appliances, automobile and motorcycle parts specified in GB2423, GB4706, GB4208 and DIN standards.

2. If military standard sand and dust test conforming to GJB150.12 is required, technical parameters shall be formulated separately.

Product Features

Stable Performance
The equipment is designed for dependable operation and repeatable testing performance.
Accurate Temperature / Humidity Control
The control system helps maintain stable testing conditions for more accurate verification.
Durable Structure
The chamber structure is designed for long-term use in laboratory and industrial environments.
Easy Operation
User-friendly control and accessible design make daily operation and maintenance easier.
Support Customization
Standard models and customized solutions are both available for different project requirements.

Configuration Options

Standard Configuration

Standard Controller:
Standard configuration includes a practical controller for daily testing operation.
Standard Observation Window:
Observation window is available on selected models for convenient monitoring.
Standard Test Port:
Test port can be included for cable routing or sample monitoring when required.

Optional Configuration

Data Logger:
Optional data logging is available for test data recording and management.
Communication Port:
Communication interface can be added for data transfer or remote integration.
Special Material:
Special chamber material can be selected based on test media or corrosion requirements.
Customized Size:
Chamber dimensions can be customized for different sample sizes and capacities.
Non-standard Design:
Non-standard structure design is available for special testing applications.

Applications

Electronics & ElectricalSuitable for performance and reliability testing of electronic and electrical products.

Metal & Surface TreatmentApplicable to corrosion resistance, durability, or aging evaluation of metal parts and coatings.

AutomotiveUsed for environmental durability and quality verification of automotive components.

Plastics & RubberHelps evaluate the stability and environmental resistance of plastic and rubber materials.

Laboratory TestingWidely used in laboratories for research validation, quality control, and test development.

FAQs- Dustproof Test Chamber

Is the dust used for testing ordinary household dust?

No. Standard talcum powder is typically used because its particle size is controllable, it flows well, and it does not clump easily, ensuring the accuracy of the test results.

What is the difference between IP5X and IP6X?

IP5X allows a small amount of dust to enter, provided it does not affect the device's normal operation; IP6X requires complete dust protection, meaning no visible dust is allowed inside after the test.

Why is a vacuum drawn inside the chamber during testing?

A vacuum is drawn to create negative pressure inside the device, simulating real-world conditions where external dust is "sucked" into the casing as the device heats up during operation or when its fans are running.
