Ozone Aging Test Chamber

The Ozone Aging Test Chamber simulates atmospheric ozone environments to evaluate the crack resistance and aging performance of materials like rubber and plastics. It precisely controls constant ozone concentration, temperature, and humidity within a sealed enclosure, providing reliable testing data for material R&D, quality control, and lifespan prediction.

Key Specifications

Temperature Range: Configurable per model and test requirements.
Chamber Volume: Multiple sizes for different samples and capacities.
Controller: User-friendly system for stable and precise operation.
Power Supply: Standard or customized to local electrical standards.

WhatsApp Now

Product Details
Technical Specifications
Key Advantages
Applications
FAQs

Product Details

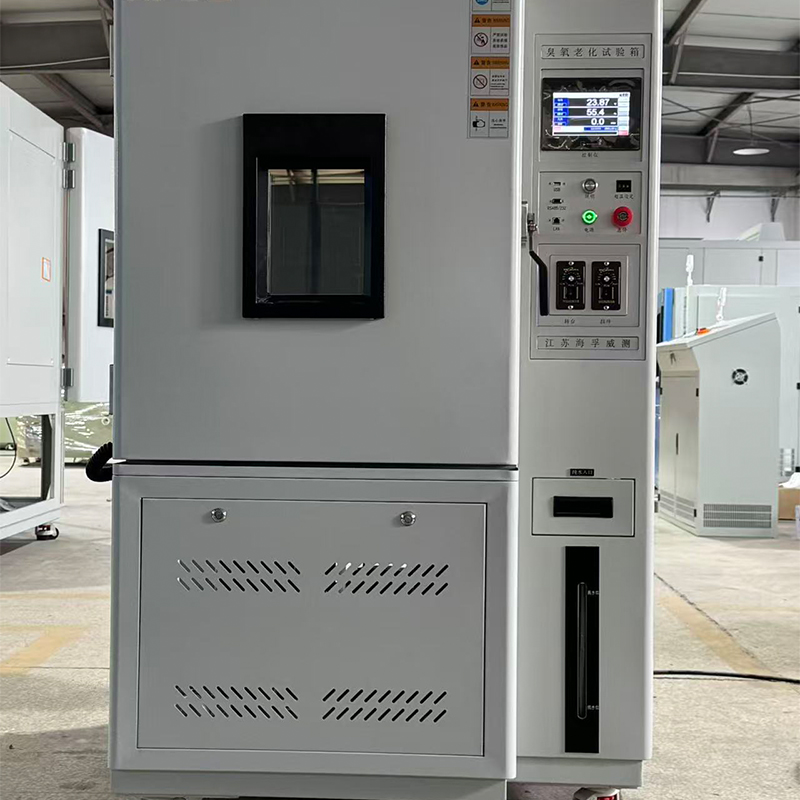

Main Equipment Image

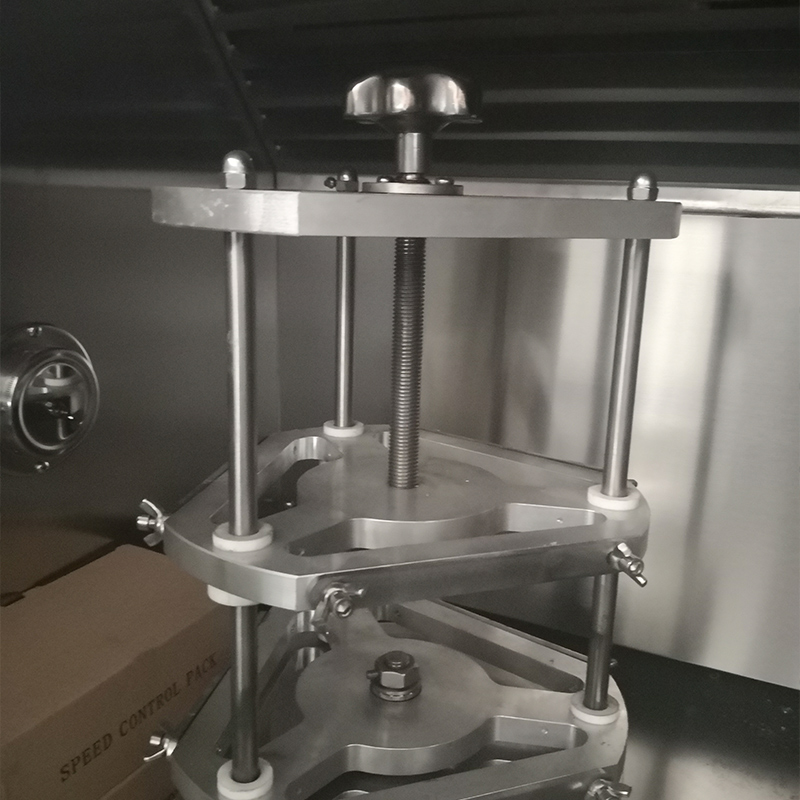

Sample Holder

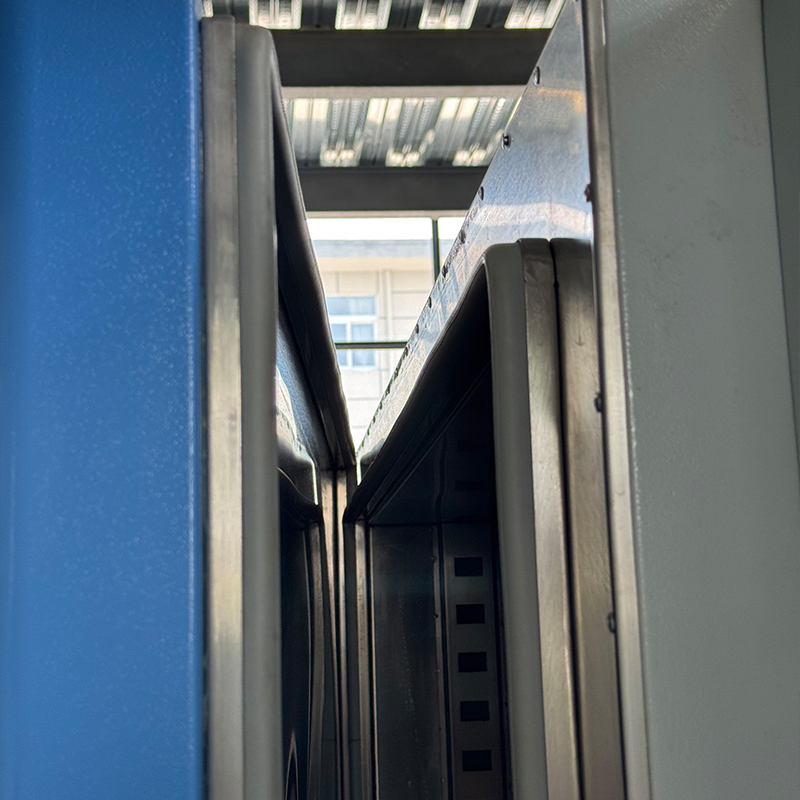

Sealing Structure (Double O-rings)

Technical Specifications

Model		AQL-100	AQL-250	AQL-500	AQL-010
Inner Chamber Size D×W×H		450×450×500	500×600×750	700×800×900	1000×1000×1000
Overall Dimension D×W×H		1050×870×1560	1120×1020×1810	1320×1250×1950	1600×1450×2080
Performance Index	Temperature Range	0℃～70℃
	Humidity Range	50%RH～70%RH
	Ozone Concentration	10~500ppm / 20~1000pphm
	Temperature Fluctuation	±0.5℃
	Test Mode	Dynamic / Static (Optional)
	Sample Rack Rotation Speed	360° rotating sample rack (1 rotation per minute)
	Gas Flow Velocity	12～16mm/s
	Sample Rack Elongation Rate	5%～80%
Operation Control System	Sample Rack Stretch Frequency	0.5～2Hz
	Touch Screen Controller	Programmable touch screen with Chinese dialogue display, microcomputer integrated controller, directly displays internal temperature, humidity, ozone concentration and time
	Ozone Concentration Analyzer	Imported concentration regulating analyzer, 4~20mA output, RS232 communication port
	Ozone Generator	Imported silent discharge tube type
Safety Protection		Leakage, short circuit, over temperature, motor overheat and overcurrent protection

Product Features

Stable Performance
The equipment is designed for dependable operation and repeatable testing performance.
Accurate Temperature / Humidity Control
The control system helps maintain stable testing conditions for more accurate verification.
Durable Structure
The chamber structure is designed for long-term use in laboratory and industrial environments.
Easy Operation
User-friendly control and accessible design make daily operation and maintenance easier.

Configuration Options

Standard Configuration

Standard Controller:
Standard configuration includes a practical controller for daily testing operation.
Standard Observation Window:
Observation window is available on selected models for convenient monitoring.

Optional Configuration

Data Logger:
Optional data logging is available for test data recording and management.
Communication Port:
Communication interface can be added for data transfer or remote integration.
Special Material:
Special chamber material can be selected based on test media or corrosion requirements.

Applications

Electronics & ElectricalSuitable for performance and reliability testing of electronic and electrical products.

Metal & Surface TreatmentApplicable to corrosion resistance, durability, or aging evaluation of metal parts and coatings.

AutomotiveUsed for environmental durability and quality verification of automotive components.

Plastics & RubberHelps evaluate the stability and environmental resistance of plastic and rubber materials.

Laboratory TestingWidely used in laboratories for research validation, quality control, and test development.

FAQs- Ozone Aging Test Chamber

How is the ozone concentration inside the test chamber controlled?

The equipment is equipped with an ozone generator and a concentration sensor; it automatically adjusts ozone production based on the set target concentration to maintain a stable level within the chamber.

What routine maintenance is required for the equipment?

Maintenance primarily involves regularly cleaning the interior of the chamber, inspecting the door seals for aging or air leaks, and periodically calibrating the ozone concentration sensor to ensure testing accuracy.

What safety precautions should be observed during operation?

Ozone is irritating to the human body, so the equipment must remain sealed during testing. Before opening the door to retrieve samples, ensure that the ozone has been purged from the equipment or has fully decomposed.
