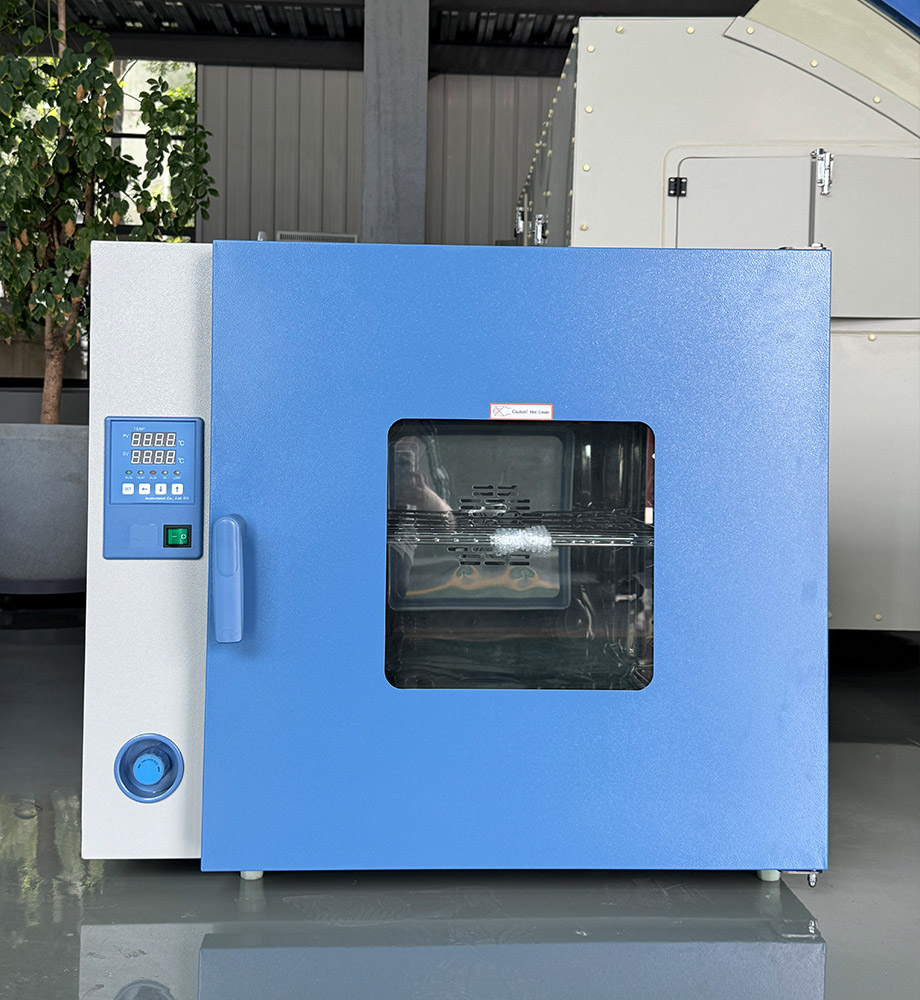

Natural Convection Oven

The natural convection oven relies on thermal air circulation without fans to deliver gentle and stable heating. It adopts stainless steel inner chamber and precise PID temperature controller, supporting adjustable temperature settings and over-temperature protection. This equipment works quietly with low air turbulence, making it ideal for drying, curing, thermal aging tests and glassware sterilization in laboratories and small production workshops. The natural convection oven features simple operation and easy maintenance. Its well-insulated structure reduces heat loss, ensuring reliable and repeatable heating results for delicate samples. It is a cost-effective thermal processing option for quality inspection and research tasks.

Key Specifications

Temperature Range: Configurable per model and test requirements.
Chamber Volume: Multiple sizes for different samples and capacities.
Controller: User-friendly system for stable and precise operation.
Power Supply: Standard or customized to local electrical standards.

WhatsApp Now

Product Details
Technical Specifications
Key Advantages
Applications
FAQs

Product Details

Internal view

Sample holder

Instrument 1

Technical Specifications

Forced-air Drying

Product Model	HF-HGZ055	HF-HGZ075	HF-HGZ100	HF-HGZ145	HF-HGZ225	HF-HGZ500
Interior Dimension W×D×H (mm)	400420345	400450450	450450500	450550550	500600750	700800900
Capacity (L)	55L	80L	100L	136L	225L	500L
Temp Range	RT+10℃ - 200℃ (MAX 300℃)
Display Resolution	0.1℃
Uniformity at 100℃	±2.0℃
Timing Range	1 - 5999mins
Electrical Requirement	AC220V, 50Hz

Natural Convection

Product Model	HF-HZL055	HF-HZL075	HF-HZL100	HF-HZL145	HF-HZL225	HF-HZL500
Interior Dimension W×D×H (mm)	400420345	400450450	450450500	450550550	500600750	700800900
Capacity (L)	55L	80L	100L	136L	225L	500L
Temp Range	RT+10℃ - 200℃ (MAX 300℃)
Display Resolution	0.1℃
Uniformity at 100℃	±2.0℃
Timing Range	1 - 5999mins
Electrical Requirement	AC220V, 50Hz

Product Features

Stable Performance
The equipment is designed for dependable operation and repeatable testing performance.
Accurate Temperature / Humidity Control
The control system helps maintain stable testing conditions for more accurate verification.
Durable Structure
The chamber structure is designed for long-term use in laboratory and industrial environments.
Easy Operation
User-friendly control and accessible design make daily operation and maintenance easier.
Support Customization
Standard models and customized solutions are both available for different project requirements.

Configuration Options

Standard Configuration

Standard Controller:
Standard configuration includes a practical controller for daily testing operation.
Standard Observation Window:
Observation window is available on selected models for convenient monitoring.
Standard Test Port:
Test port can be included for cable routing or sample monitoring when required.

Optional Configuration

Data Logger:
Optional data logging is available for test data recording and management.
Communication Port:
Communication interface can be added for data transfer or remote integration.
Customized Size:
Chamber dimensions can be customized for different sample sizes and capacities.
Non-standard Design:
Non-standard structure design is available for special testing applications.

Applications

Electronics & ElectricalSuitable for performance and reliability testing of electronic and electrical products.

Metal & Surface TreatmentApplicable to corrosion resistance, durability, or aging evaluation of metal parts and coatings.

AutomotiveUsed for environmental durability and quality verification of automotive components.

Plastics & RubberHelps evaluate the stability and environmental resistance of plastic and rubber materials.

Laboratory TestingWidely used in laboratories for research validation, quality control, and test development.

FAQs- Natural Convection Oven

Is the upper part of a natural convection drying oven hotter than the lower part?

Yes. Since warm air is lighter and rises while cool air is heavier and sinks, a temperature gradient—higher at the top and lower at the bottom—typically exists inside natural convection ovens. Therefore, when loading samples, it is recommended to place those requiring higher processing temperatures on the upper shelves and temperature-sensitive items on the lower shelves.

Can natural convection drying ovens be used for constant-temperature aging tests requiring extremely high precision?

It is generally not recommended. Because natural convection lacks a fan for forced air circulation to ensure uniformity, the temperature consistency across the chamber is usually inferior to that of forced-air drying ovens (temperature variations may range from ±2°C to ±5°C). If strict temperature uniformity is required (e.g., within ±2°C), a forced-air drying oven is recommended.

Do natural convection ovens generate noise during operation?

Virtually none. Since there are no internal fan motors running—only heating elements at work—operation is extremely quiet, making them ideal for laboratories that require a quiet environment.
