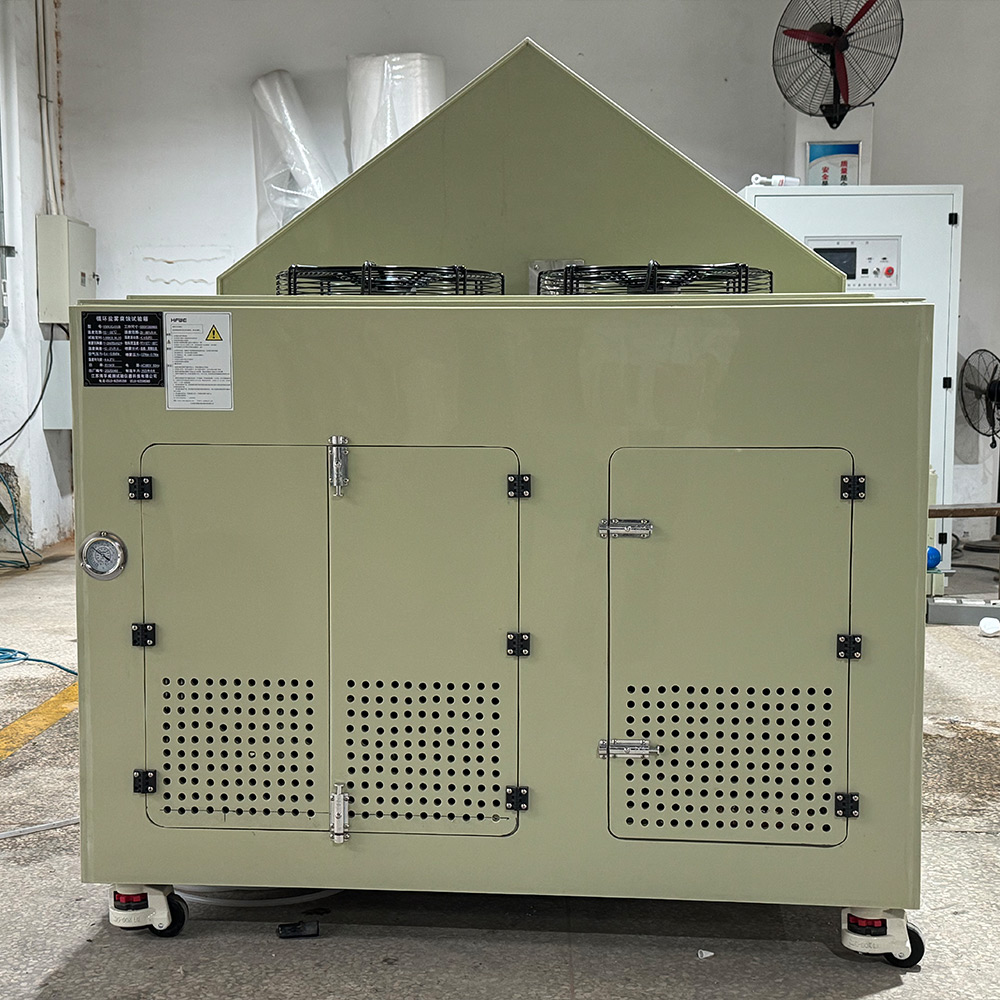

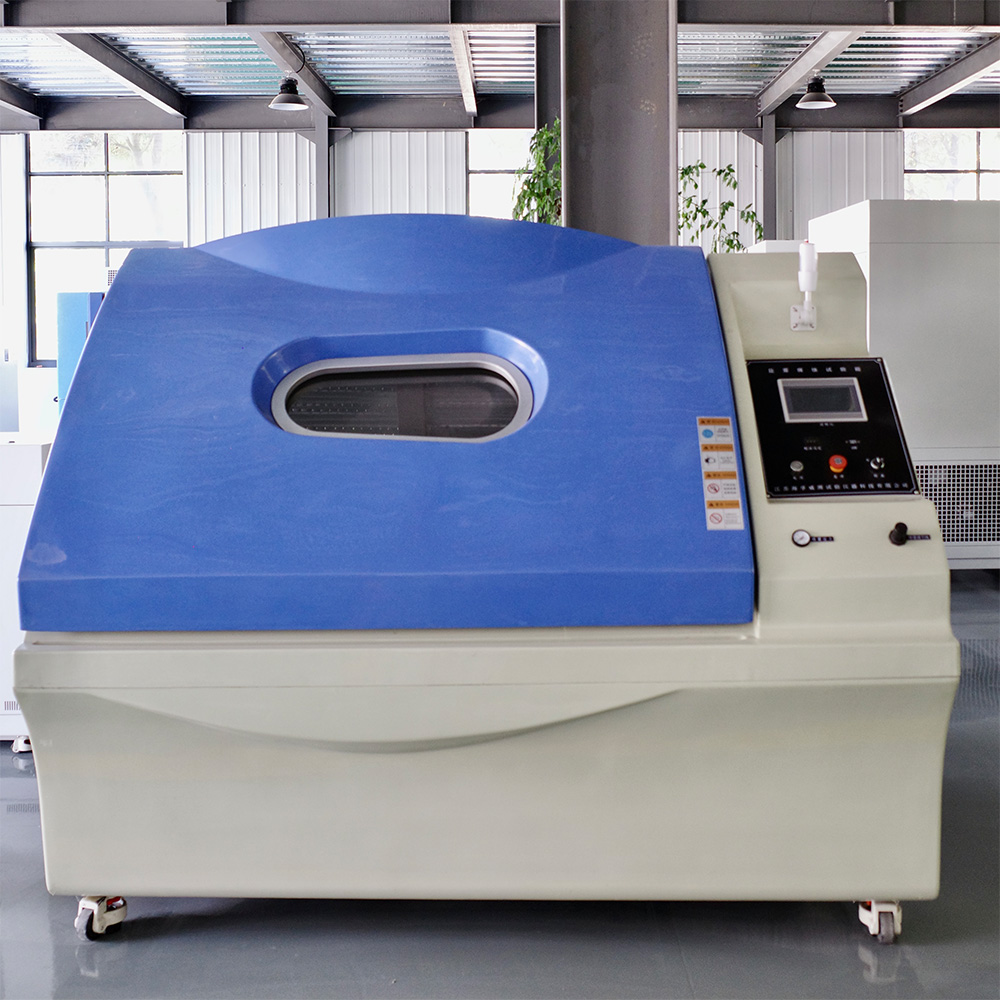

Cyclic Corrosion Test Chamber

Cyclic Corrosion Test Chamber

The Cyclic Corrosion Test (CCT) Chamber is designed to simulate real-world alternating climates, comprehensively evaluating the corrosion resistance of materials under multiple conditions including salt spray, drying, wetting, and condensation. The chamber automatically executes complex test cycles to accurately reproduce natural aging processes, providing reliable data for coating R&D and lifespan prediction.


Key Specifications

  • Temperature Range: Configurable per model and test requirements.

  • Chamber Volume: Multiple sizes for different samples and capacities.

  • Controller: User-friendly system for stable and precise operation.

  • Power Supply: Standard or customized to local electrical standards.

WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
  • Product Details
  • Technical Specifications
  • Key Advantages
  • Applications
  • FAQs

The cyclic corrosion test chamber from Haifuwei simulates real-world alternating climates in a single enclosure — automatically executing complex cycles of salt spray, drying, wetting, and condensation. Instead of a single fixed environment, this corrosion test chamber reproduces how weather actually attacks materials, so accelerated results correlate far better with outdoor service aging.


Every cyclic corrosion chamber holds temperature between ambient +5℃ and 55℃ (±2℃ deviation) and delivers a uniform 1–2 ml/80cm²·h spray, while programmable timing (1–999 S/M/H) chains each phase into repeatable sequences. The leak-proof PP inner cavity keeps long multi-phase programs running stably for days.


For coating developers and quality engineers, a cyclic corrosion test chamber from Haifuwei turns natural aging that takes months outdoors into days of testing — with six models from 150 L to 2000 L and full customization support.


Product Details

壁挂式喷雾箱体内部图

Interior View Of Wall-Mounted Spray Chamber

触摸屏仪表

Touchscreen Control Panel

传感器

Sensor

喷嘴

Nozzle

气缸(010以上型号配备)

Pneumatic Cylinder (Equipped On Models 010 And Above)

水入口

Water Inlet

塔式喷雾

Tower Sprayer

样品架

Sample Rack

Technical Specifications

ModelYWX/Q-150(B)YWX/Q-250(B)YWX/Q-750(B)YWX/Q-010(B)YWX/Q-016(B)YWX/Q-020(B)
Inner Chamber Size D×W×H450×600×400600×900×500750×1100×500850×1300×600850×1600×600900×2000×600
Overall Dimension D×W×H700×1070×1050870×1400×11501030×1680×12601160×2000×13901210×2200×14401260×2600×1490
Performance IndexTemperature RangeAmbient Temperature +5℃ ~ 55℃
Temperature Deviation≤±2℃
Temperature Fluctuation≤±0.5℃
Salt Spray Sedimentation Rate1~2ml/80cm²·h
Spray ModeContinuous or Cycle Mode Optional
Test Timer1~999 (S, M, H) Adjustable
Temperature & Humidity Operation Control SystemTemperature ControllerLED Digital P.I.D+S.S.R Microcomputer Integrated Controller or Color Touch Screen Controller
Temperature & Humidity SensorPlatinum Resistance PT100Ω/MV
Heating SystemIndependent System with Nickel-Chromium Alloy Electric Heater
Spray SystemTower Spray Device with Non-Crystallizing Nozzle (Finer mist and even distribution)
Spray Duration1~99 (S, M, H) with adjustable cycle
Salt Solution CollectionEquipped with standard funnel and graduated cylinder
Outer Cabinet MaterialImported anti-corrosion, high-strength & high-temperature resistant PP plate
Inner Chamber MaterialImported anti-corrosion, high-strength & high-temperature resistant PP plate
Cover MaterialImported anti-corrosion high-strength transparent PVC plate / Imported anti-corrosion high-temperature resistant PP plate
Other AccessoriesAll made of stainless steel, copper or anti-corrosion & high-temperature resistant materials
Standard Accessories1 set of round bar & V-type sample rack, 2 spray nozzles, funnel, 2 sets of graduated cylinders
Safety ProtectionLeakage, short circuit, overheat, water shortage, test completion, overcurrent protection / Controller power-off memory function
Power Supply VoltageAC220V±10% 50HZAC380V±10% 50HZ
Ambient Operating Temperature5℃ ~ +30℃, ≤85% RH
Optional Chamber Materials1. PP plastic plate; 2. FRP (fiberglass composite material); 3. 2507 anti-corrosion stainless steel plate

Product Features

  • Safety1.png

    Automated Multi-Phase Cycling

    This cyclic corrosion test chamber chains salt spray, drying, wetting, and condensation phases into programmable sequences that run unattended for days — no manual switching, no timing drift, just continuous accelerated weathering.
  • Temperature-Control.png

    Four-Environment Cycle Simulation

    Where a simple corrosion test chamber offers a single climate, this cyclic corrosion chamber alternates between salt deposition, dry-off, humid wetting, and condensation within one PP enclosure — reproducing the multi-stress conditions that cause real outdoor corrosion failures.
  • Durable-Structure.png

    Real-World Aging Correlation

    By mirroring natural wet-dry rhythms, cyclic results track field performance far better than static exposure, so a cyclic corrosion test chamber shortens lifespan-prediction studies from months of outdoor racks to days of accelerated testing.
  • Easy-Operation.png

    Flexible Cycle Programming

    Test timer (1–999 S/M/H), spray duration, and phase order are all adjustable on the LED or touch-screen controller, letting each cyclic corrosion chamber replicate specific standards or your own custom weathering profiles.
  • Support-Customization.png

    Leak-Proof Long-Run Cavity

    The high-quality PP inner tank resists acid and salt erosion and prevents leakage through extended multi-phase programs, keeping this corrosion test chamber stable during the long-running sequences that cyclic testing demands.

Configuration Options

Standard Configuration
  • Standard Controller:

    Standard configuration includes a practical controller for daily testing operation.

  • Standard Observation Window:

    Observation window is available on selected models for convenient monitoring.

Optional Configuration
  • Data Logger:

    Optional data logging is available for test data recording and management.

  • Communication Port:

    Communication interface can be added for data transfer or remote integration.

  • Special Material:

    Special chamber material can be selected based on test media or corrosion requirements.

  • Customized Size:

    Chamber dimensions can be customized for different sample sizes and capacities.

  • Non-standard Design:

    Non-standard structure design is available for special testing applications.

Applications


OEM Correlation Test ProgramsAutomotive and machinery OEMs run field-correlation studies in a cyclic corrosion test chamber, linking accelerated wet-dry-salt cycles to vehicle underbody and coating warranty data collected over years of real service.


Agricultural Machinery ComponentsTractors, harvesters, and implements face mud, fertilizer residue, and standing water; a cyclic corrosion chamber reproduces those alternating wet and dry corrosive attacks on frames, hoppers, and coated parts.


Power Transmission HardwareTowers, clamps, insulator fittings, and galvanized line hardware endure years of dew, rain, and pollutant cycles; a corrosion test chamber with cyclic programming compresses that aging into short qualification programs..


Traffic Infrastructure HardwareGuardrails, signposts, lighting poles, and noise-barrier fixings along salted highways are screened in a cyclic corrosion test chamber to verify multi-coat protection systems before road authorities approve suppliers.


General Metal Fabrication ShopsJob shops handling mixed orders use a cyclic corrosion chamber as a versatile QC resource, running different cycle programs for stainless assemblies, painted sheet, and plated components on the same floor space.

FAQs- Cyclic Corrosion Test Chamber

Q
What is the function of this corrosion test chamber?
A
This corrosion test chamber simulates alternating salt spray, humidity and drying conditions, to check how metal and coating samples resist cyclic corrosion in different environmental cycles.
Q
What samples can be tested in the cyclic corrosion chamber?
A
Our cyclic corrosion chamber supports auto parts, fasteners and coated components, reproducing variable corrosive environments to evaluate long-term anti-corrosion performance steadily.
Q
What material is the inner tank of the cyclic corrosion test chamber made of?
A
The inner cavity adopts high-quality PP material, which resists acid and salt erosion, prevents leakage and ensures stable long-time running during corrosion tests.
